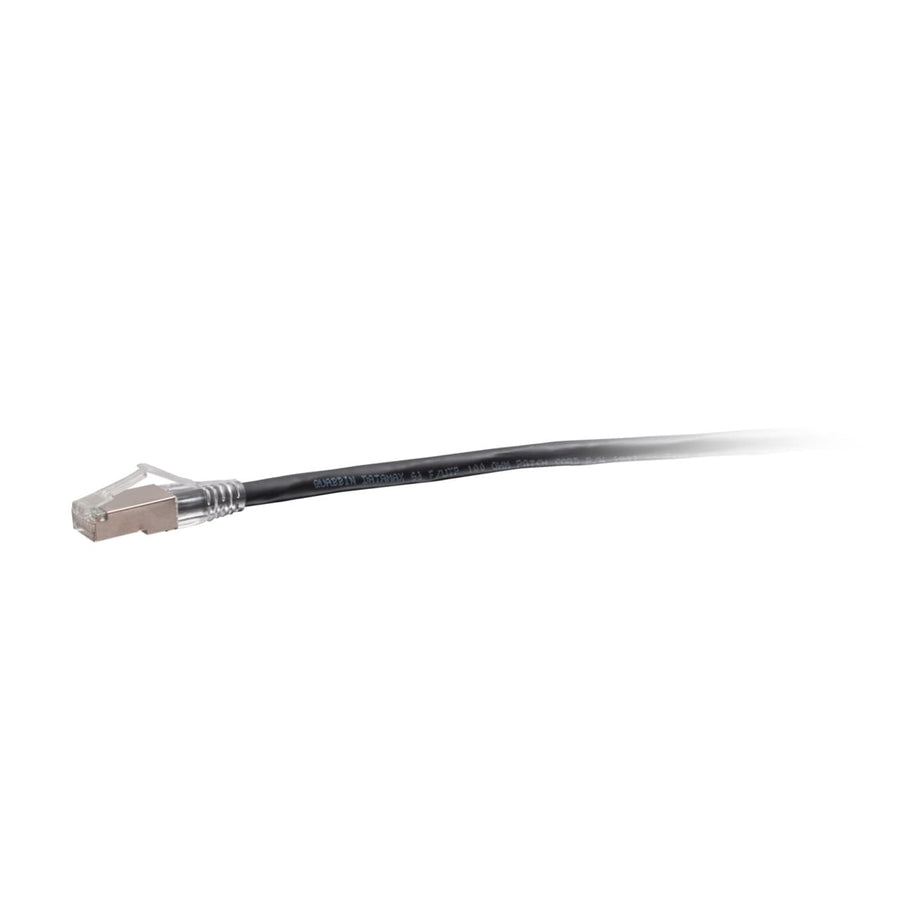

1ft (0.3m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Black
1ft (0.3m) TAA-compliant Cat6a STP snagless patch cable, shielded for 10GbE protection against EMI/RFI interference
The C2G43834 is a 1ft (0.3m) TAA-compliant F-Series Cat6a snagless shielded (STP) network cable designed for high-performance connectivity. This passive cable is specifically engineered for 10GBase-T ports and equipment, including network adapters, switches, routers, hubs, and patch panels. The shielded STP construction uses an aluminum foil shield and high-quality, made-in-the-USA copper stranded conductors to protect high-speed 10 Gigabit Ethernet connections from electromagnetic interference (EMI), RFI, and alien crosstalk. Featuring 50-micron gold-plated contacts to maintain signal integrity, this cable meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards. The snagless RJ45 connector design prevents the clips from being snapped off, making it suitable for environments with high insertion cycles. This CMR rated, riser-rated cable is built with a PVC jacket and operates within a temperature range of -4°F to 167°F (-20°C to 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 1 ft (0.3 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.04 lbs (0 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120438342 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
17 Inch Dual-Purpose In-Wall Enclosure
ENP1700NA$59.99
Questions about this part
Is the C2G43834 TAA compliant for government contracts?
Yes, this C2G43834 cable is TAA compliant and meets the requirements for use in United States government projects and facilities.
Will this Cat6a cable protect my 10GbE network from interference?
Yes, the shielded STP construction and aluminum foil shield are designed to reduce impedance and structural return loss while countering EMI and RFI.
What is the difference between this and a standard unshielded Cat6a cable?
Unlike unshielded cables, this F-Series SKU features an STP shield to protect against alien crosstalk and electromagnetic noise in high-speed environments.
What tools are needed for installation?
No specialized tools are required for this passive RJ45 patch cable, as it is a pre-terminated plug-and-play solution.
Does this cable support 10 Gigabit Ethernet?
Yes, this cable meets ANSI/TIA-568.2-D standards to support 10GBASE-T applications for high-bandwidth data, voice, and video distribution.
