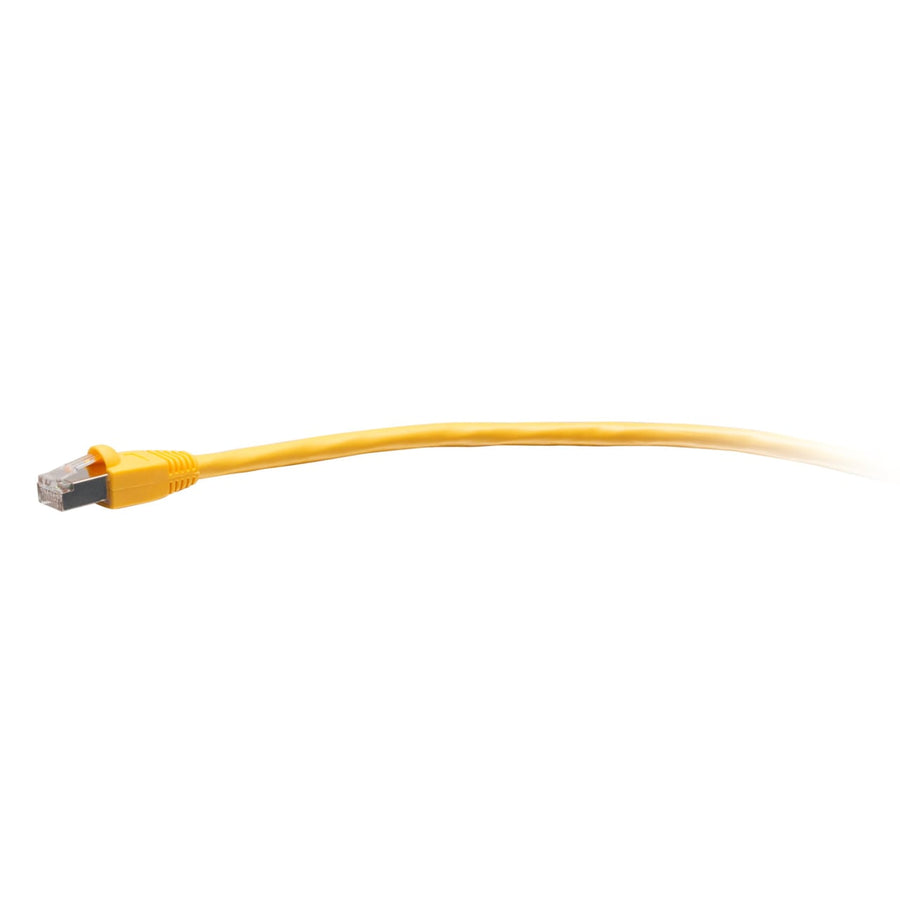

1ft (0.3m) TAA-Compliant F-Series Cat6 Snagless Shielded (STP) Network Cable - Yellow
1ft TAA-compliant Cat6 shielded STP patch cable, snagless design, yellow jacket
C2G43764 is a 1ft (0.3m) TAA-Compliant F-Series Cat6 Snagless Shielded (STP) Network Cable in yellow. Built to meet stringent TAA compliance requirements, this cable is approved for use in United States government projects and sensitive facilities. It utilizes high-quality, made in the USA copper cabling with aluminum foil shielding to counter EMI, RFI, and alien crosstalk, making it suitable for environments with high electromagnetic noise. The snagless RJ45 connector design features a protective boot to prevent clips from snapping off, which is beneficial for applications requiring high insertion cycles. The cable features 50-micron gold-plated contacts to maintain signal integrity and utilizes a 26 AWG stranded copper conductor. Rated as CMR (Riser) for jacket application, this passive cable supports 1000BASE-T (1 Gigabit Ethernet) applications and complies with ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards. This yellow cable can be used for network adapters, hubs, switches, and routers, and is available in a variety of other lengths up to 25ft and different color options.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 1 ft (0.3 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.04 lbs (0 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120437642 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
17 Inch Dual-Purpose In-Wall Enclosure
ENP1700NA$59.99
Questions about this part
Is the C2G43764 TAA compliant?
Yes, this cable is TAA compliant and approved for use in United States government projects and facilities.
What is the maximum speed supported by this Cat6 cable?
This Cat6 cable meets or exceeds ANSI/TIA-568.2-D standards and supports 1000BASE-T (1 Gigabit Ethernet) applications.
What type of shielding does the C2G43764 use?
It features a Shielded STP (Screened Twisted Pair) design with aluminum foil shielding to protect against EMI, RFI, and alien crosstalk.
What is the difference between the snagless design and standard cables?
The snagless RJ45 connector includes a design that protects the clips from being snapped off, making it ideal for applications with high insertion cycles.
Does this cable support riser installations?
Yes, this cable features a PVC jacket with a CMR (Riser) rating.
