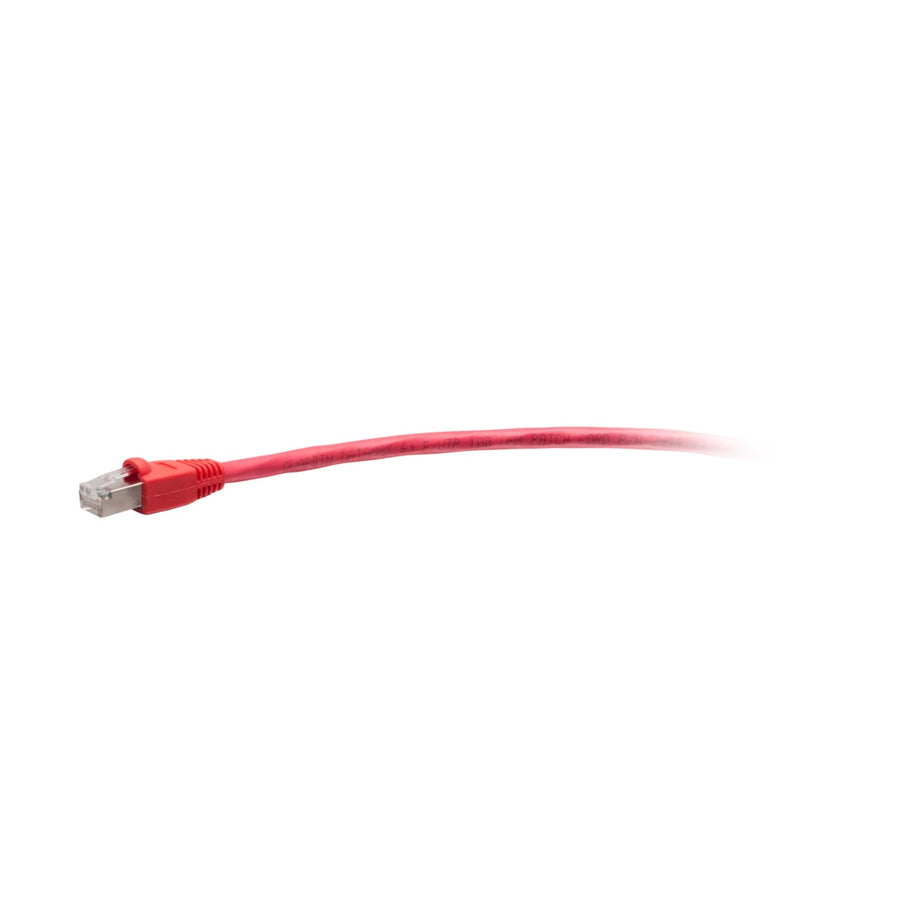

1ft (0.3m) TAA-Compliant F-Series Cat6 Snagless Shielded (STP) Network Cable - Red
1ft TAA-compliant Cat6 snagless shielded (STP) network cable in red, featuring 26 AWG stranded copper conductors
The C2G43750 is a 1ft (0.3 m) TAA-compliant Cat6 snagless shielded (STP) network cable designed for use in United States government projects and facilities. This red patch cable features 26 AWG stranded copper conductors and 50-micron gold-plated contacts to maintain signal integrity in demanding environments. The shielded STP construction, utilizing an aluminum foil shield, helps protect high-speed networks against EMI, RFI, and alien crosstalk. This cable is rated for Riser (CMR) applications and meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, supporting 1000BASE-T (1 Gigabit Ethernet) performance. The snagless RJ45 connector design protects the clips from breaking during high insertion cycles, making it a reliable choice for connecting hubs, switches, routers, and servers. It is compatible with various enclosures, such as the EN1400 14-inch Enclosure with Screw-On Cover, and is available in multiple colors and lengths via the F-Series line.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 1 ft (0.3 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.04 lbs (0 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120437505 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
17 Inch Dual-Purpose In-Wall Enclosure
ENP1700NA$59.99
Questions about this part
Is the C2G43750 TAA compliant?
Yes, this is a TAA-compliant F-Series cable, making it suitable for United States government projects and facilities.
Will this Cat6 cable work for Gigabit Ethernet?
Yes, this cable meets ANSI/TIA-568.2-D standards and is designed to support 1000BASE-T (1 Gigabit Ethernet) applications.
What is the difference between STP and UTP in this cable?
The C2G43750 features Shielded STP (Shielded Twisted Pair) construction with an aluminum foil shield to protect against EMI, RFI, and alien crosstalk, unlike unshielded alternatives.
What is the purpose of the snagless connector design?
The snagless design protects the RJ45 clips from being snapped off, which is particularly beneficial for applications with high insertion and removal cycles.
What is the maximum operating temperature for this red cable?
This cable is rated for operating temperatures ranging from -4°F to 167°F (-20°C to 75°C).
