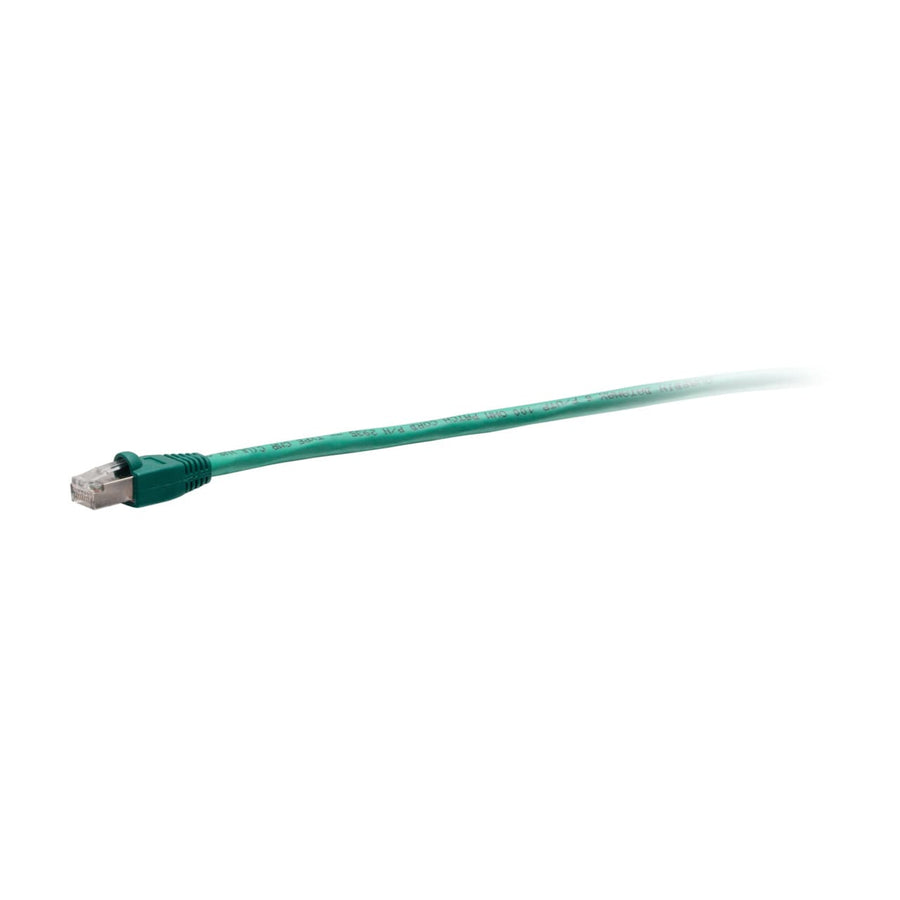

1ft (0.3m) TAA-Compliant F-Series Cat6 Snagless Shielded (STP) Network Cable - Green
1ft (0.3m) TAA-compliant Cat6 shielded STP network cable, green color, snagless design
The C2G43736 is a 1ft (0.3m) TAA-compliant Cat6 snagless shielded (STP) network cable finished in green. This passive, stranded copper cable is constructed with high-quality, made-in-the-USA raw cable to ensure consistent and reliable performance for high-speed networking. It features 50-micron gold-plated contacts to improve signal integrity and a snagless RJ45 connector design that protects the clips from being easily snapped off, making it an excellent choice for applications with high insertion cycles. This STP cable is designed to counter EMI, RFI, and alien crosstalk, protecting networks from noise and electromagnetic interference. The 0.26 in (6 mm) diameter cable is CMR rated and riser rated for various installation environments. It meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, supporting 1000BASE-T (1 Gigabit Ethernet) applications for routers, switches, hubs, and servers. This TAA-compliant cable is suitable for use in United States government projects and facilities. It is available with a lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 1 ft (0.3 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.04 lbs (0 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120437369 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
17 Inch Dual-Purpose In-Wall Enclosure
ENP1700NA$59.99
Questions about this part
Will the C2G43736 work for government projects?
Yes, this is a TAA-compliant cable that meets the requirements for use in United States government projects and facilities.
What is the maximum speed support for this Cat6 cable?
This Cat6 cable meets ANSI/TIA-568.2-D standards and is designed to support 1000BASE-T (1 Gigabit Ethernet) applications.
What is the shielding type for this C2G cable?
The C2G43736 is a Shielded STP (Shielded Twisted Pair) cable designed to protect the network from EMI, RFI, and alien crosstalk.
How does the snagless design benefit the installer?
The snagless RJ45 connector design protects the clips from being snapped off, which is ideal for environments with frequent insertion and removal cycles.
What is the warranty coverage for this part?
This C2G network cable is backed by a lifetime warranty for long-term reliability.
