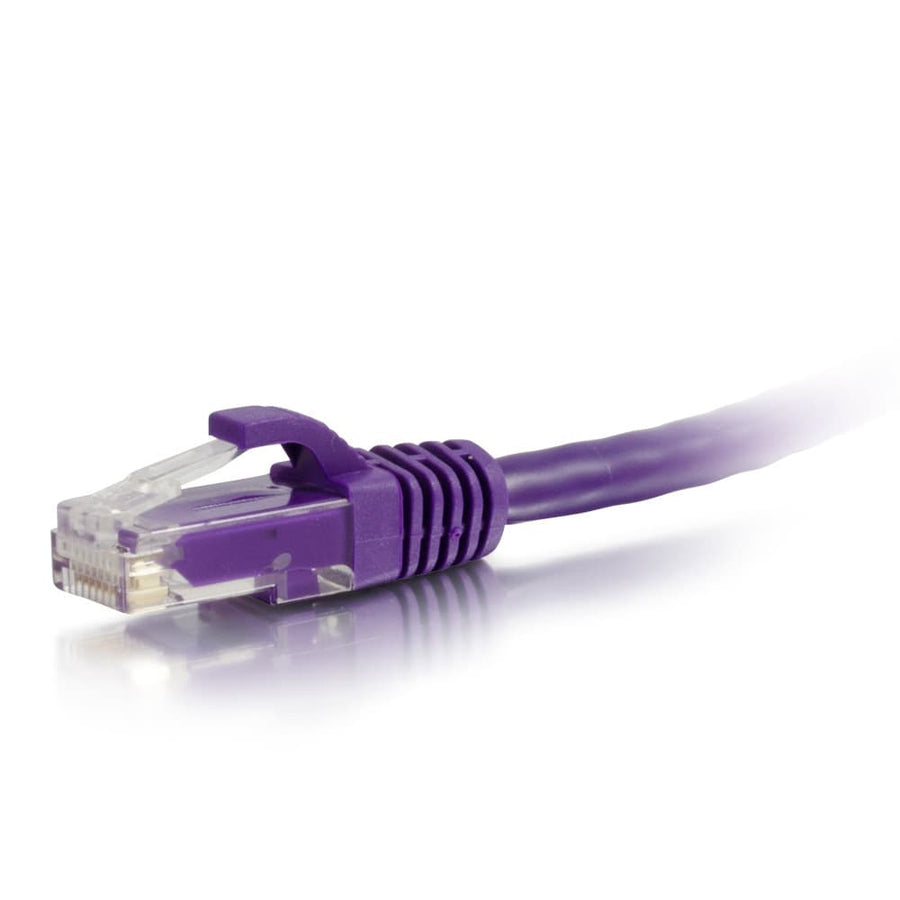

1ft (0.3m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Purple
1ft Cat6a Unshielded UTP patch cable in purple, featuring snagless boots for high-density switch applications
The C2G CG50817 is a 1ft (0.3m) Cat6a Snagless Unshielded UTP Ethernet network patch cable designed for high-density environments. This purple cable facilitates 10 Gigabit data transmission over 4-pair copper cabling, supporting connections up to 100 meters. It is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, ensuring reliable performance for 10GBase-T ports. The cable features 26AWG bare copper stranded conductors with HDPE insulation, providing improved alien crosstalk performance in demanding setups. The snagless PVC connector hood is specifically engineered to protect the connection in high-density switch applications, allowing for easier handling in crowded racks. This stranded UTP cable utilizes a 568B wiring scheme and is rated for temperatures up to 75°C. With its distinct purple color, it serves as an efficient tool for color-coding network infrastructure within switches, routers, and patch panels.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 1 ft (0.3 m) |
| Shield Type | UTP |
| Shipping Weight | 0.05 lbs (0 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120508175 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it

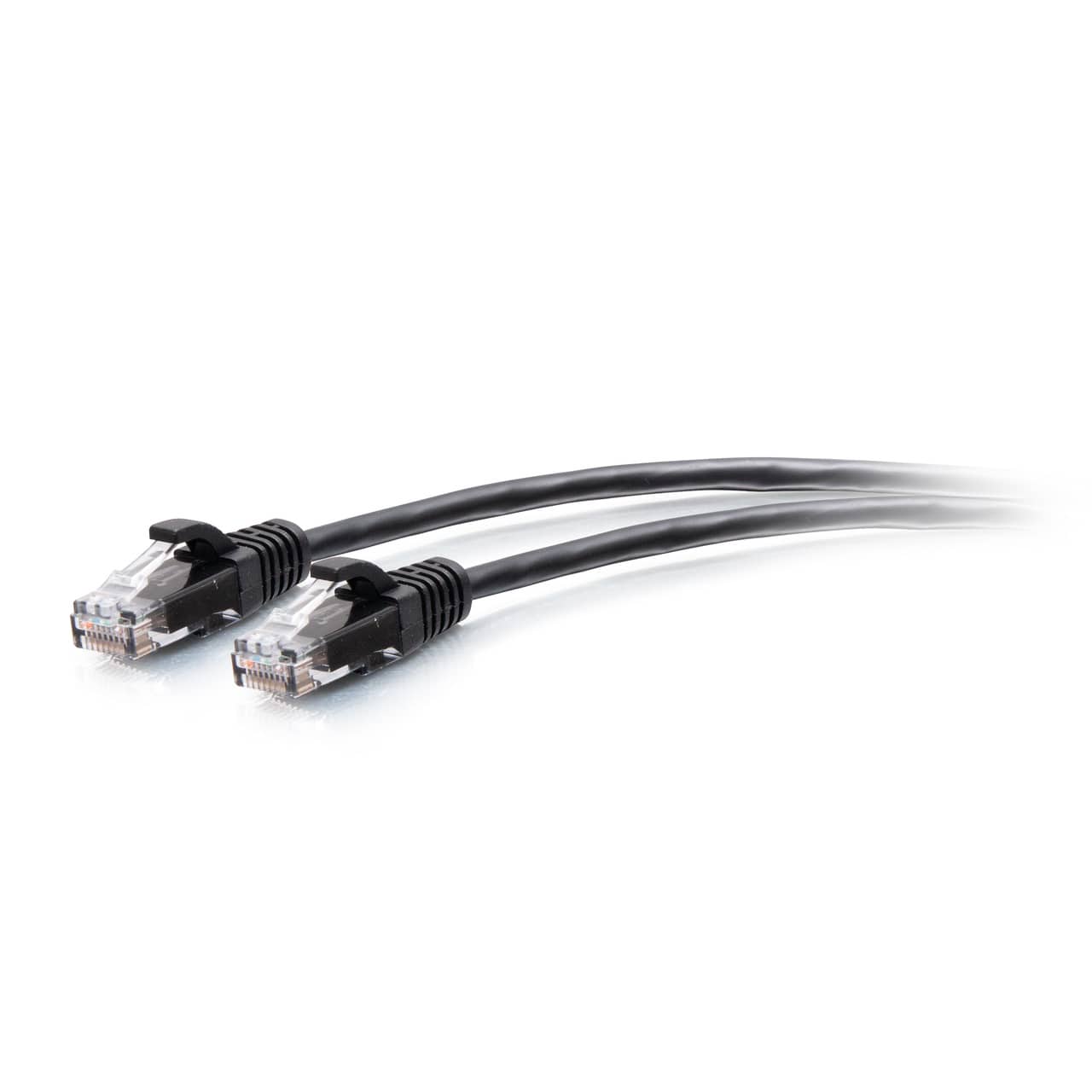

5ft (1.5m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable - Black
C2G30143$12.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
Questions about this part
Is the C2G CG50817 compatible with 10 Gigabit equipment?
Yes, this Cat6a patch cable is designed for use with 10GBase-T ports, including network adapters, switches, routers, and hubs.
What is the maximum distance for this Cat6a cable?
This cable enables 10 Gigabit data transmission over 4-pair copper cabling for connections up to 100 meters.
How does the snagless design benefit high-density installs?
The snagless PVC connector hood protects the jack from tension and eases installation in high-density switch applications.
What testing standards does this cable meet?
Every CG50817 cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements.
What is the wiring scheme for the CG50817?
This patch cable utilizes the 568B wiring scheme and features 26AWG stranded bare copper conductors.
