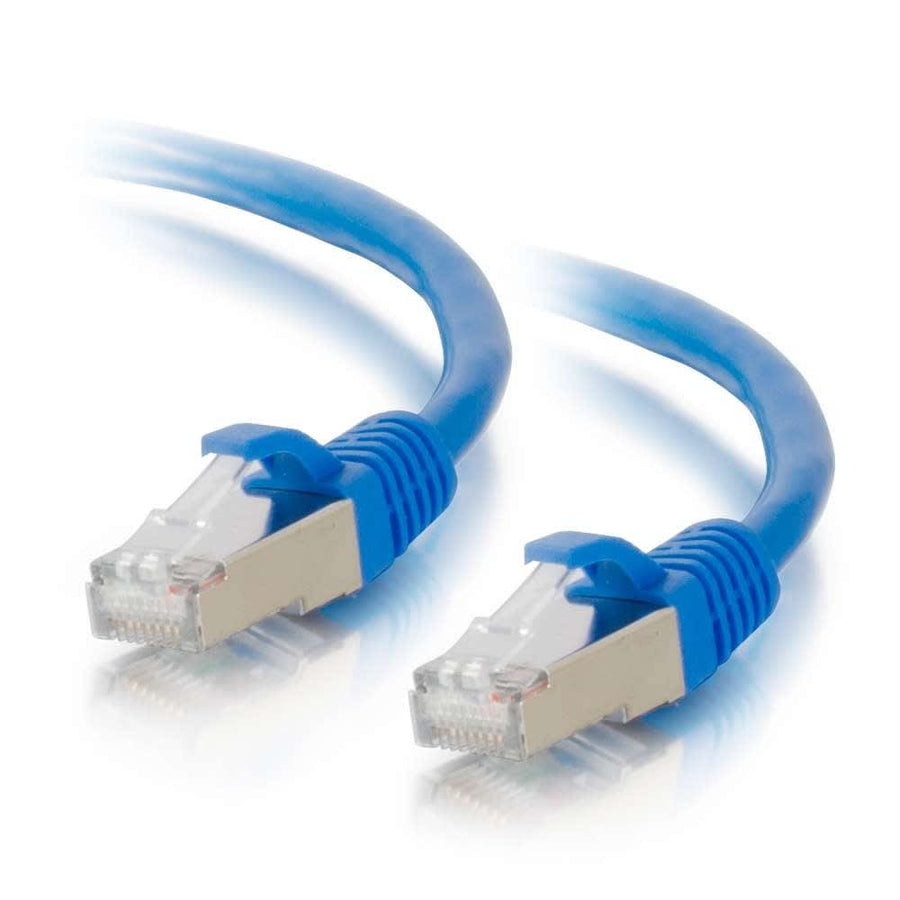

1ft (0.3m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Blue
1ft Blue Cat6a Snagless Shielded STP Ethernet Patch Cable for 10GBase-T high-speed networking applications
The C2G CG00672 is a 1ft (0.3m) Blue Cat6a Snagless Shielded STP Ethernet Patch Cable designed to protect high-speed 10GBase-T network connections from electromagnetic interference and noise. This cable is ideal for use with 10-gigabit equipment including network adapters, hubs, switches, routers, and patch panels. It is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements. The construction features 26AWG bare copper stranded conductors with FMPE (Foam Polyethylene) insulation. To minimize Near-End Crosstalk (NEXT), each individual pair is bonded together to maintain consistent twist-spacing up to the termination point. This STP (Shielded Twisted Pair) cable uses a 568B wiring scheme and features booted, snagless RJ-45 male connectors with PVC hoods. The cable has a 0.24 in (6.2 mm) diameter and is rated for an operating temperature range of -4°F to 176°F (-20°C to 80°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 1 ft (0.3 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.06 lbs (0 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120006725 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
1-Port Keystone Jack Surface Mount Box - White
CG03831$4.99
4-Port Surface Mount Box
WP3504WH$4.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANsmart TDR Cable Tester
CG39002$786.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
Will the C2G CG00672 work with my 10GBase-T equipment?
Yes, this Cat6a cable is specifically designed for 10GBase-T ports in hardware like switches, routers, and network adapters.
What is the wiring scheme for this patch cable?
The CG00672 uses the 568B wiring scheme for its RJ-45 male terminations.
Does this cable provide shielding against interference?
Yes, it is a Shielded STP (SSTP) cable designed to protect high-speed connections from electromagnetic interference.
What is the temperature rating for the CG00672?
This cable has an operating temperature range of -4°F to 176°F (-20°C to 80°C).
Is the CG00672 compliant with environmental standards?
The CG00672 is compliant with RoHS, REACH, and CE certifications.
