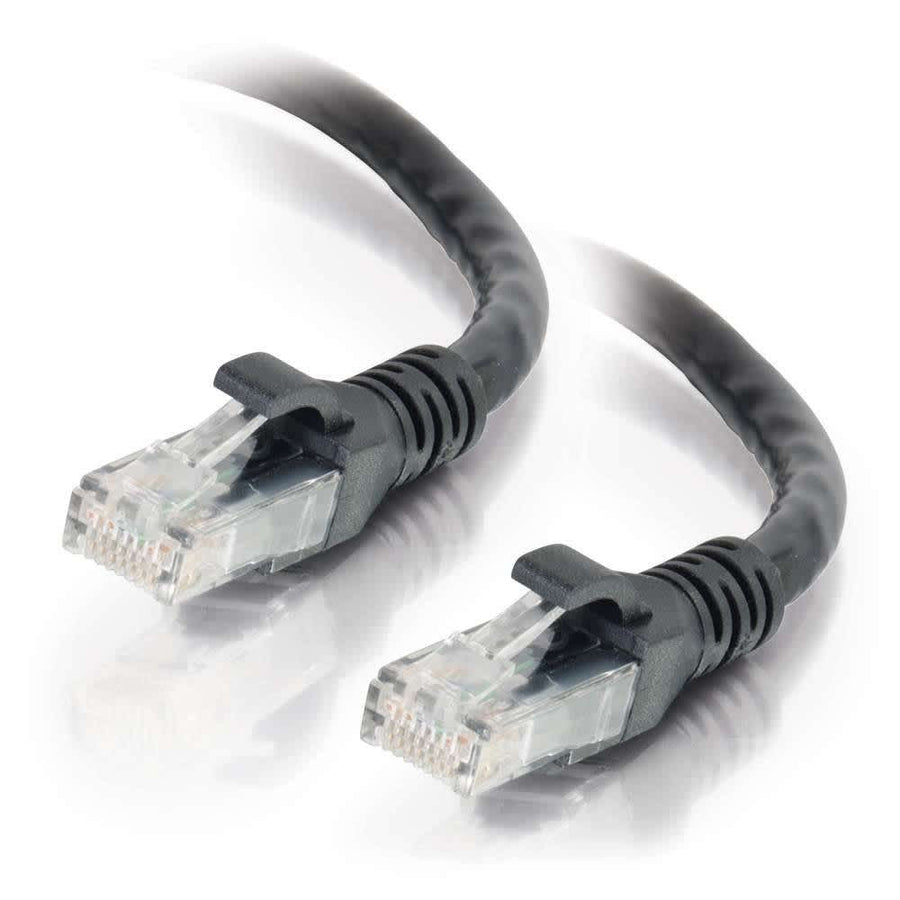

1ft (0.3m) Cat6 Snagless UTP Unshielded Ethernet Network Patch Cable - Black
1ft (0.3m) Cat6 UTP snagless patch cable in black, TAA compliant for high-bandwidth network distribution
The C2G CG10290 is a 1ft (0.3 m) Cat6 Unshielded Twisted Pair (UTP) Ethernet patch cable designed for high-bandwidth voice, data, and video distribution. This black snagless cable utilizes a shortened body plug design to minimize Near-End Crosstalk (NEXT) levels, ensuring stable performance for intensive network applications. Each cable features 24 AWG stranded copper conductors and is terminated with two RJ-45 male connectors. The molded, snag-free boots provide additional strain relief and prevent accidental snags during installation in high-density environments. This TAA compliant cable meets all TIA/ANSI standards and is suitable for projects requiring products manufactured in countries on the Trade Agreement Act list. The PVC jacket is standard/non-rated, and the cable is constructed with a T568B wiring scheme. This specific SKU is part of a larger series available in various lengths and colors, including blue and gray.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Diameter | 6_2mm |
| Cable Length | 1 ft (0.3 m) |
| Shield Type | UTP |
| Shipping Weight | 0.06 lbs (0 kg) |
| Wire Gauge | 24 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
All other specifications 13
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | Yes |
| UPC | 757120102908 |
| Certifications | NDAA 889Prop 65REACHRoHSTAATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Surface Mount Box
WP3506WH$6.99
Cable Management Strap - 12 Piece
TW12$25.20
8-Port Switch: 4-Port Network, 4-Port PoE+
DA8400WH$149.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
Surface Mount Box 1-Port in White
WP3501WH$1.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
32-Port Blank Keystone/Multimedia Patch Panel
CG03860$42.99
Questions about this part
Is the C2G CG10290 TAA compliant?
Yes, this cable is TAA compliant, making it suitable for environments that require products manufactured in Trade Agreement Act list countries.
What is the wiring scheme for this patch cable?
The CG10290 uses the T568B wiring scheme and features 24 AWG stranded copper conductors.
What other cable lengths are available in this series?
This series includes several options, including 3 ft, 5 ft, 10 ft, 14 ft, 20 ft, and 25 ft lengths.
What equipment is this cable compatible with?
This cable can be used with a variety of hardware, including the CG37199 24-Port Cat6 Patch Panel, WP3506WH 6-Port Surface Mount Box, and DA8400WH 8-Port Switch.
What is the termination type for the connectors?
The cable features RJ-45 male connectors with a snagless, booted design for added protection during installation.
