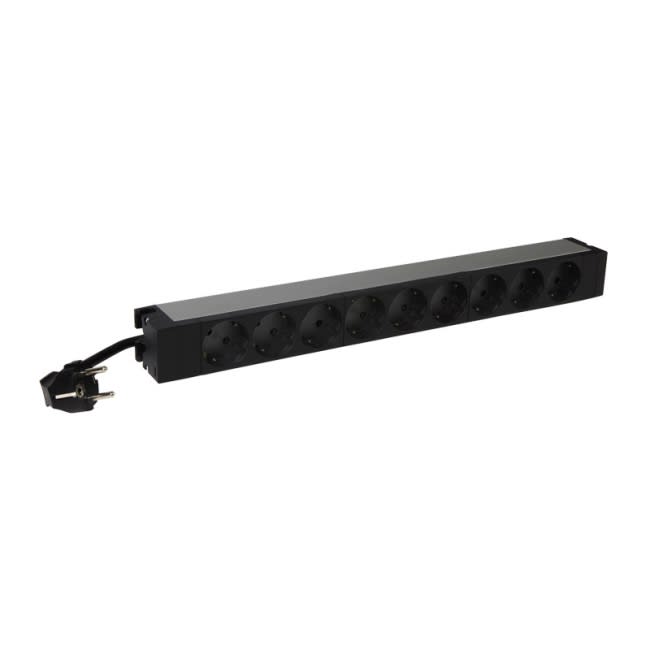

19 Inch PDU LCS³ - 1 U - 9 Outlets X 2P+E - German Standard
1U LCS³ power distribution unit with 9 German standard outlets and 16A French/German plug
The Middle Atlantic 646812 is a 1U power distribution unit designed for high-density environments like data centers, edge server rooms, and computer rooms. This LCS³ series PDU is constructed with an anodized aluminum chassis that provides a lightweight yet rigid foundation for critical power infrastructure. It features 9 German standard outlets that are inclined at 55° to facilitate easier cable management and plug accessibility. For international integration, the unit comes equipped with a 3m power cord featuring a 16 A 2P+E French/German plug, making it suitable for 230 VAC systems. This 1U device is highly versatile for different rack configurations; the included mounting clips allow for tool-less, forward-compatible mounting on center square holes found on Forward Rackrail, and the unit can also be installed vertically by reversing the brackets. It is CE certified and rated for 3700 W at 200-240 V.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 200-240 V |
| Amps | 16 Amp |
| Depth | 1.96 in (5 cm) |
| Height | 1.7 in (4.3 cm) |
| Operating Temperature | 23° - 104°F (-5° - 40°C) |
| Product Weight | 2.2 lbs (1 kg) |
| Rack Units | 1 RU |
| Storage Temperature | 23° to 158°F (-5 to 70°C) |
All other specifications 12
| Volts AC | 230 VAC |
| Watts | 3700 W |
| Width | 19 in (48.3 cm) |
| Available Internationally | Yes |
| Circuit Breaker | No |
| Color | Black and Silver |
| Multi-Mount | Yes |
| Number of Circuits | 1 |
| Outlet Count | 9 |
| Receptacle Type | German Standard |
| UPC | 3414970765321 |
| Certifications | CE |
Resources
Questions about this part
Can the 646812 be mounted vertically in a rack?
Yes, this PDU can be installed vertically by reversing the included mounting brackets.
What kind of plug is included with the 646812?
The unit includes a 3m power cord with a 16 A 2P+E French/German plug for 230 VAC use.
How do I mount this PDU to a Forward Rackrail?
The unit includes mounting clips that allow for tool-less, forward-compatible installation on the center square hole of a Forward Rackrail.
What is the total power capacity of this PDU?
This 1U PDU is rated for 3700 W with an AC voltage input of 200-240 V and 16 Amps.
Which document should I use for installation details?
You can refer to the Legrand LCS3 PDU Instruction Sheet for specific installation guidance.
