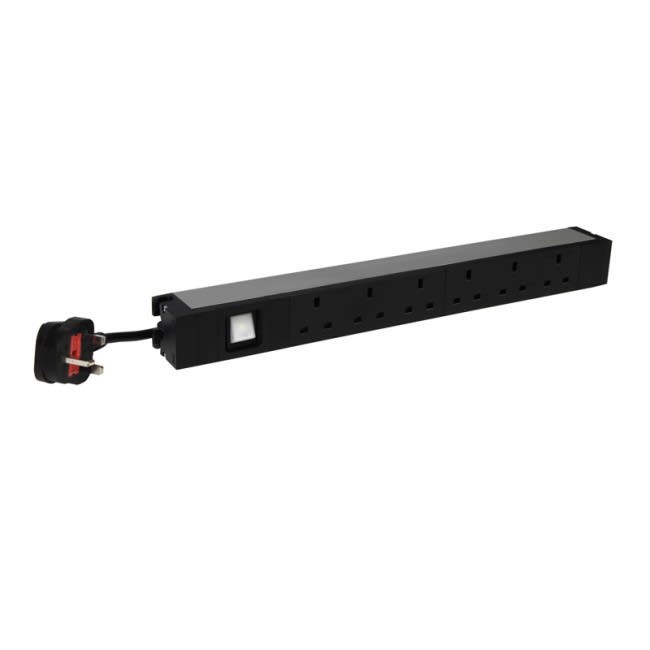

19 Inch PDU LCS³ - 1 U - 6 Outlets X 2P+E - British Standard - 1 Luminous Switch
1U 19-inch PDU featuring 6 British Standard outlets, 16A capacity, and an integrated luminous power switch
The Middle Atlantic 646824 is a 1U power distribution unit designed for integration within data centers, edge server rooms, and computer rooms. This LCS³ series PDU features a lightweight and rigid chassis constructed from anodized aluminum. It is engineered to facilitate easy maintenance and integration, featuring an illuminated power switch on the front panel for immediate status visibility. This unit is designed for 230 VAC environments with an input range of 200-240 V and a 16 Amp capacity, supporting up to 3700 W. For installation flexibility, the 646824 can be mounted horizontally in 19-inch racks or installed vertically by reversing the provided brackets. The unit is compatible with Forward Rackrail systems via tool-less mounting clips that utilize the center square hole. This specific SKU includes a 3m power cord equipped with a 13 A 2P+E British plug.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 200-240 V |
| Amps | 16 Amp |
| Depth | 1.96 in (5 cm) |
| Height | 1.7 in (4.3 cm) |
| Operating Temperature | 23° - 104°F (-5° - 40°C) |
| Product Weight | 2.1 lbs (1 kg) |
| Rack Units | 1 RU |
| Storage Temperature | 23° to 158°F (-5 to 70°C) |
All other specifications 12
| Volts AC | 230 VAC |
| Watts | 3700 W |
| Width | 19 in (48.3 cm) |
| Available Internationally | Yes |
| Circuit Breaker | No |
| Color | Black and Silver |
| Multi-Mount | Yes |
| Number of Circuits | 1 |
| Outlet Count | 6 |
| Receptacle Type | British Standard |
| UPC | 34149707654823414970765482 |
| Certifications | CE |
Resources
Questions about this part
Can the 646824 be mounted vertically in a rack?
Yes, this PDU can be installed vertically by reversing the mounting brackets.
What kind of plug and cord length does the 646824 come with?
The unit includes a 3m power cord terminated with a 13 A 2P+E British plug.
Is the 646824 compatible with Forward Rackrails?
Yes, it utilizes mounting clips for tool-less, forward-compatible mounting on the center square hole of a Forward Rackrail.
Does this PDU include a circuit breaker?
No, the 646824 does not include an internal circuit breaker.
Which document should I use for installation instructions?
You can refer to the Legrand LCS3 PDU Instruction Sheet (PDF) for specific installation guidance.
