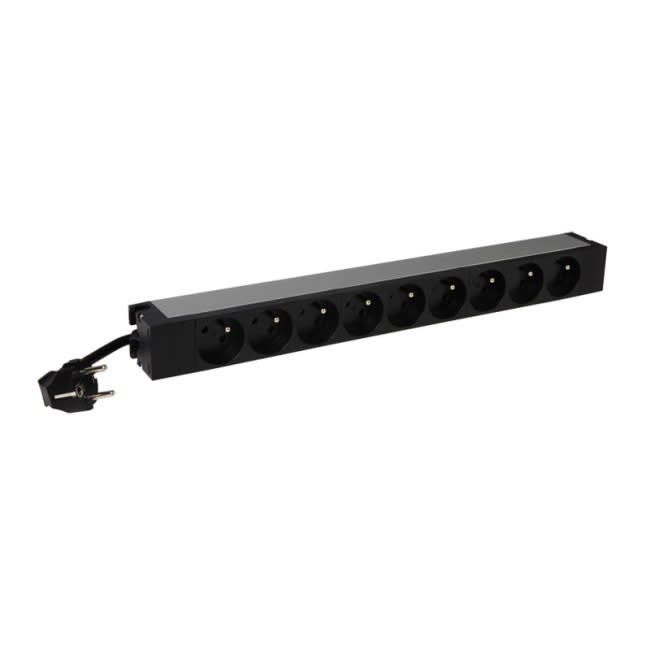

19 Inch PDU LCS³ - 1 U - 9 Outlets X 2P+E - French Standard
1U 19-inch power distribution unit with 9 French standard outlets and a 16 Amp 2P+E plug
The Middle Atlantic 646810 is a 19-inch LCS³ Power Distribution Unit designed for data centers, edge server rooms, and computer rooms. This 1U unit features an anodized aluminum chassis that is both lightweight and rigid. It provides power via 9 French standard outlets that are inclined at 55° to facilitate easier access and maintenance. This PDU operates at 230 VAC with an AC voltage input of 200-240 V, supporting 16 Amp circuits and a total of 3700 W. For installation, it includes mounting clips that allow for tool-less, forward-compatible mounting on the center square holes found on Forward Rackrails. The unit is versatile in its mounting, as it can also be installed vertically by reversing the included brackets. It is built for international use and comes with a 3m power cord featuring a 16 A 2P+E French/German plug.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 200-240 V |
| Amps | 16 Amp |
| Depth | 1.96 in (5 cm) |
| Height | 1.7 in (4.3 cm) |
| Operating Temperature | 23° - 104°F (-5° - 40°C) |
| Product Weight | 2.2 lbs (1 kg) |
| Rack Units | 1 RU |
| Storage Temperature | 23° to 158°F (-5 to 70°C) |
All other specifications 12
| Volts AC | 230 VAC |
| Watts | 3700 W |
| Width | 19 in (48.3 cm) |
| Available Internationally | Yes |
| Circuit Breaker | No |
| Color | Black and Silver |
| Multi-Mount | Yes |
| Number of Circuits | 1 |
| Outlet Count | 9 |
| Receptacle Type | French Standard |
| UPC | 3414970765284 |
| Certifications | CE |
Resources
Questions about this part
Will this PDU fit in my 19-inch server rack?
Yes, the 646810 is a standard 19-inch wide 1U unit designed specifically for installation in server cabinets and patch panels.
Can this PDU be mounted vertically in a cabinet?
Yes, the unit is multi-mount capable; you can install it vertically by reversing the mounting brackets.
What is the plug type for the power cord?
This PDU includes a 3m power cord equipped with a 16 A 2P+E French/German plug.
What tools are required for installation?
The included mounting clips allow for tool-less installation when using Forward Rackrails with center square holes.
Is this PDU compatible with Forward Rackrails?
Yes, it is forward compatible with Forward Rackrails through the use of its specialized mounting clips.
