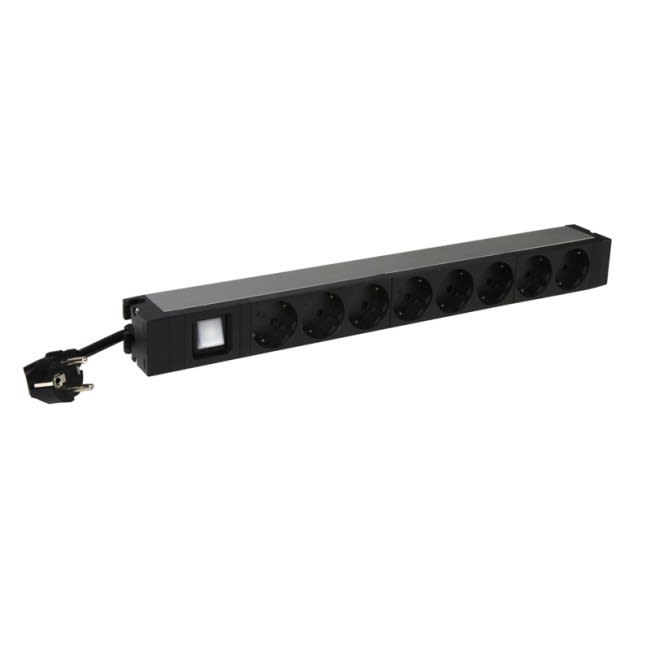

19 Inch PDU LCS³ - 1 U - 8 Outlets X 2P+E - German Standard - 1 Luminous Switch
1U 19-inch PDU featuring 8 German standard outlets, a 3m 16A power cord, and an illuminated power switch
The Middle Atlantic 646823 is a 1U power distribution unit designed for international data centers, edge server rooms, and computer rooms. Built with an anodized aluminum chassis, this PDU offers a lightweight yet rigid foundation for professional rack environments. This specific model provides 8 German standard outlets that are inclined at 55° to facilitate easier cable management and plug insertion. It features a 3m power cord equipped with a 16A 2P+E French/German plug and operates at 230 VAC (200-240 V) with a 3700 W capacity. For improved visibility in dark equipment cabinets, the front panel includes an illuminated power switch. This unit is highly versatile for different mounting requirements; it can be installed horizontally in server cabinets or vertically by reversing the included mounting brackets. This multi-mount capability supports tool-less, forward-compatible installation on center square holes found on Forward Rackrail systems.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 200-240 V |
| Amps | 16 Amp |
| Depth | 1.96 in (5 cm) |
| Height | 1.7 in (4.3 cm) |
| Operating Temperature | 23° - 104°F (-5° - 40°C) |
| Product Weight | 2.2 lbs (1 kg) |
| Rack Units | 1 RU |
| Storage Temperature | 23° to 158°F (-5 to 70°C) |
All other specifications 12
| Volts AC | 230 VAC |
| Watts | 3700 W |
| Width | 19 in (48.3 cm) |
| Available Internationally | Yes |
| Circuit Breaker | No |
| Color | Black and Silver |
| Multi-Mount | Yes |
| Number of Circuits | 1 |
| Outlet Count | 8 |
| Receptacle Type | German Standard |
| UPC | 3414970765468 |
| Certifications | CE |
Resources
Questions about this part
How is the 646823 mounted in a rack?
This 1U PDU supports multiple installation methods; it can be mounted horizontally in a standard 19-inch rack or installed vertically by reversing the included mounting brackets.
What kind of plug and cord does this PDU use?
The unit is supplied with a 3m power cord featuring a 16A 2P+E French/German plug.
Can I use this PDU in a Forward Rackrail system?
Yes, it includes mounting clips that allow for tool-less, forward-compatible mounting on the center square hole found on Forward Rackrail.
What is the electrical capacity of this PDU?
This PDU supports an AC voltage input of 200-240 V (230 VAC) with an amperage of 16 Amp, providing a total of 3700 W across its 8 outlets.
Does this PDU include a power switch?
Yes, the unit features an illuminated power switch located on the front panel for easy status monitoring.
