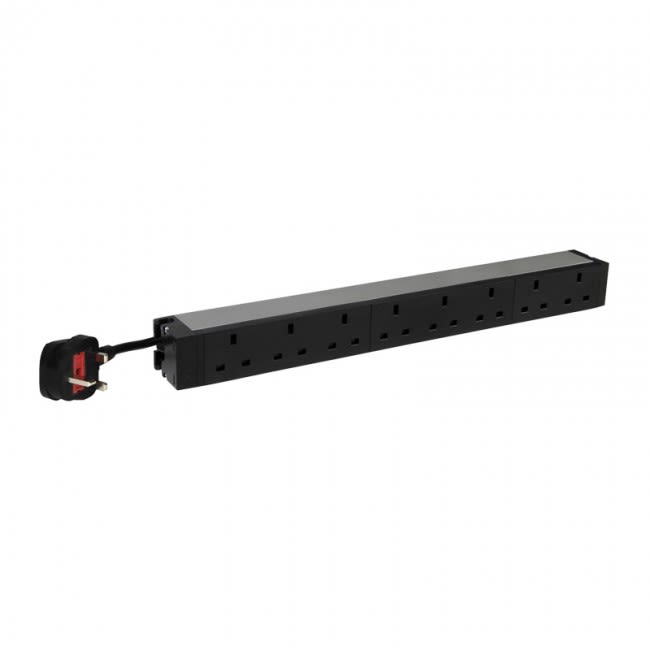

19 Inch PDU LCS³ - 1 U - 8 Outlets X 2P+E - British Standard
1U power distribution unit with 8 British Standard outlets, 16 Amp rating, and a 3m power cord
The Middle Atlantic 646813 is a 1U Legrand LCS³ Power Distribution Unit designed for critical power infrastructure in data centers, edge server rooms, and computer rooms. This unit features an anodized aluminum chassis that is both lightweight and rigid. It is engineered for easy integration and maintenance within server cabinets and patch panels. This specific SKU provides 8 British Standard outlets and is rated for 230 VAC with a 16 Amp capacity, delivering up to 3700 W. For installers requiring flexible installation options, the 646813 is multi-mount capable; the included mounting clips allow for tool-less, forward-compatible mounting on center square holes found on Forward Rackrail, and the unit can be installed vertically by reversing the brackets. The device includes a 9.8 ft (3 m) power cord equipped with a 13 A 2P+E British plug. This CE certified PDU is built to operate within a temperature range of 23° to 104°F (-5° to 40°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 200-240 V |
| Amps | 16 Amp |
| Cord Length | 9.8 ft (3 m) |
| Depth | 1.96 in (5 cm) |
| Height | 1.7 in (4.3 cm) |
| Operating Temperature | 23° - 104°F (-5° - 40°C) |
| Product Weight | 2.2 lbs (1 kg) |
| Rack Units | 1 RU |
All other specifications 13
| Storage Temperature | 23° to 158°F (-5 to 70°C) |
| Volts AC | 230 VAC |
| Watts | 3700 W |
| Width | 19 in (48.3 cm) |
| Available Internationally | Yes |
| Circuit Breaker | No |
| Color | Black and Silver |
| Multi-Mount | Yes |
| Number of Circuits | 1 |
| Outlet Count | 8 |
| Receptacle Type | British Standard |
| UPC | 3414970765345 |
| Certifications | CE |
Resources
Questions about this part
Will this PDU fit in a standard 19-inch rack?
Yes, the 646813 is a 19-inch wide unit designed for standard rack installation, including vertical mounting if the brackets are reversed.
What are the mounting requirements for Forward Rackrail?
The 646813 includes mounting clips that allow for tool-less, forward-compatible mounting on the center square holes of Forward Rackrail.
Can this PDU be installed vertically?
Yes, this unit supports multi-mount installation; you can install it vertically by reversing the mounting brackets.
Does this PDU include surge protection or a circuit breaker?
No, this specific LCS³ model is listed without an integrated circuit breaker or surge protection.
Which document should I use for the submittal?
For technical details and electrical ratings, refer to the Legrand LCS3 PDU A&E Specification Sheet.
