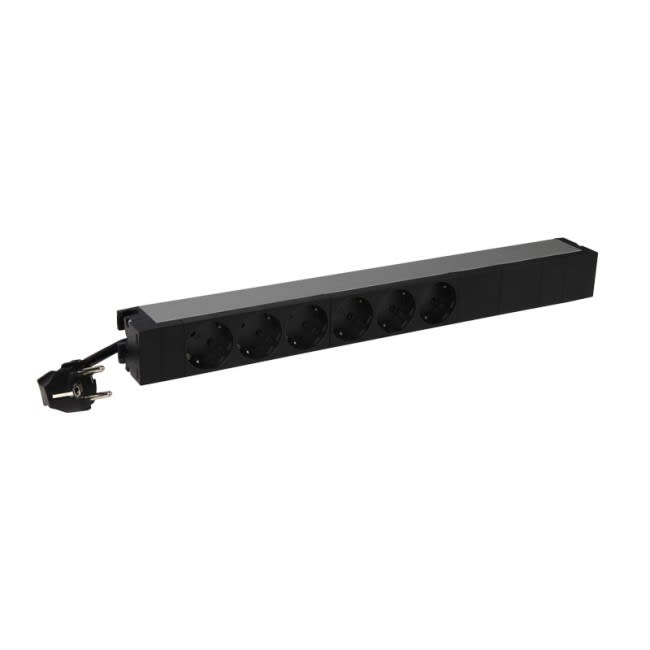

19 Inch PDU LCS³ - 1 U - 6 Outlets X 2P+E - German Standard
1U 19-inch PDU featuring 6 German standard outlets and a 3m 16A 2P+E power cord
The Middle Atlantic 646806 is a 1U power distribution unit designed for international data center and edge server environments. This LCS³ series PDU features an anodized aluminum chassis that provides a rigid, lightweight structure for rack mounting. It is equipped with 6 German standard outlets that are inclined at 55° to facilitate easier cable management and connection. The unit operates at 230 VAC with a 16 Amp capacity, supporting up to 3700 W across 1 circuit. For international deployment, the device includes a 3m power cord with a 16 A 2P+E French/German plug. This PDU offers versatile mounting options, including the ability to be installed vertically by reversing the included brackets. The inclusion of mounting clips allows for tool-less, forward-compatible mounting on center square holes found on Forward Rackrail systems.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 200-240 V |
| Amps | 16 Amp |
| Depth | 1.96 in (5 cm) |
| Height | 1.7 in (4.3 cm) |
| Operating Temperature | 23° - 104°F (-5° - 40°C) |
| Product Weight | 2.1 lbs (1 kg) |
| Rack Units | 1 RU |
| Storage Temperature | 23° to 158°F (-5 to 70°C) |
All other specifications 12
| Volts AC | 230 VAC |
| Watts | 3700 W |
| Width | 19 in (48.3 cm) |
| Available Internationally | Yes |
| Circuit Breaker | No |
| Color | Black and Silver |
| Multi-Mount | Yes |
| Number of Circuits | 1 |
| Outlet Count | 6 |
| Receptacle Type | German Standard |
| UPC | 3414970765222 |
| Certifications | CE |
Resources
Questions about this part
Will this PDU fit in a standard 19-inch rack?
Yes, the 646806 is a 19-inch wide unit designed for installation in server cabinets and patch panels.
How is the 646806 installed in a rack?
It features mounting clips for tool-less, forward-compatible mounting on Forward Rackrail center square holes and can be installed vertically by reversing the brackets.
What is the power input for this LCS³ PDU?
The unit utilizes a 3m power cord with a 16 A 2P+E French/German plug and operates on 230 VAC (200-240 V, 50/60 Hz).
What are the outlet specifications for the 646806?
This model provides 6 German standard outlets that are inclined at 55° to assist with cable integration and maintenance.
Which document should I use for technical submittals?
The Legrand LCS3 PDU A&E Specification Sheet is available in the resources for detailed technical documentation.
