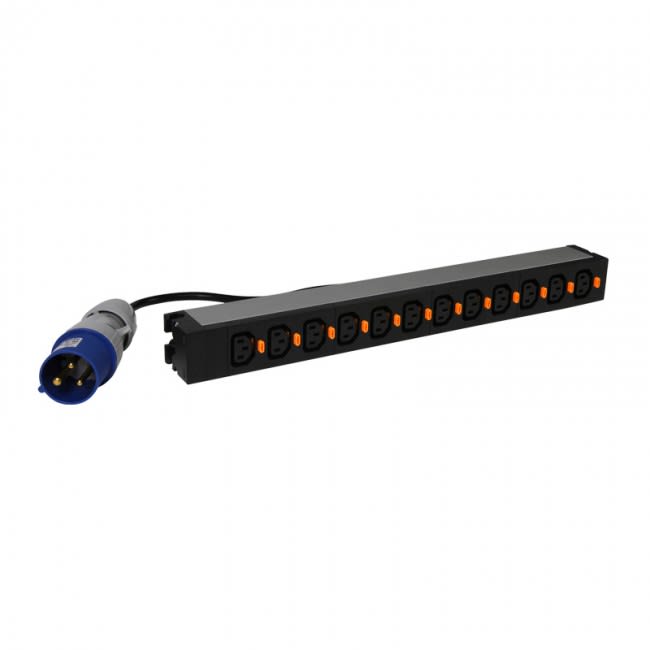

19 Inch PDU LCS³ - 1 U - 12 Outlets X C13 - IEC 60320 Standard
1U 19-inch PDU with 12 C13 IEC outlets, featuring the Cord Locking System for secure international power distribution
The Middle Atlantic 646815 is a 1U power distribution unit designed for professional data center, edge server room, and computer room environments. This 19-inch PDU is constructed from an anodized aluminum chassis, providing a lightweight yet rigid foundation for mission-critical hardware. It features 12 C13 IEC 60320 standard outlets equipped with the unique Legrand Cord Locking System, which prevents accidental disconnections caused by vibrations or human error. This unit operates on 230 VAC with a 16 Amp input and a 3m 3G 2.5mm power cord featuring an IEC 60309 2P+E connector. For installation flexibility, the PDU supports multi-mount configurations, allowing it to be installed vertically by reversing the included mounting brackets. It is also forward compatible for tool-less mounting on center square holes when used with a Forward Rackrail. This PDU is a CE certified solution for international power infrastructure requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 200-240 V |
| Amps | 16 Amp |
| Depth | 1.96 in (5 cm) |
| Height | 1.7 in (4.3 cm) |
| Operating Temperature | 23° - 104°F (-5° - 40°C) |
| Product Weight | 2.2 lbs (1 kg) |
| Rack Units | 1 RU |
| Storage Temperature | 23° to 158°F (-5 to 70°C) |
All other specifications 13
| Volts AC | 230 VAC |
| Watts | 3700 W |
| Width | 19 in (48.3 cm) |
| Available Internationally | Yes |
| Cable Type | 3G 2.5mm |
| Circuit Breaker | No |
| Color | Black and Silver |
| Multi-Mount | Yes |
| Number of Circuits | 1 |
| Outlet Count | 12 |
| Receptacle Type | IEC 60320 Standard |
| UPC | 3414970765383 |
| Certifications | CE |
Resources
Questions about this part
How does the LCS³ Cord Locking System work?
The Cord Locking System is designed to prevent accidental disconnections from equipment due to vibration or human error, ensuring continuous power delivery.
Can this PDU be mounted vertically in a rack?
Yes, this unit supports multi-mount installation; you can install it vertically by reversing the included mounting brackets.
What type of input plug does the power cord use?
The included 3m power cord utilizes an IEC 60309 2P+E connector for 230 VAC input.
Is this PDU compatible with Forward Rackrails?
Yes, the included mounting clips allow for tool-less, forward-compatible mounting on center square holes found on Forward Rackrail.
What are the electrical specifications for the 646815?
This PDU is rated for 16 Amp with a 230 VAC input, providing a total of 3700 W across 12 C13 outlets.
