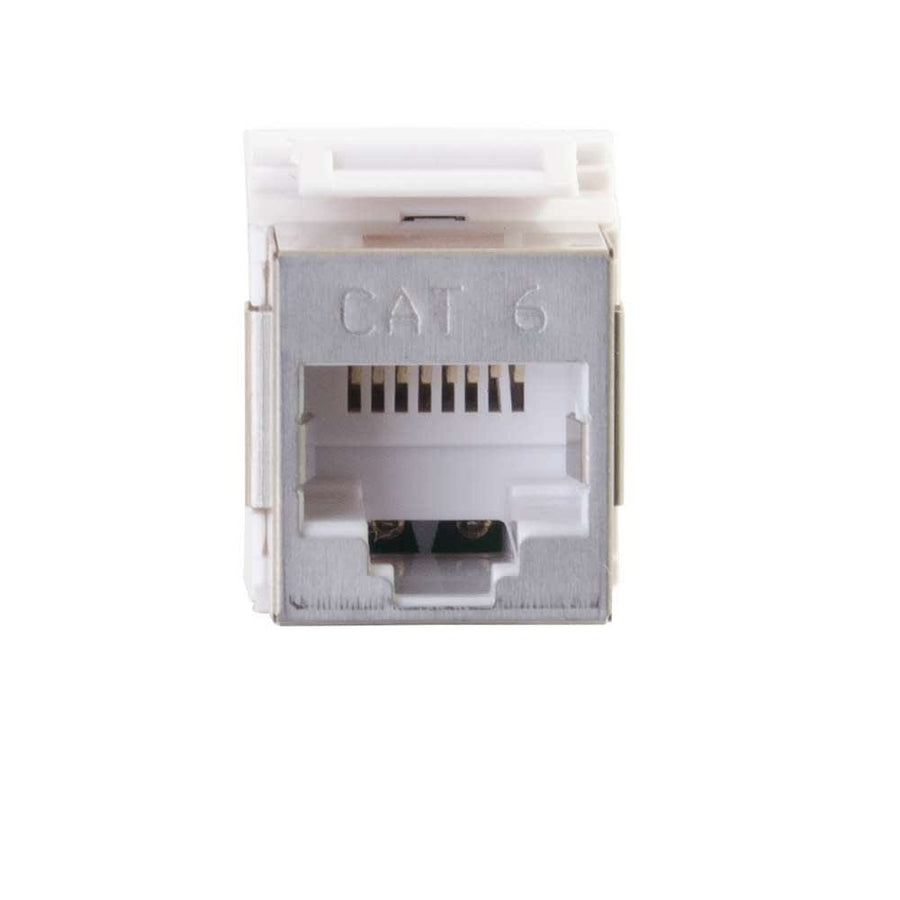

180° Cat6 RJ45 UTP Shielded Keystone Jack - Silver
Shielded Cat6 RJ45 keystone jack for 180° termination, meeting TIA/EIA 568B 2.1 and ISO/IEC 11801 standards
The C2G CG35212 is a 180° Cat6 RJ45 keystone jack engineered for high-performance network terminations. It meets or exceeds industry standards for Category 6/Class E as defined by TIA/EIA 568B 2.1 and ISO/IEC 11801. This panel-type jack features a 2-piece shielded cover that protects against external radiated noise and facilitates easier cable installation. The contacts include 50 micro-inch gold plating to ensure reliable signal transmission. Designed for use in any unloaded keystone wall plate, angled multimedia wall plate, or patch panel, this jack supports 110/KRONE IDC horizontal punchdown termination for 22-26 AWG UTP solid wire. It is built to balance signal transmission by managing insertion loss and crosstalk from 1 to 250 MHz and complies with FCC Part 68.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
| Cable Length | 1.2 in (3.1 cm) |
| Shipping Weight | 0.04 lbs (0 kg) |
| Cable Type | Cat6 |
| Color | Silver |
| Connector 1 | (1) Shielded RJ-45 Female(1) Shielded RJ-45 Female |
| Product Type | JackKeystone |
| TAA Compliant | No |
| UPC | 757120352129 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Warranty | Lifetime |
You'll need these with it
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Surface Mount Box
WP3506WH$6.99
Cable Management Strap - 12 Piece
TW12$25.20
8-Port Switch: 4-Port Network, 4-Port PoE+
DA8400WH$149.99
Surface Mount Box 1-Port in White
WP3501WH$1.99
32-Port Blank Keystone/Multimedia Patch Panel
CG03860$42.99
USB-C® to Ethernet Network Adapter Converter
CG29826$43.99
1-Gang 2-Port Wall Plate in White
WP3402WH$1.79
16-Port Blank Keystone/Multimedia Patch Panel
CG03858$29.99
Questions about this part
Will the CG35212 work with standard keystone wall plates?
Yes, this jack is compatible with any standard keystone wall plate, angled multimedia wall plate, or patch panel.
What wire types are compatible with this jack?
This keystone jack is designed for 110/KRONE IDC punchdown termination using 22-26 AWG UTP solid wire.
Is this jack compatible with C2G surface mount boxes?
No, this specific keystone jack is not compatible with C2G surface mount boxes.
What is the termination type for the CG35212?
The CG35212 utilizes a 110/KRONE IDC horizontal punchdown termination method.
Does this product meet TAA requirements?
No, the CG35212 is not TAA compliant.
