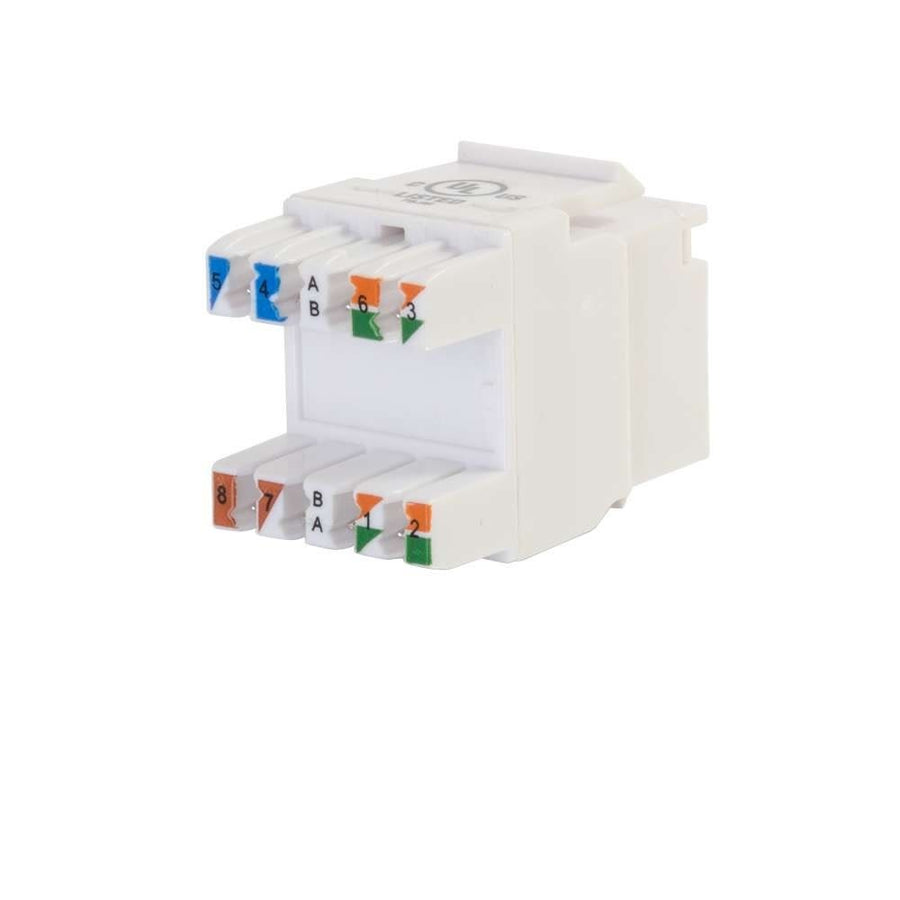

180° Cat6 RJ45 UTP Keystone Jack - White
White 180° Cat6 RJ45 UTP keystone jack for use in unloaded wall plates or patch panels
The C2G CG35210 is a white 180° Cat6 RJ45 UTP keystone jack designed for high-performance networking. This panel-type unshielded RJ45 (8P8C) jack is engineered to meet or exceed industry standards for Category 6/Class E according to TIA/EIA 568B 2.1 and ISO/IEC 11801 2nd edition. It features 110/KRONE IDC horizontal punchdown termination, specifically designed for 22-26 AWG UTP solid wire. This jack is built to balance signal transmission by managing insertion loss and crosstalk within a 1 to 250 MHz frequency range. It is compliant with FCC Part 68 and TIA-606. This component is intended for use in any unloaded keystone wall plate, standard keystone wall plate, or angled multimedia wall plate and patch panel. Note that this jack is not compatible with C2G surface mount boxes.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
| Cable Length | 1.2 in (3.1 cm) |
| Shipping Weight | 0.02 lbs (0 kg) |
| Cable Type | Cat6 |
| Color | White |
| Connector 1 | (1) RJ-45 Female(1) RJ-45 Female |
| Product Type | JackKeystone |
| Special Features | TIA-606 |
| TAA Compliant | No |
| UPC | 757120352105 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Warranty | Lifetime |
You'll need these with it
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Surface Mount Box
WP3506WH$6.99
Cable Management Strap - 12 Piece
TW12$25.20
8-Port Switch: 4-Port Network, 4-Port PoE+
DA8400WH$149.99
Surface Mount Box 1-Port in White
WP3501WH$1.99
32-Port Blank Keystone/Multimedia Patch Panel
CG03860$42.99
USB-C® to Ethernet Network Adapter Converter
CG29826$43.99
1-Gang 2-Port Wall Plate in White
WP3402WH$1.79
16-Port Blank Keystone/Multimedia Patch Panel
CG03858$29.99
Questions about this part
Will the C2G CG35210 fit in my existing wall plates?
Yes, it works with any unloaded keystone wall plate, standard keystone wall plate, or angled multimedia wall plate or patch panel. However, it is not compatible with C2G surface mount boxes.
What wire gauge is required for terminating the CG35210?
The jack is designed for 22-26 AWG UTP solid wire using a 110/KRONE IDC horizontal punchdown termination.
What is the frequency range for this Cat6 jack?
The CG35210 is designed to balance signal transmission for insertion loss and crosstalk from 1 to 250 MHz.
Is this keystone jack compatible with C2G patch panels?
Yes, this jack is compatible with several C2G products, including the CG37199 24-Port Cat6 110-Type Patch Panel and the CG03858 16-Port Blank Keystone/Multimedia Patch Panel.
What certifications does the C2G CG35210 hold?
This jack is compliant with FCC Part 68 and TIA-606, and carries RoHS, REACH, TSCA, NDAA 889, and Prop 65 certifications.
