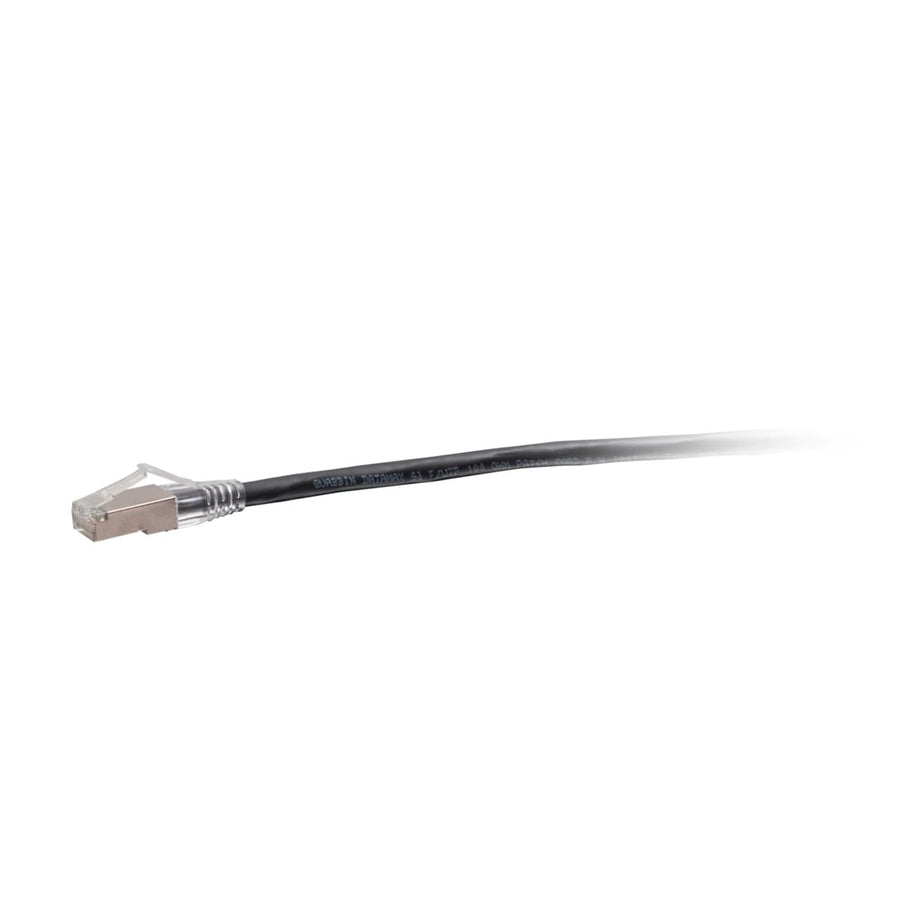

15ft (4.6m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Black
15ft Cat6a Snagless Shielded (STP) network cable, TAA-compliant, black, for 10GBASE-T high-speed applications
The C2G43846 is a 15ft (4.6m) TAA-compliant Cat6a Snagless Shielded (STP) network cable designed for high-bandwidth environments. This passive, shielded STP cable is engineered to protect 10GBASE-T 10 Gigabit Ethernet connections from electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk. It features 50-micron gold-plated contacts to maintain signal integrity in demanding network setups. Constructed with made-in-the-USA stranded copper conductors and a PVC jacket, this cable meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. The snagless RJ45 connector design protects the clips from damage during high-frequency insertion cycles, making it suitable for switches, routers, hubs, and patch panels. This CMR rated, riser-rated cable operates within a temperature range of -4° to 167°F (-20° to 75°C) and is TAA-compliant for use in United States government projects and facilities.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 15 ft (4.6 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.46 lbs (0.2 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120438465 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cable Management Strap - 12 Piece
TW12$25.20
20 Inch Enclosure with Hinged Door
EN2050$149.99
42 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP4250NA$189.99
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Surface Mount Box
WP3506WH$6.99
8-Port Switch: 4-Port Network, 4-Port PoE+
DA8400WH$149.99
USB-C® to Ethernet Network Adapter Converter
CG29826$43.99
16-Port Blank Keystone/Multimedia Patch Panel
CG03858$29.99
Surface Mount Box 1-Port in White
WP3501WH$1.99
1-Gang 2-Port Wall Plate in White
WP3402WH$1.79
Questions about this part
Is the C2G43846 TAA compliant for government projects?
Yes, this C2G43846 cable is TAA-compliant and meets the stringent requirements for United States government facilities and projects.
Will this Cat6a cable work for 10 Gigabit Ethernet?
Yes, this cable is specifically designed for 10GBASE-T high-speed network connections, such as those required by switches, routers, and network adapters.
What is the difference between the snagless design and standard RJ45?
The snagless design protects the RJ45 clips from being snapped off during insertion, which is beneficial in applications requiring high insertion cycles.
What is the temperature rating for this network cable?
This cable is rated for an operating temperature range of -4°F to 167°F (-20°C to 75°C).
Does this cable require specific shielding for EMI protection?
Yes, the C2G43846 uses Shielded STP (Shielded Twisted Pair) construction to counter electromagnetic interference (EMI) and alien crosstalk.
