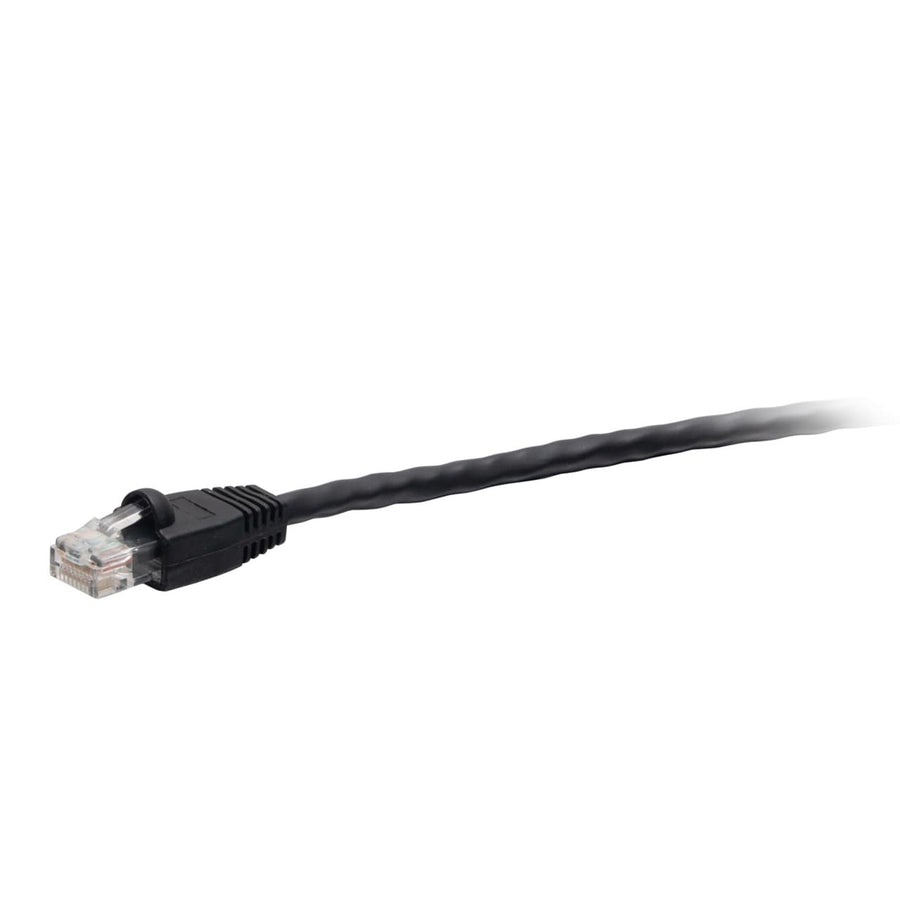

15ft (4.6m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Black
15ft TAA-compliant Cat6 UTP network cable with black snagless boots and 50-micron gold-plated contacts
The C2G43477 is a 15 ft (4.6 m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable designed for use in United States government projects and facilities. This black, unshielded twisted pair cable features 24 AWG copper conductors with stranded construction, meeting or exceeding ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. It is optimized for supporting 1000BASE-T (1 Gigabit Ethernet) applications, delivering an enhanced 600 MHz maximum frequency for superior performance compared to standard Cat6 cables. The snagless RJ-45 male connectors feature molded boots to protect the clips from snapping and provide strain relief during high-insertion-cycle applications. Each connector utilizes 50-micron gold-plated contacts to maintain signal integrity. Rated for riser applications (CMR), this cable is suitable for installation in various environments with operating temperatures ranging from -4° to 167°F (-20° to 75°C). This passive, TAA-compliant cable is suitable for connecting network adapters, hubs, switches, and routers.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 15 ft (4.6 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.38 lbs (0.2 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120434771 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Surface Mount Box
WP3506WH$6.99
8-Port Switch: 4-Port Network, 4-Port PoE+
DA8400WH$149.99
USB-C® to Ethernet Network Adapter Converter
CG29826$43.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
16-Port Blank Keystone/Multimedia Patch Panel
CG03858$29.99
Surface Mount Box 1-Port in White
WP3501WH$1.99
32-Port Blank Keystone/Multimedia Patch Panel
CG03860$42.99
1-Gang 2-Port Wall Plate in White
WP3402WH$1.79
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
Questions about this part
Is the C2G43477 TAA compliant for government projects?
Yes, this C2G43477 cable is TAA-compliant, making it approved for use in United States government facilities and projects.
What is the maximum frequency and data rate for this Cat6 cable?
This cable supports 1000BASE-T (1 Gigabit Ethernet) and features an enhanced 600 MHz maximum frequency for reliable performance.
What kind of installation rating does this cable have?
This is a CMR rated riser cable with a PVC jacket, suitable for various installation environments.
Will the connector clips break during frequent use?
The snagless design features molded boots that protect the RJ-45 clips from being snapped off during high-insertion-cycle applications.
What is the wire gauge and conductor material?
This cable uses 24 AWG stranded copper conductors and features 50-micron gold-plated contacts for signal integrity.
