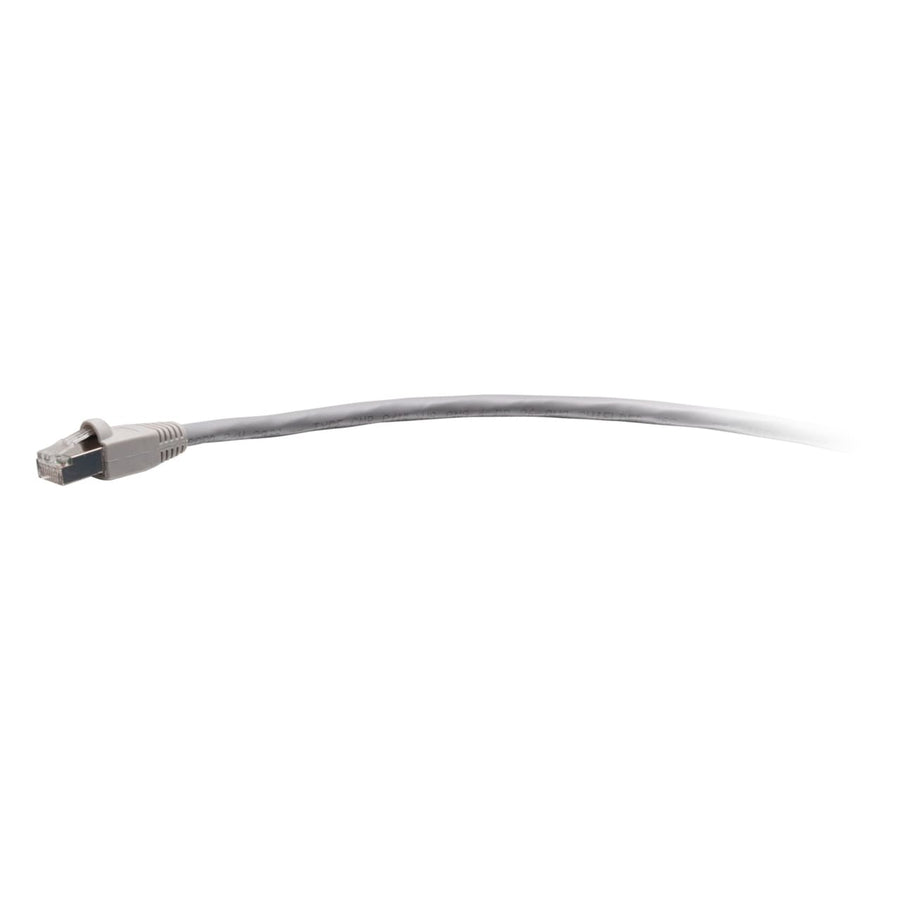

15ft (4.6m) TAA-Compliant F-Series Cat6 Snagless Shielded (STP) Network Cable - Gray
15ft TAA-compliant Cat6 STP patch cable with snagless connectors, gray PVC jacket, and 50-micron gold-plated contacts
The C2G43718 is a 15 ft (4.6 m) TAA-compliant Cat6 shielded (STP) network cable designed for mission-critical connectivity in environments with high electromagnetic interference (EMI) or radio frequency interference (RFI). This passive cable utilizes a snagless RJ-45 design to protect the connector clips from damage during high-frequency insertion cycles. Constructed with high-quality, made in the USA stranded copper conductors, it meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards, supporting applications including 1000BASE-T (1 Gigabit Ethernet). Each connector features 50-micron gold-plated contacts to ensure maximum signal integrity. The gray PVC jacket is CMR rated and riser-rated for versatile installation. This STP cable is ideal for connecting network adapters, hubs, switches, routers, and servers in sensitive government or commercial facilities requiring TAA-compliant components. It operates effectively within a temperature range of -4° - 167°F (-20° - 75°C) and utilizes a T568B wiring scheme.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 15 ft (4.6 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.38 lbs (0.2 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120437185 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
17 Inch Dual-Purpose In-Wall Enclosure
ENP1700NA$59.99
Questions about this part
Is this C2G43718 cable TAA compliant?
Yes, this is a TAA-compliant F-Series network cable, making it approved for use in United States government projects and facilities.
What is the maximum operating temperature for this Cat6 cable?
This cable is rated for operation within a temperature range of -4° - 167°F (-20° - 75°C).
Will this shielded cable work in high-interference environments?
Yes, the STP (Shielded Twisted Pair) construction with an aluminum foil shield is designed to counter EMI, RFI, and alien crosstalk.
What is the difference between this and a standard unshielded Cat6 cable?
The C2G43718 is an STP shielded cable, whereas standard unshielded cables lack the aluminum foil shield used to protect against external noise.
Which documents are available for submittals for this C2G cable?
Installers can refer to the TAA Compliant F-Series Cat6 Snagless Shielded Network Cable PDF for detailed technical documentation.
