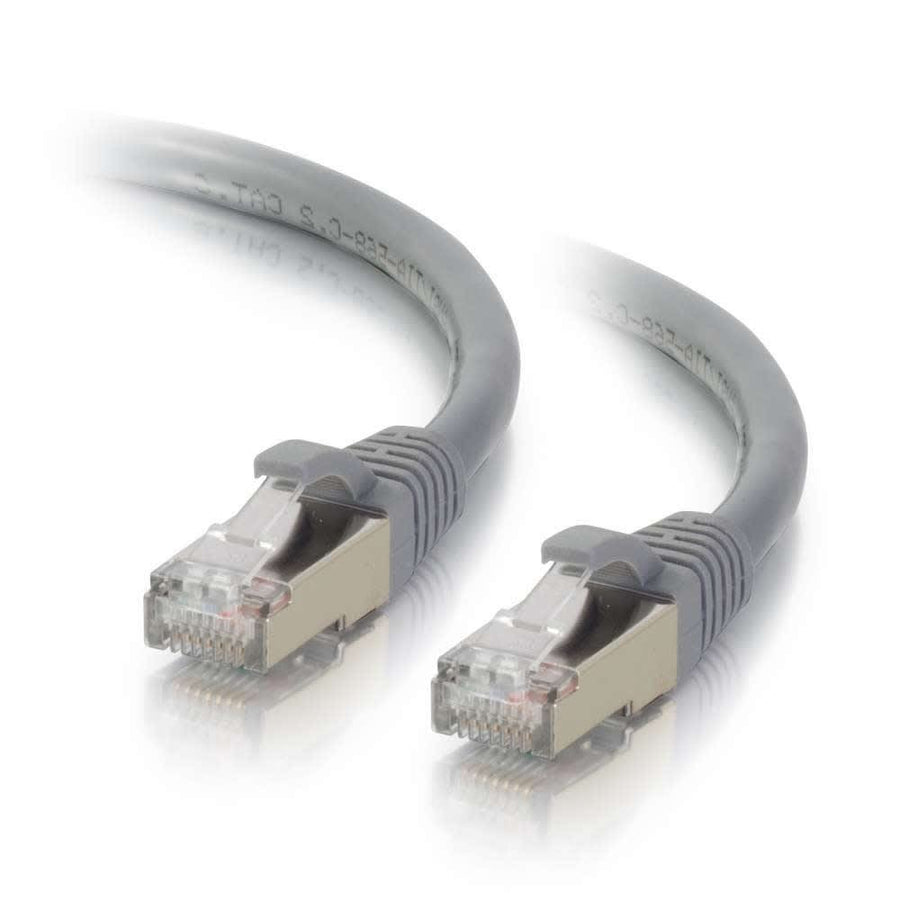

15ft (4.6m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Gray
15ft Cat6a shielded STP patch cable with snagless boots, gray PVC jacket, and stranded copper conductors
The C2G CG00650 is a 15 ft (4.6 m) Cat6a shielded STP Ethernet patch cable designed for high-speed 10GBase-T network environments. This cable is ideal for connecting network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. Because it utilizes shielded STP (SSTP) construction, it protects 10 Gigabit network connections from electromagnetic interference and noise. The cable features 26AWG stranded bare copper conductors and FMPE (Foam Polyethylene) insulation to help maintain twist-spacing throughout the line up to the termination point. This construction helps minimize Near-End Crosstalk (NEXT) and reduces impedance and structural return loss (SRL). Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements. The gray PVC jacket includes snagless, booted RJ-45 male connectors to prevent accidental disconnection during installation or maintenance. This series is available in various colors and lengths to support specific network color-coding requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 15 ft (4.6 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.46 lbs (0.2 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120006503 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
1-Port Keystone Jack Surface Mount Box - White
CG03831$4.99
4-Port Surface Mount Box
WP3504WH$4.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANsmart TDR Cable Tester
CG39002$786.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
What is the maximum data speed for the CG00650?
This Cat6a cable is designed for 10GBase-T equipment and high-speed 10 Gigabit network connections.
Will this cable work for shielding against interference?
Yes, the shielded STP (SSTP) design protects high-speed connections from noise and electromagnetic interference.
What is the bend radius for this Cat6a cable?
The minimum bend radius for the CG00650 is 1.95 in (49.6 mm).
Does this cable meet TIA standards?
Yes, this patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements.
What is the wiring scheme for this patch cable?
The CG00650 uses the 568B wiring scheme for its RJ-45 connections.
