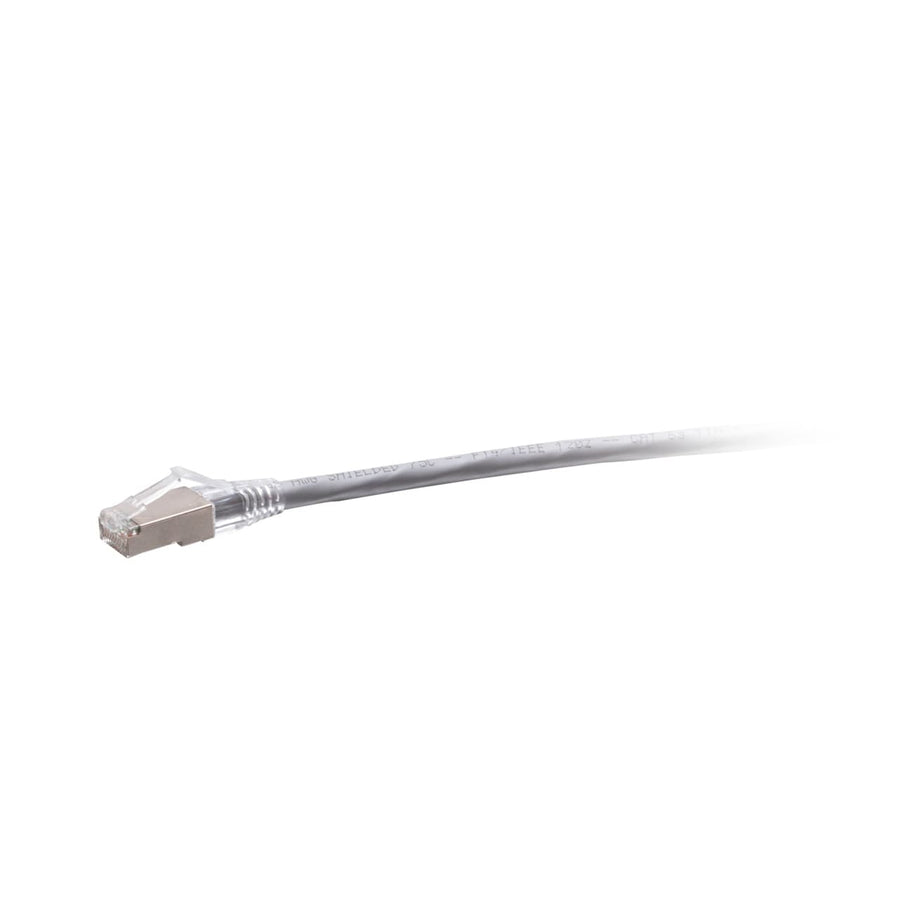

14ft (4.3m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Gray
14ft TAA-compliant Cat6a STP snagless patch cable for 10GBase-T equipment and high-speed network protection
The C2G43803 is a 14ft (4.3 m) TAA-compliant Cat6a Snagless Shielded (STP) Network Cable designed to meet the stringent requirements of United States government projects and facilities. This passive, gray patch cable is engineered for 10GBase-T ports and equipment, including network adapters, hubs, switches, routers, and patch panels. By utilizing an aluminum foil shield, this cable protects high-speed 10 Gigabit Ethernet connections from electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk. Constructed with premium, made in the USA copper stranded conductors, it is built to handle bandwidth-intensive applications while reducing both impedance and structural return loss (SRL). This cable features 50-micron gold-plated contacts and a snagless RJ-45 connector design to protect the clips from snapping during high insertion cycles. It is a CMR rated, riser-rated cable with a 0.24 in (6 mm) diameter, ensuring reliable performance in various environments. This product is TAA compliant and carries a lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 14 ft (4.3 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.15 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120438038 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
17 Inch Dual-Purpose In-Wall Enclosure
ENP1700NA$59.99
Questions about this part
Is the C2G43803 TAA compliant for government contracts?
Yes, this C2G43803 cable is TAA compliant and approved for use in United States government projects and facilities.
Will this Cat6a cable work for 10 Gigabit Ethernet?
Yes, this cable is designed for 10GBase-T ports and equipment, including switches, routers, and network adapters, providing protection against noise and interference.
What type of shielding does this cable provide?
This is a Shielded STP (STP) cable that uses aluminum foil shielding to counter EMI, RFI, and alien crosstalk for high-speed connections.
Does this cable support high-density patching?
Yes, the snagless RJ-45 connector design is specifically built to protect the clips from being snapped off during frequent insertion cycles.
What is the warranty for this C2G43803 cable?
This network cable is backed by a lifetime warranty for long-term reliability.
