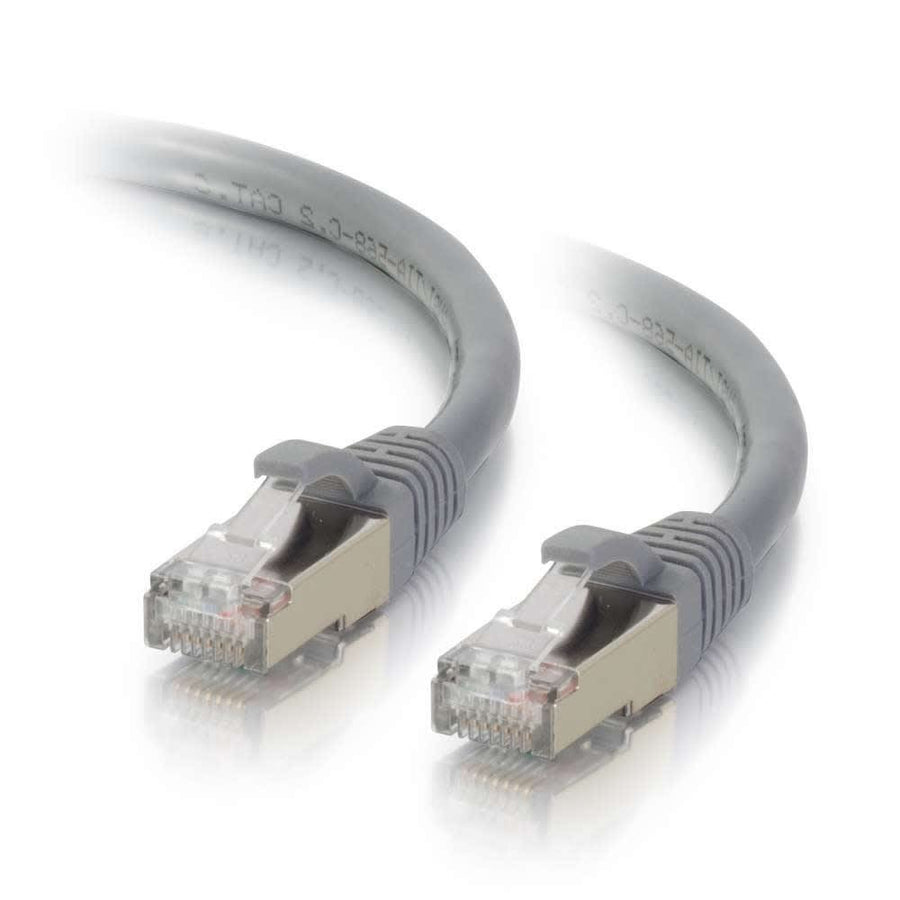

14ft (4.25m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Gray
14ft Cat6a Snagless Shielded STP Ethernet patch cable in Gray, designed for 10GBase-T high-speed networking applications
The C2G CG00649 is a 14 ft (4.3 m) Cat6a Snagless Shielded STP Ethernet network patch cable designed for high-performance 10GBase-T environments. This Gray cable is engineered to protect high-speed 10 Gigabit network connections from electromagnetic interference and noise through its shielded STP construction. It is an ideal solution for connecting network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. Each cable features stranded copper conductors with a 26AWG (7/0.16) gauge and FMPE (Foam Polyethylene) insulation to help maintain twist-spacing and reduce impedance and structural return loss (SRL) for bandwidth-intensive applications. The design minimizes Near-End Crosstalk (NEXT) levels and is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements. Featuring a snagless, booted connector design with PVC hoods, this cable is built for reliable, long-term deployment in professional voice, data, and video distribution systems.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 14 ft (4.3 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.39 lbs (0.2 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120006497 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
1-Port Keystone Jack Surface Mount Box - White
CG03831$4.99
4-Port Surface Mount Box
WP3504WH$4.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANsmart TDR Cable Tester
CG39002$786.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
Will this Cat6a cable support 10GbE speeds?
Yes, the CG00649 is specifically designed for 10GBase-T ports and equipment, supporting high-speed 10 Gigabit network connections.
What is the wiring scheme for the CG00649?
This patch cable uses the 568B wiring scheme for all connections.
Can I use this cable in a shielded network environment?
Yes, it features Shielded STP (SSTP) construction to protect against noise and electromagnetic interference in bandwidth-intensive applications.
What is the temperature range for this cable's operation?
The cable is rated for operating temperatures between -4°F to 176°F (-20°C to 80°C).
What other networking components is this compatible with?
It is compatible with various accessories like the CG29746 USB-C to Ethernet Adapter and the WP48RM 48-Port Keystone Rack Mount Patch Panel.
