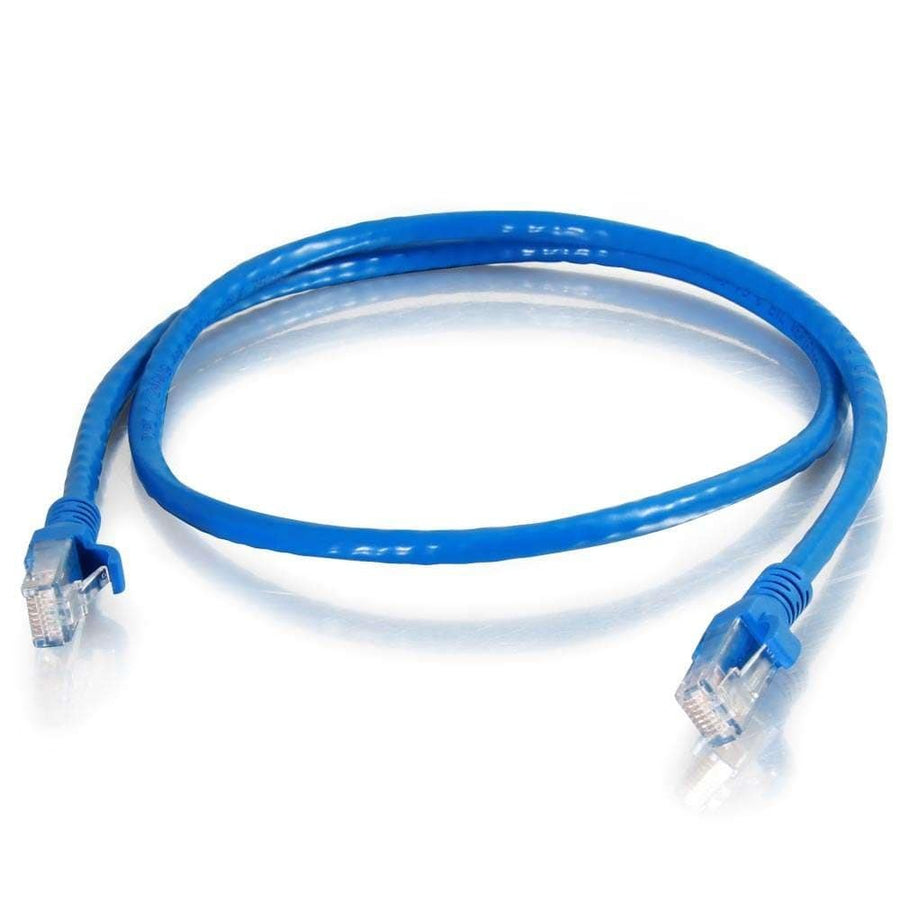

14ft (4.25m) Cat6 Snagless UTP Unshielded Ethernet Network Patch Cable - Blue
Blue 14ft Cat6 UTP patch cable with snagless boots, TAA compliant for secure government and enterprise environments
The C2G CG10317 is a 14 ft (4.3 m) Cat6 Unshielded Twisted Pair (UTP) patch cable designed for high-bandwidth voice, data, and video distribution. This cable is built with copper stranded conductors and features a 24 AWG wire gauge to support demanding network applications. The design utilizes a shortened body plug to minimize Near-End Crosstalk (NEXT) levels, ensuring stable performance. To protect the connection during installation and deployment, the RJ-45 male connectors are equipped with snagless, booted protection that provides additional strain relief and prevents accidental dislodgement. This SKU is TAA compliant, making it suitable for projects requiring products manufactured in countries on the Trade Agreement Act list. It also meets NDAA 889, RoHS, and REACH standards. This blue cable is part of a larger series of Cat6 TAA Snagless Patch Cables available in various lengths and colors to assist with network color-coding.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 14 ft (4.3 m) |
| Shield Type | UTP |
| Shipping Weight | 0.4 lbs (0.2 kg) |
| Wire Gauge | 24 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
All other specifications 13
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | Yes |
| UPC | 757120103172 |
| Certifications | NDAA 889Prop 65REACHRoHSTAATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Trio Combo Module with Cat6 Data
CO1166$119.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
USB-C® to Ethernet Network Adapter Converter
CG29826$43.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
12-Port Blank Keystone/Multimedia Patch Panel
CG03857$25.99
Surface Mount Box 2-Port in White
WP3502WH$2.99
1-Gang 2-Port Wall Plate in White
WP3402WH$1.79
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G CG10317 TAA compliant for government contracts?
Yes, this cable is TAA compliant and meets NDAA 889 requirements for use in sensitive environments.
What is the wiring scheme for this Cat6 cable?
The CG10317 is wired using the T568B scheme for standard network connectivity.
Can I use this cable with a patch panel?
Yes, this cable is compatible with various hardware such as the CG37200 or CG37199 Cat6 110-Type Patch Panels.
What kind of shielding does this patch cable have?
This is an Unshielded Twisted Pair (UTP) cable, meaning it does not feature internal metallic shielding.
Does this cable support high-bandwidth video distribution?
Yes, this Cat6 cable is designed to handle bandwidth-intensive applications for voice, data, and video distribution.
