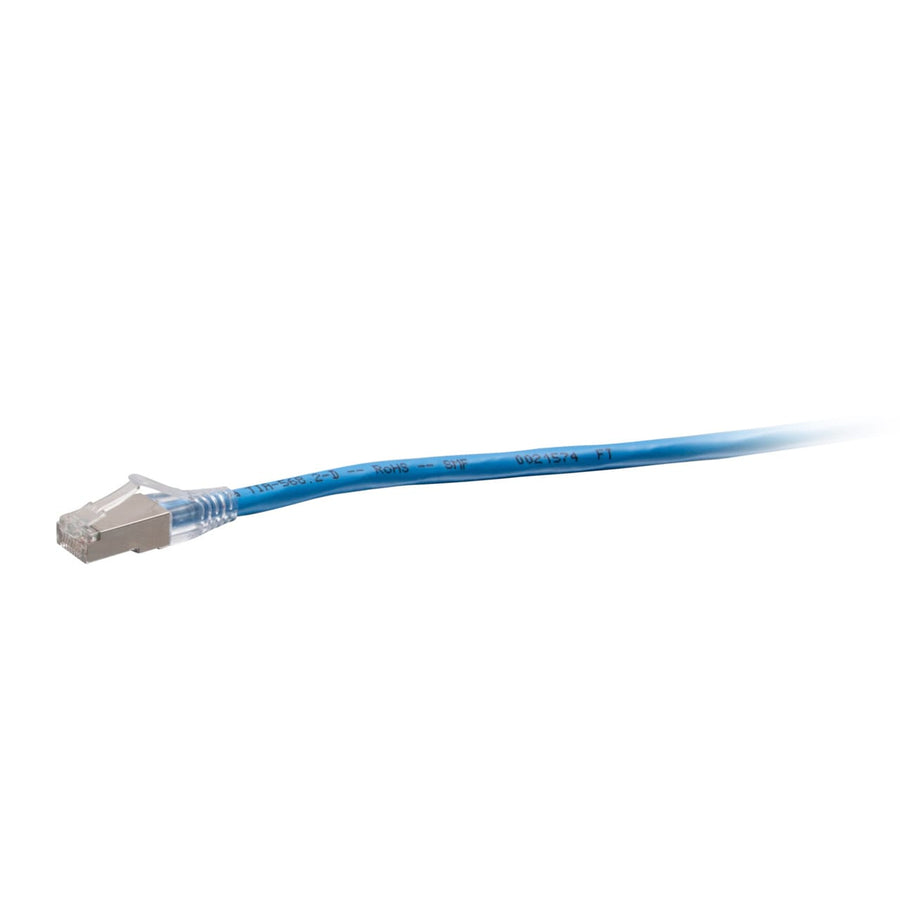

12ft (3.7m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Blue
12ft shielded Cat6a STP network cable, snagless design, TAA-compliant, blue
The C2G43823 is a 12ft (3.7 m) TAA-compliant Cat6a snagless shielded (STP) network cable in blue. Designed to support demanding 10GBase-T (10 Gigabit Ethernet) applications, this passive cable protects high-speed network connections from electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk. It utilizes a shielded STP construction with aluminum foil to maintain signal integrity in bandwidth-intensive environments, making it suitable for use with switches, routers, hubs, network adapters, and patch panels. Each cable features 50-micron gold-plated contacts and snagless RJ45 connectors to prevent clip breakage during frequent insertion cycles. This CMR-rated, riser-application cable is constructed with high-quality, made in the USA copper stranded cabling. It meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, ensuring reliable performance for voice, data, and video distribution in professional installations. The cable features a 0.24 in (6 mm) diameter and operates in temperatures ranging from -4°F to 167°F (-20°C to 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 12 ft (3.7 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.3 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120438236 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
17 Inch Dual-Purpose In-Wall Enclosure
ENP1700NA$59.99
Questions about this part
Is the C2G43823 TAA compliant?
Yes, this F-Series Cat6a cable is TAA compliant, making it suitable for United States government projects and facilities.
What is the maximum speed and application for this cable?
The C2G43823 is designed for 10GBase-T (10 Gigabit Ethernet) applications, supporting bandwidth-intensive voice, data, and video distribution.
Does this cable provide shielding against interference?
Yes, this is a Shielded STP (Shielded Twisted Pair) cable designed to counter EMI, RFI, and alien crosstalk to protect 10 Gigabit network connections.
What RJ45 connector type does the C2G43823 use?
It features a snagless RJ45 male to RJ45 male design, which protects the clips from snapping off during high-frequency use.
What is the jacket rating for this Cat6a cable?
The cable features a CMR-rated PVC jacket, making it suitable for riser applications.
