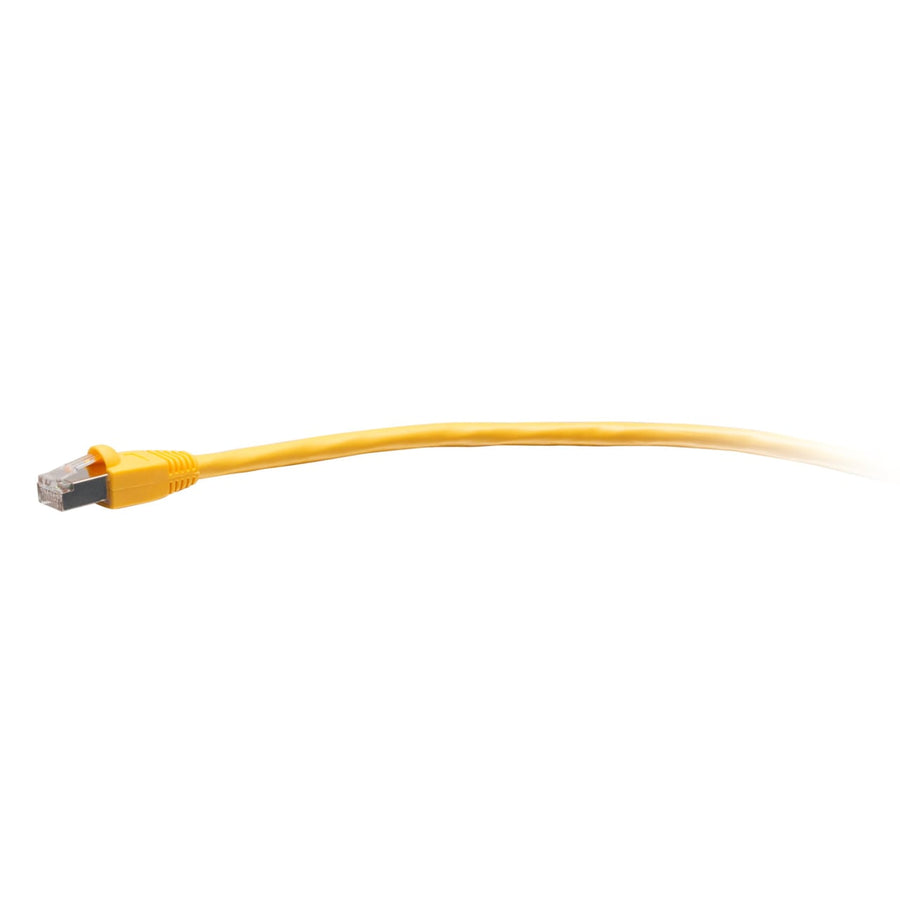

12ft (3.7m) TAA-Compliant F-Series Cat6 Snagless Shielded (STP) Network Cable - Yellow
12ft TAA-compliant Cat6 snagless shielded (STP) network cable in yellow, CMR rated for riser applications
The C2G43772 is a 12ft (3.7m) TAA-compliant F-Series Cat6 snagless shielded (STP) network cable in yellow. This passive patch cable is constructed with high-quality, made in the USA copper cabling, utilizing aluminum foil shielding to protect high-speed networks from EMI, RFI, and alien crosstalk. Designed for use with network adapters, hubs, switches, routers, and servers, it meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards to support 1000BASE-T (1 Gigabit Ethernet) applications. Each cable features 50-micron gold-plated RJ-45 male contacts to improve signal integrity and a snagless design to protect the clips from damage during high-insertion cycles. This CMR rated riser cable is suitable for various indoor installations and is compliant with TAA requirements for US government projects. The 26 AWG stranded copper conductors are housed in a PVC jacket with a diameter of 0.24 in (6 mm). It operates reliably within a temperature range of -4° to 167°F (-20° to 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 12 ft (3.7 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.27 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120437727 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
17 Inch Dual-Purpose In-Wall Enclosure
ENP1700NA$59.99
Questions about this part
Is the C2G43772 TAA compliant?
Yes, this is a TAA-compliant F-Series cable suitable for US government projects.
What is the maximum data rate for this Cat6 cable?
This cable meets ANSI/TIA-568.2-D standards for supporting 1000BASE-T (1 Gigabit Ethernet) applications.
Can I use this cable in a riser installation?
Yes, this cable has a CMR rated PVC jacket specifically for riser applications.
What type of shielding does this cable provide?
The C2G43772 uses Shielded STP (Screened Twisted Pair) construction with aluminum foil to counter interference.
Does this cable feature gold-plated contacts?
Yes, it is equipped with 50-micron gold-plated contacts to ensure signal integrity.
