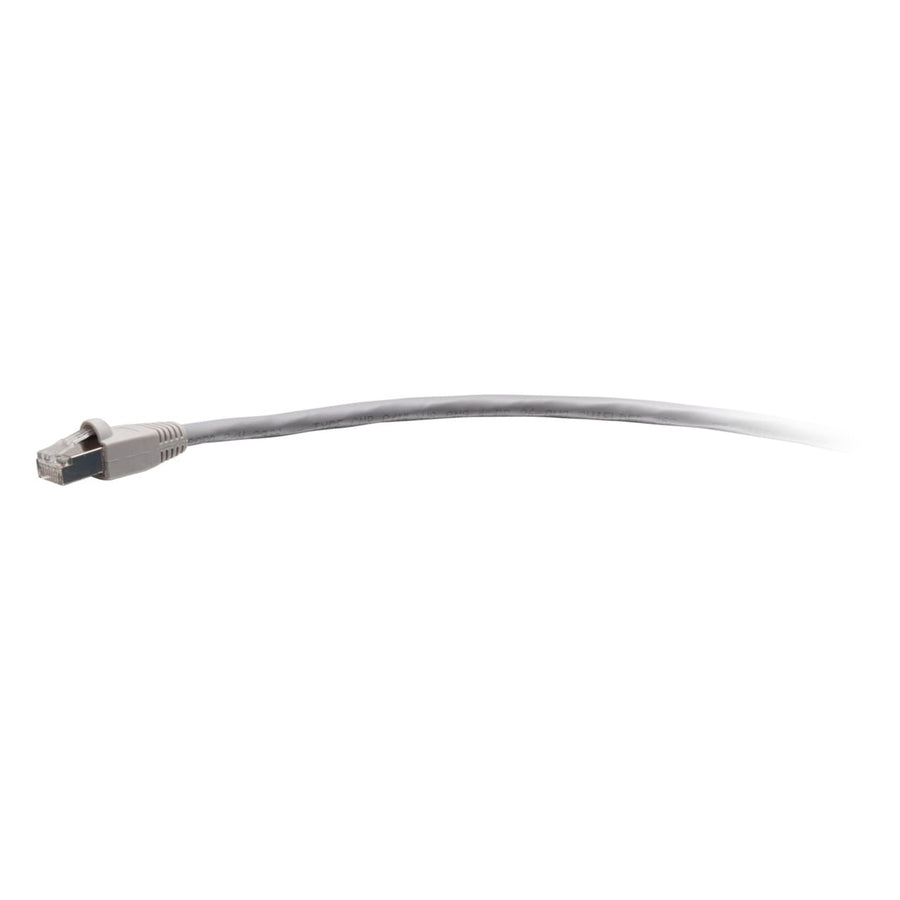

12ft (3.7m) TAA-Compliant F-Series Cat6 Snagless Shielded (STP) Network Cable - Gray
12ft TAA-compliant Cat6 STP network cable with snagless RJ45 connectors and gray PVC jacket
The C2G43716 is a 12 ft (3.7 m) TAA-Compliant F-Series Cat6 Snagless Shielded (STP) Network Cable in gray. This passive, shielded STP cable is specifically engineered to meet the stringent requirements of United States government projects and facilities through its TAA compliance. It is designed to protect high-speed networks from electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk by utilizing aluminum foil shielding and stranded copper conductors. This Cat6 cable supports 1000BASE-T (1 Gigabit Ethernet) applications and meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. The cable features 50-micron gold-plated contacts to ensure signal integrity and a snagless RJ45 design to protect the clips from damage during high insertion cycles. This CMR-rated, riser-rated cable is constructed with a PVC jacket and is suitable for use in network adapters, hubs, switches, routers, and servers.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 12 ft (3.7 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.27 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120437161 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
17 Inch Dual-Purpose In-Wall Enclosure
ENP1700NA$59.99
Questions about this part
Is the C2G43716 TAA compliant?
Yes, this is a TAA-Compliant F-Series cable approved for use in United States government facilities and projects.
What is the maximum distance and shielding for this Cat6 cable?
This is a 12 ft (3.7 m) length cable utilizing STP (Shielded Twisted Pair) with aluminum foil shielding to counter interference.
What applications is this Cat6 cable suitable for?
It is designed for 1000BASE-T (1 Gigabit Ethernet) applications, including connections for routers, switches, hubs, and servers.
Does this cable have a warranty?
Yes, this product comes with a lifetime warranty from C2G.
What is the jacket rating for this cable?
This cable has a CMR rating and is a riser-rated cable with a PVC jacket.
