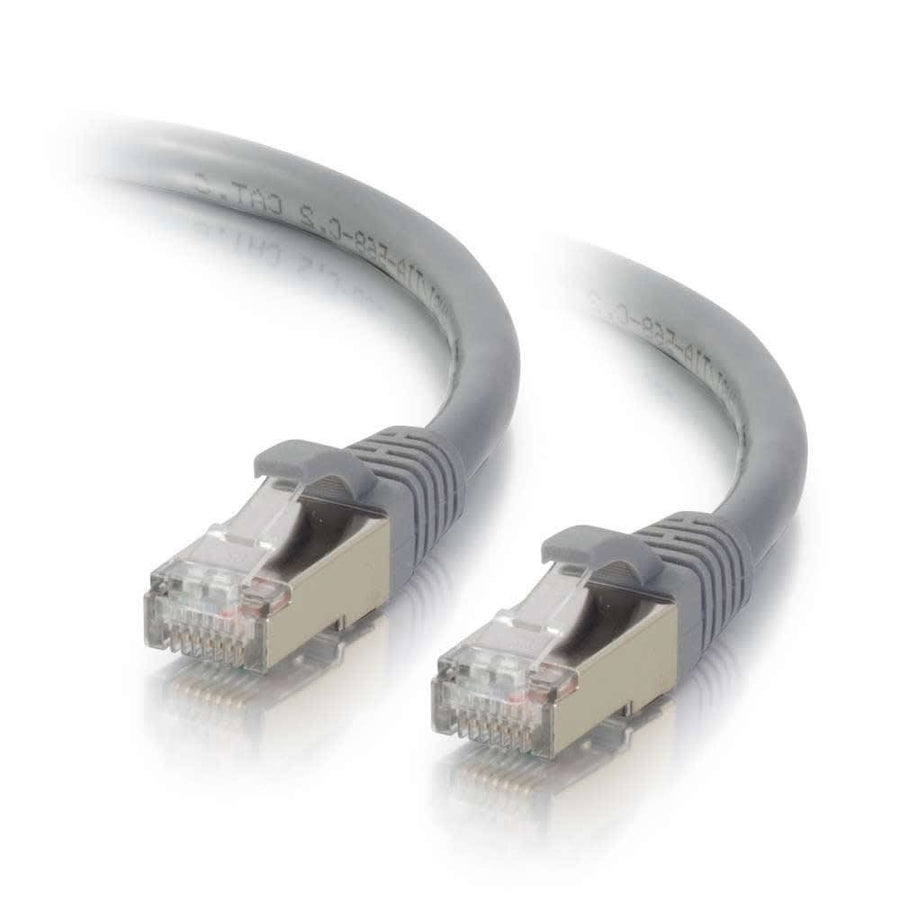

12ft (3.7m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Gray
12 ft Cat6a shielded STP patch cable in gray, featuring snagless boots for 10GBase-T high-speed network connections
The C2G CG00648 is a 12 ft (3.7 m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable in gray, engineered to support demanding 10GBase-T port environments. This cable is designed for use with network adapters, hubs, switches, routers, DSL/cable modems, and patch panels where protecting high-speed 10 Gigabit network connections from electromagnetic interference and noise is critical. Featuring a shielded SSTP construction with stranded 26AWG bare copper conductors, this cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements. The internal design employs bonded pairs to maintain twist-spacing throughout the line up to the termination point, which helps minimize Near-End Crosstalk (NEXT) and reduce impedance and structural return loss (SRL). The snagless, booted RJ-45 male connectors utilize PVC hoods to protect the locking tabs. This gray patch cable is suitable for various operating environments, maintaining performance within a temperature range of -4° to 176°F (-20° to 80°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 12 ft (3.7 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.34 lbs (0.2 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120006480 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
1-Port Keystone Jack Surface Mount Box - White
CG03831$4.99
4-Port Surface Mount Box
WP3504WH$4.99
Three Port Keystone Single Gang Wall Plate - White
CG03412$3.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
LANsmart TDR Cable Tester
CG39002$786.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Questions about this part
Will this Cat6a cable support 10 Gigabit Ethernet speeds?
Yes, this is a Cat6a rated cable designed to protect 10GBase-T connections from noise and EMI in high-speed environments.
What is the maximum operating temperature for the CG00648?
The cable is rated for operating temperatures up to 176°F (80°C) and storage temperatures up to 176°F (80°C).
Is this cable shielded against interference?
Yes, it features a shielded SSTP (Shielded Star Quad/Shielded Twisted Pair) design with a 26AWG copper conductor to reduce crosstalk.
What is the difference between this and other C2G Cat6a cables?
This SKU is the 12 ft gray version; the C2G Cat6a series offers various other lengths and colors for color-coded installations.
What documents are available for submittals for this cable?
The C2G Ethernet Patch Cable Matrix (PDF) is available to assist with technical integration and selection.
