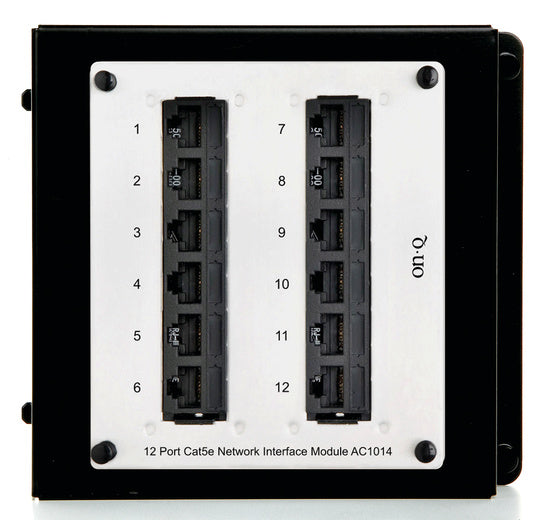

12-Port Cat5e Network Interface Module
12-Port Cat5e network interface module used to switch residential outlets between voice and data service
The On-Q AC1014 is a 12-port Cat5e network interface module designed for structured wiring distribution. This module allows installers to easily switch a specific outlet from a voice configuration to a data configuration, or vice versa, providing flexibility in residential multimedia environments. It features a high-density mini patch panel design with 12 RJ45 ports that are individually labeled 1 through 12 for organized cable management. For projects requiring higher bandwidth standards, the AC1015 is the Cat6 version of this module.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Resources
You'll need these with it
Questions about this part
Can I use this for Cat6 installations?
This specific SKU is for Cat5e specifications; for Cat6 requirements, use the AC1015 model.
How are the ports identified on this module?
The 12 RJ45 ports are clearly labeled 1 through 12 to assist with identification and organization.
What is the primary function of this interface module?
It allows an installer to change the service of an outlet from voice to data or from data to voice.
Is there a high-density option for small spaces?
Yes, this module is designed as a high-density mini patch panel to maximize space efficiency.
Which document provides the CAD drawing for this part?
You can refer to the CAD-AC1014CADDraw-OQ file for technical drawings of the unit.
