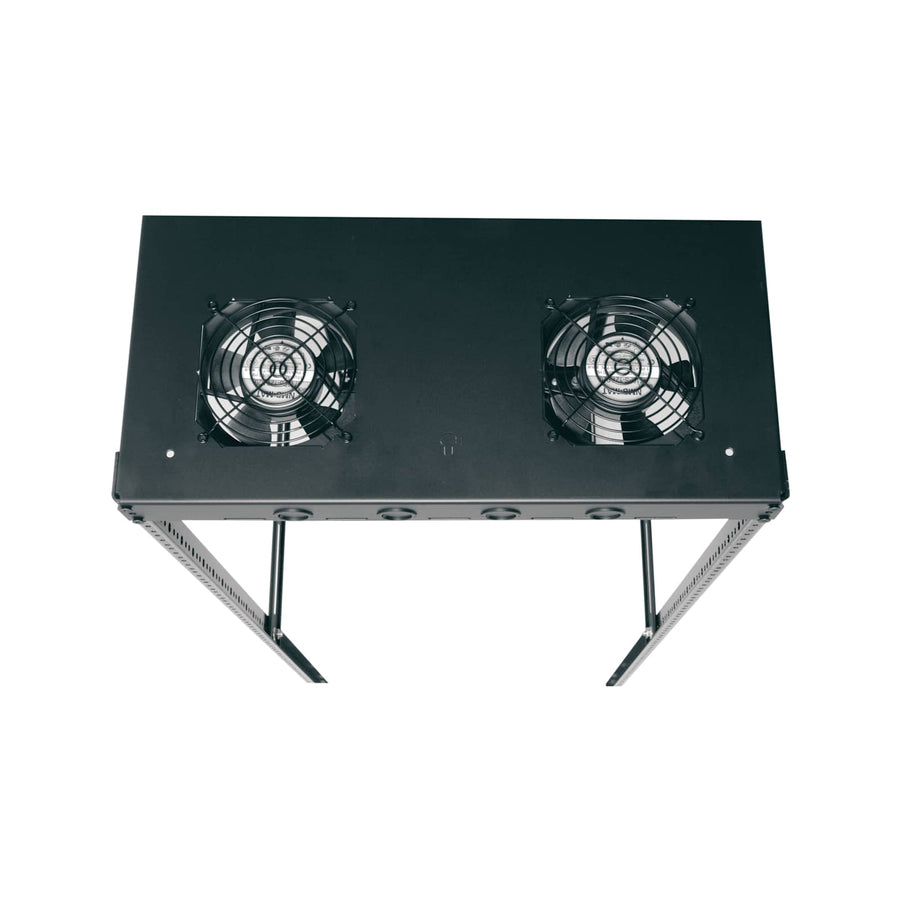

114 CFM Fan Kit for Slim 5 Series Rack
Active cooling kit for Slim 5 Series Racks featuring two 4.5" fans and 114 CFM airflow
The 5-FAN-K is an active thermal management kit specifically designed for use within Middle Atlantic Slim 5 Series Racks. This kit provides essential airflow to protect sensitive electronic components from heat buildup by delivering 114 CFM of cooling. The assembly includes two 4.5" fans equipped with vent blockers and fan guards, along with a power cord and the necessary mounting hardware for installation. These fans are designed to fit into the top knockouts of a Slim 5 rack or can be installed in the top of rear access panels to optimize heat dissipation. This kit operates on 120 VAC power and is built to integrate directly into the Slim 5 chassis to maintain stable operating temperatures in professional AV environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| CFM | 114 |
| Depth | 1.5 in (3.8 cm) |
| Height | 4.69 in (11.9 cm) |
| Shipping Weight | 4.5 lbs (2 kg) |
| Volts AC | 120 VAC |
| Width | 4.69 in (11.9 cm) |
| Available Internationally | No |
| Base Series | Slim 5 |
| Component Type | Active |
| Manufacturer | Middle Atlantic |
| Power Type | AC |
| UPC | 656747103728 |
Resources
You'll need these with it
Questions about this part
Will this fan kit work with my Slim 5 Series rack?
Yes, the 5-FAN-K is specifically designed for use with Middle Atlantic Slim 5 Series Racks, fitting into either the top knockouts or the top of rear access panels.
What is included in the 5-FAN-K fan kit?

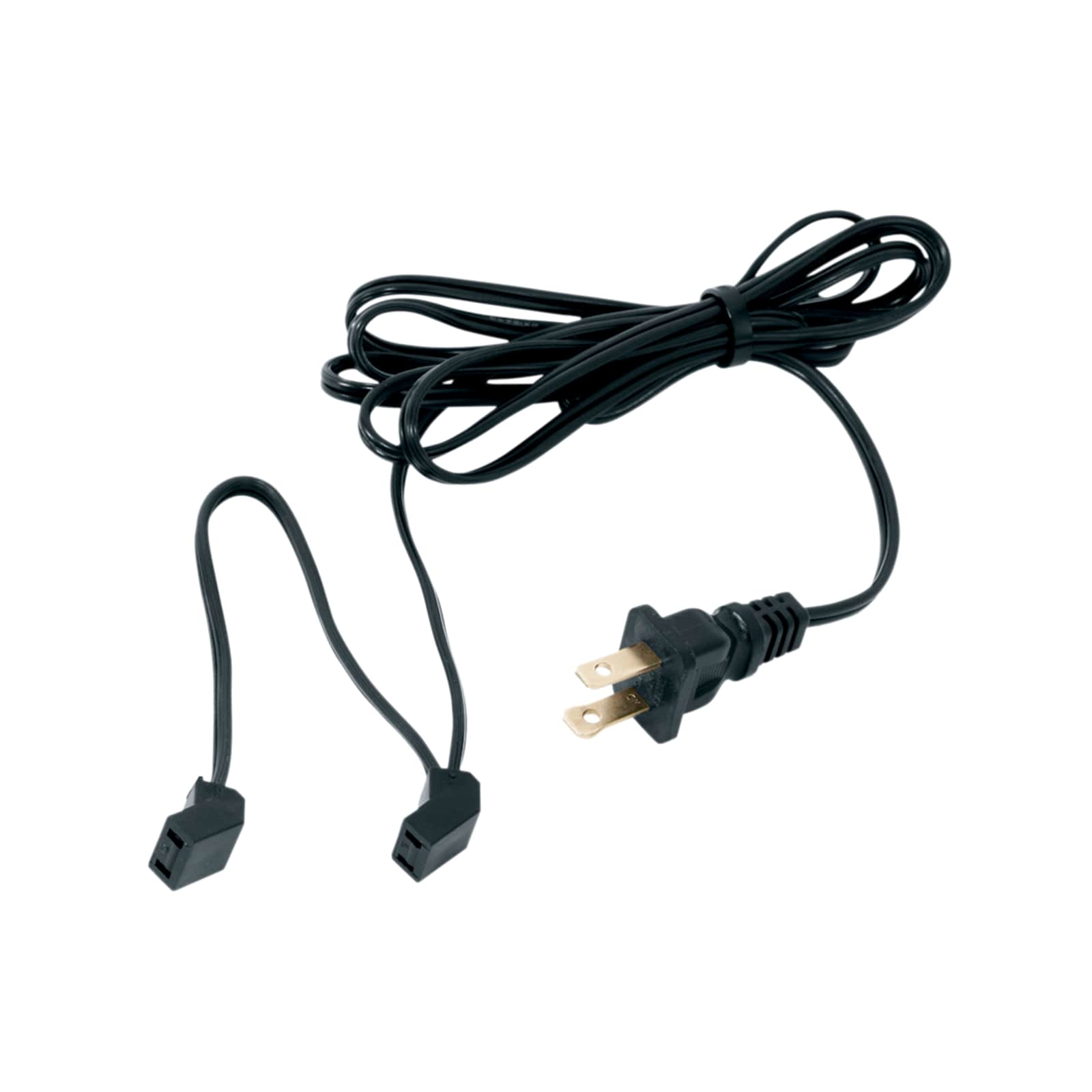

This kit contains two 4.5" fans, vent blockers, four fan guards, a power cord, and the required mounting hardware.
Can I add a thermostat to control these fans?
Yes, you can integrate the FC-2-215-1CA stand-alone thermostatic fan controller for 2 fans or the FC-4-1CA controller for 4 fans with this kit.
What are the power requirements for the 5-FAN-K?
The kit is an active component that requires a 120 VAC power source for operation.
Which document should I use for installation or submittals?
You can refer to the 5-FAN-K Instruction Sheet for installation guidance or the Slim 5 Series 19" Equipment Racks A&E Specification Sheet for technical submittals.
