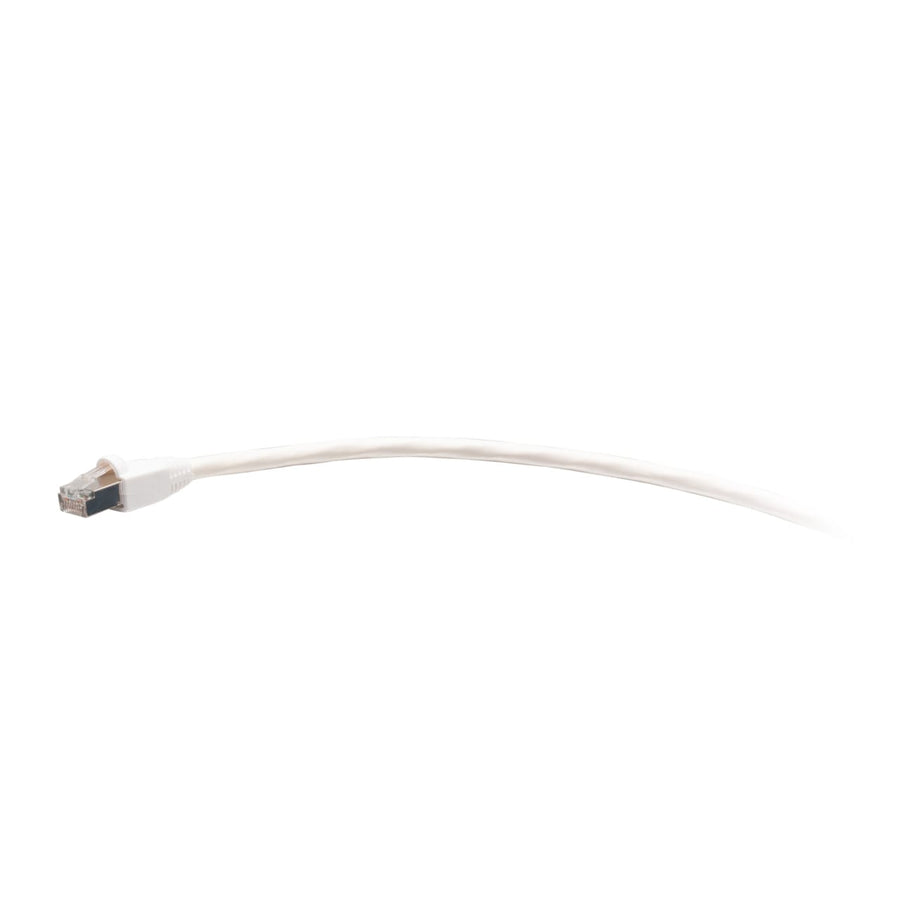

10ft (3m) TAA-Compliant F-Series Cat6 Snagless Shielded (STP) Network Cable - White
10ft TAA-compliant Cat6 shielded (STP) network cable with snagless RJ-45 connectors in white
The C2G43785 is a 10 ft (3.1 m) TAA-compliant F-Series Cat6 network cable designed for high-speed network environments. This snagless shielded (STP) cable is specifically engineered to protect networks from electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk. It utilizes high-quality, made-in-the-USA copper conductors with aluminum foil shielding to ensure consistent and reliable performance. The cable features 50-micron gold-plated contacts to maintain signal integrity across high-frequency applications, including 1000BASE-T (1 Gigabit Ethernet). Built with a 26 AWG stranded copper conductor and a PVC jacket, this cable is CMR rated for riser applications. The snagless RJ-45 connector design protects the clips from being snapped off, which is particularly beneficial in environments with high insertion cycles. This passive cable meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards, making it suitable for use in servers, switches, routers, hubs, and network adapters.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 10 ft (3.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.29 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120437857 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
17 Inch Dual-Purpose In-Wall Enclosure
ENP1700NA$59.99
Questions about this part
Is the C2G43785 TAA compliant?
Yes, this is a TAA-compliant F-Series network cable approved for use in United States government projects and facilities.
What is the maximum data speed for this Cat6 cable?
This cable is designed to meet or exceed ANSI/TIA-568.2-D standards for supporting applications including 1000BASE-T (1 Gigabit Ethernet).
Will this cable work in a riser application?
Yes, the cable features a CMR rated PVC jacket specifically intended for riser applications.
What type of shielding does this cable use?
The C2G43785 utilizes Shielded STP (Shielded Twisted Pair) with aluminum foil to protect against EMI, RFI, and alien crosstalk.
Does this cable support high insertion cycles?
Yes, the snagless RJ-45 connector design is engineered to protect the clips from being snapped off during repeated use.
