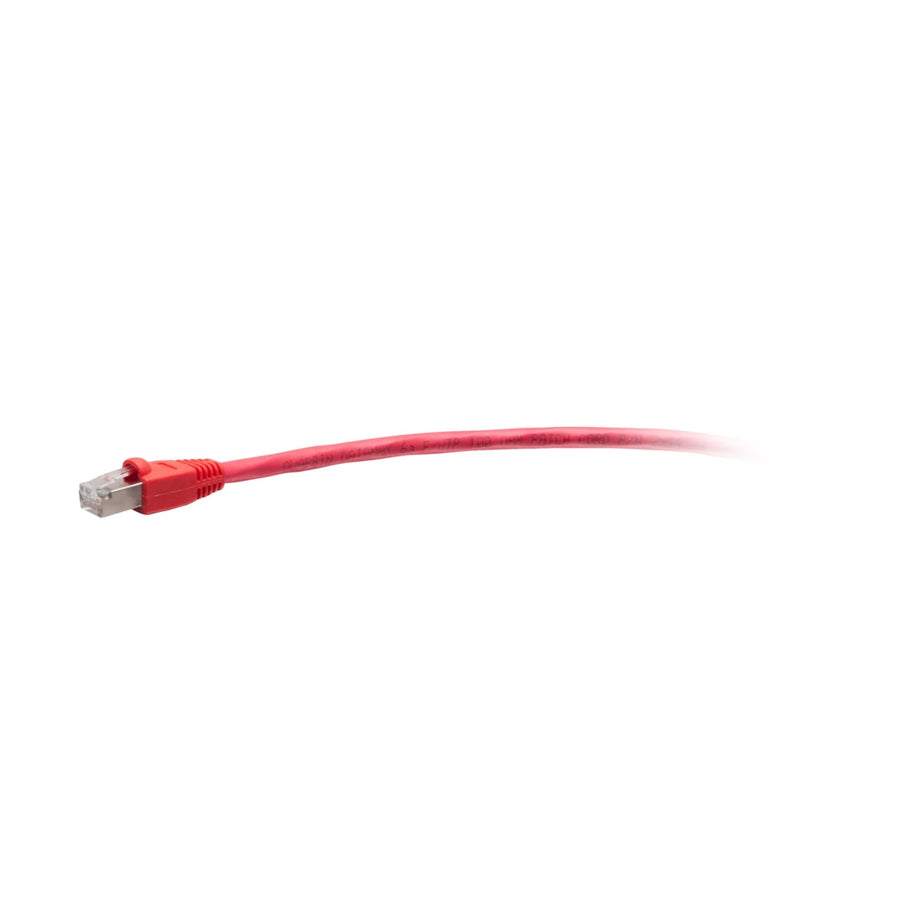

10ft (3m) TAA-Compliant F-Series Cat6 Snagless Shielded (STP) Network Cable - Red
10ft Red Cat6 STP patch cable, snagless RJ45 connectors, TAA-compliant and CMR rated
The C2G43757 is a 10ft (3.1 m) TAA-compliant Cat6 network cable finished in red for easy color-coding within complex rack environments. This shielded STP (Shielded Twisted Pair) cable is engineered to protect high-speed data transmissions from electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk. It utilizes 26 AWG stranded copper conductors to support 1000BASE-T (1 Gigabit Ethernet) applications, meeting or exceeding ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards. Each end features an RJ-45 male connector with 50-micron gold-plated contacts to maintain signal integrity over time. The snagless design protects the locking clips from damage during frequent insertion cycles, making it suitable for high-traffic network switches and routers. This CMR-rated riser cable is constructed with a PVC jacket and is approved for use in United States government projects and facilities requiring TAA compliance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 10 ft (3.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.29 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120437574 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
17 Inch Dual-Purpose In-Wall Enclosure
ENP1700NA$59.99
Questions about this part
Is the C2G43757 TAA compliant?
Yes, this cable is TAA-compliant and approved for United States government projects and facilities.
What is the maximum operating temperature for this cable?
The cable is rated for operating temperatures ranging from -4° to 167°F (-20° to 75°C).
What type of shielding does this Cat6 cable use?
This is a Shielded STP (Shielded Twisted Pair) cable designed to mitigate EMI, RFI, and alien crosstalk.
What is the difference between this and unshielded Cat6 cables?
Unlike unshielded versions, this STP cable includes an aluminum foil shield to protect against electromagnetic and radio frequency interference.
Can I use this in a riser application?
Yes, this cable has a CMR jacket rating, making it suitable for riser applications.
