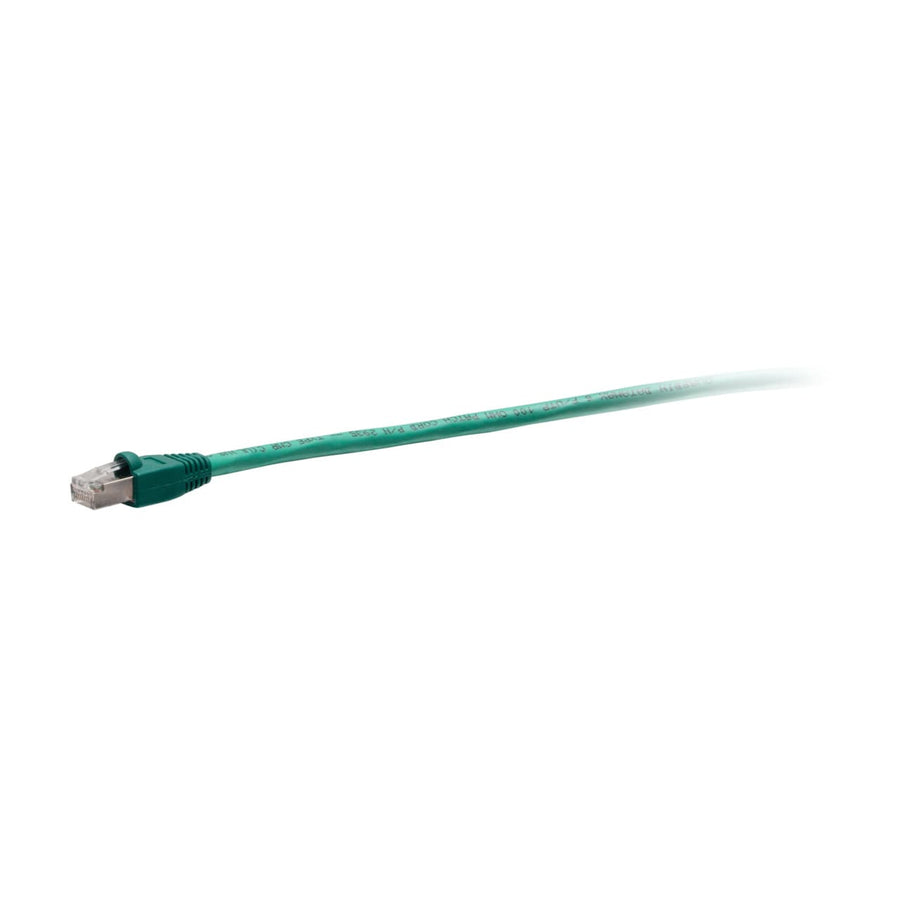

10ft (3m) TAA-Compliant F-Series Cat6 Snagless Shielded (STP) Network Cable - Green
10ft TAA-compliant Cat6 STP shielded network cable in green with snagless RJ45 connectors
The C2G43743 is a 10 ft (3.1 m) TAA-compliant Cat6 shielded STP network cable designed for use in United States government projects and facilities. This passive cable is constructed with high-quality, made-in-the-USA copper conductors and features stranded wire to ensure reliable performance. To protect high-speed networks from electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk, this cable utilizes an aluminum foil shield. It is rated for 1000BASE-T (1 Gigabit Ethernet) applications and meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. Each cable features 50-micron gold-plated contacts to maintain signal integrity and a snagless RJ45 connector design to prevent the clips from snapping during high-insertion cycles. The CMR-rated PVC jacket is designed for riser applications and is suitable for connecting network adapters, hubs, switches, routers, and servers. This green cable is part of the TAA-Compliant F-Series, which is available in various lengths and colors.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 10 ft (3.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.29 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120437437 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
17 Inch Dual-Purpose In-Wall Enclosure
ENP1700NA$59.99
Questions about this part
Is the C2G43743 TAA compliant?
Yes, this is a TAA-compliant F-Series network cable approved for use in United States government projects and facilities.
What is the maximum performance rating for this Cat6 cable?
This cable meets or exceeds ANSI/TIA-568.2-D standards for supporting 1000BASE-T (1 Gigabit Ethernet) applications.
Does this cable provide shielding against interference?
Yes, it features Shielded STP (STP) construction with an aluminum foil shield to counter EMI, RFI, and alien crosstalk.
What is the jacket rating for the C2G43743?
This cable has a CMR rating and a PVC jacket, making it suitable for riser applications.
What is the warranty for this C2G network cable?
This product is backed by a lifetime warranty from the manufacturer.
