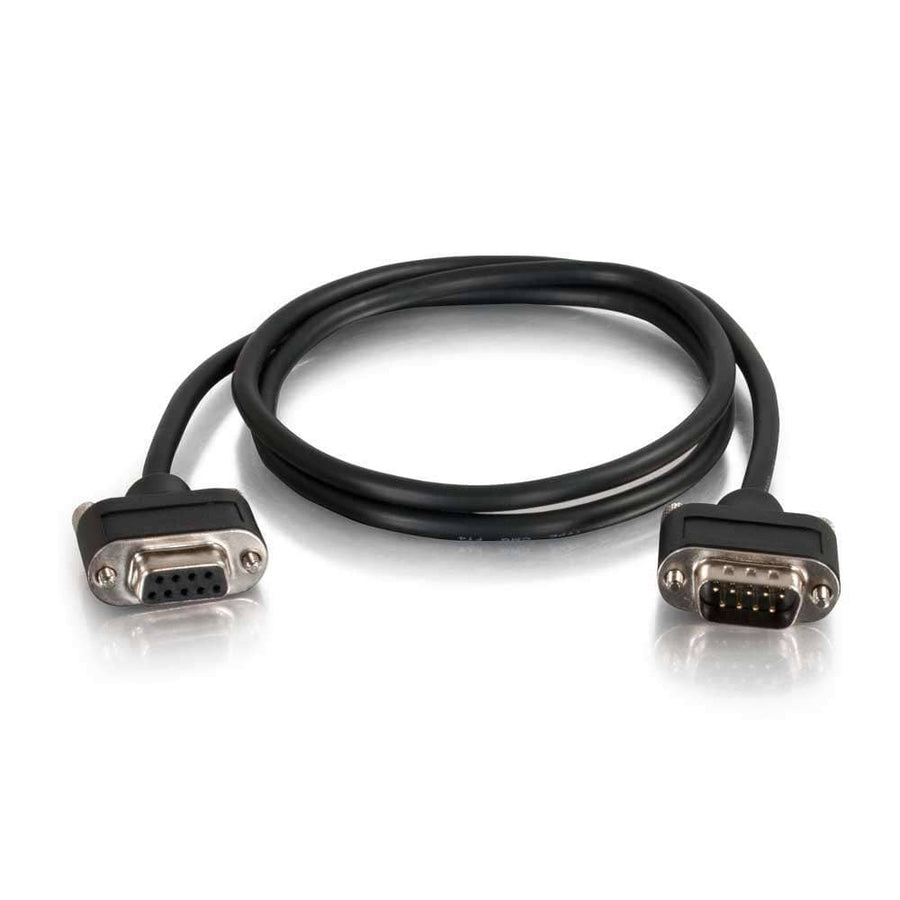

10ft (3m) Serial RS232 DB9 Cable with Low Profile Connectors M/F - In-Wall CMG-Rated
10ft RS232 DB9 Male to Female cable with 1.25 in low-profile connectors, CMG and FT4 rated for in-wall installations
The CG52158 is a 10 ft (3.1 m) Serial RS232 DB9 Male to Female cable designed specifically for professional audio/video installations in commercial and educational environments. This 28 AWG cable is CMG and FT4 rated, making it suitable for use as a substitute when these specific communications cable ratings are required for in-wall applications. The connectors feature a low-profile design with a total depth of 1.25 in, which saves critical space within a gang box and allows for easier installation in tight quarters. These rounded connectors are designed to accommodate mounts with a 1.25 in I.D. profile, ensuring the cable can be hidden from view behind displays. For reliable data transmission, the transmit and receive signals are crossed. The cable is fully shielded to protect against EMI/RFI interference and features a fully molded design for enhanced strain relief. This SKU is available in 6ft (CG52157) and 15ft (CG52160) variants.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Length | 10 ft (3.1 m) |
| Shipping Weight | 0.32 lbs (0.2 kg) |
| Wire Gauge | 28 |
| Cable Type | Serial |
| Color | Black |
| Connector 1 | (1) DB9 Male |
| Connector 2 | (1) DB9 Female |
| Jacket Application | In-Wall Rated |
All other specifications 7
| Jacket Rating | CMG RatedFT4 Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120521587 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
6in Cable Tie Multipack - 100 Pack - Black
CG43037$14.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
6ft (1.8m) Serial RS232 DB9 Cable with Low Profile Connectors M/F - In-Wall CMG-Rated
CG52157$18.99
15ft (4.6m) Serial RS232 DB9 Cable with Low Profile Connectors M/F - In-Wall CMG-Rated
CG52160$26.99
Questions about this part
Will the CG52158 fit in a shallow wall box?
Yes, the low-profile connectors have a total depth of 1.25 in, which saves space in gang boxes compared to standard serial cables.
What is the maximum depth for a mount to accommodate this cable?
The rounded connectors are designed to fit within mounts that have a 1.25 in I.D. (internal diameter).
What is the difference between the CG52158 and the CG52160?
The CG52158 is a 10 ft (3.1 m) cable, while the CG52160 is the 15 ft (4.6 m) version of the same series.
Is this cable suitable for in-wall installation?
Yes, this cable is CMG and FT4 rated for general-purpose in-wall use in communication applications.
What is the purpose of the crossed signals in this RS232 cable?
The transmit and receive signals are crossed within the cable to ensure proper data transmission for your serial connection.
