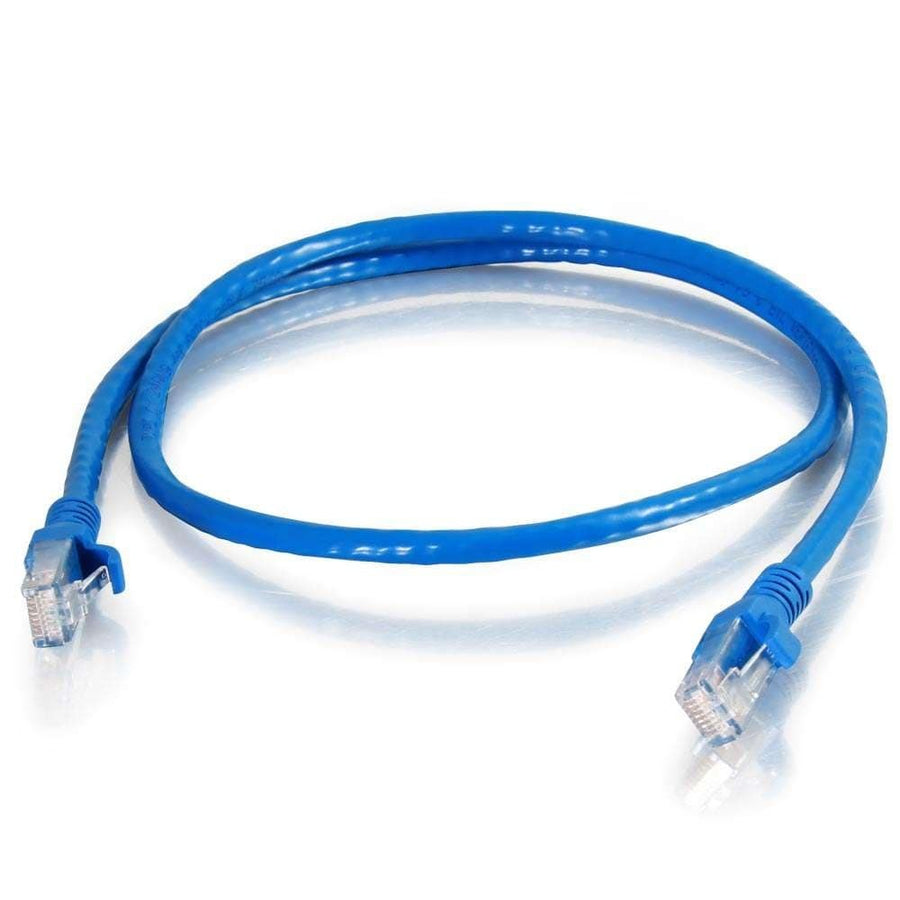

10ft (3m) Cat6 Snagless UTP Unshielded Ethernet Network Patch Cable - Blue
10ft (3.1 m) Cat6 UTP snagless patch cable in blue with stranded copper conductors
The C2G CG10316 is a 10ft (3.1 m) Cat6 UTP unshielded Ethernet network patch cable designed for high-bandwidth voice, data, and video distribution applications. This blue cable features stranded copper conductors and utilizes a T568B wiring scheme to ensure consistent performance. Each end is terminated with an RJ-45 male connector featuring a snagless, booted design. This molded, snag-free boot provides essential strain relief and prevents accidental snags during installation in dense network environments. The shortened body plug construction is specifically engineered to minimize Near-End Crosstalk (NEXT) levels. This cable is TAA compliant, meeting the specific procurement requirements for products manufactured in countries on the Trade Agreement Act list. It is constructed with a PVC jacket and a 0.24 in (6.2 mm) diameter, making it suitable for various networking setups. This specific model is part of a larger series of Cat6 TAA Snagless Patch Cables available in different lengths and colors.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 10 ft (3.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.3 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
All other specifications 13
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | Yes |
| UPC | 757120103165 |
| Certifications | NDAA 889Prop 65REACHRoHSTAATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Surface Mount Box
WP3506WH$6.99
Cable Management Strap - 12 Piece
TW12$25.20
8-Port Switch: 4-Port Network, 4-Port PoE+
DA8400WH$149.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
Surface Mount Box 1-Port in White
WP3501WH$1.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
32-Port Blank Keystone/Multimedia Patch Panel
CG03860$42.99
Questions about this part
Is the C2G CG10316 TAA compliant?
Yes, this cable is TAA compliant and meets NDAA 889, RoHS, REACH, and TAA requirements for government and enterprise procurement.
What is the wiring scheme for this Cat6 cable?
The CG10316 follows the T568B wiring scheme and uses stranded copper conductors for reliable connectivity.
What can I use this cable with in a patch panel setup?
It is compatible with various C2G components, including the CG37199 24-Port Cat6 110-Type Patch Panel and the CG37200 48-Port Cat6 110-Type Patch Panel.
How does the snagless boot help during installation?
The molded, snag-free boot on the RJ-45 male connectors prevents the cable from catching on other wires and provides extra strain relief.
Does this cable support PoE applications?
Yes, this Cat6 cable is suitable for use with equipment like the DA8400WH 8-Port Switch, which features 4-Port PoE+ capability.
