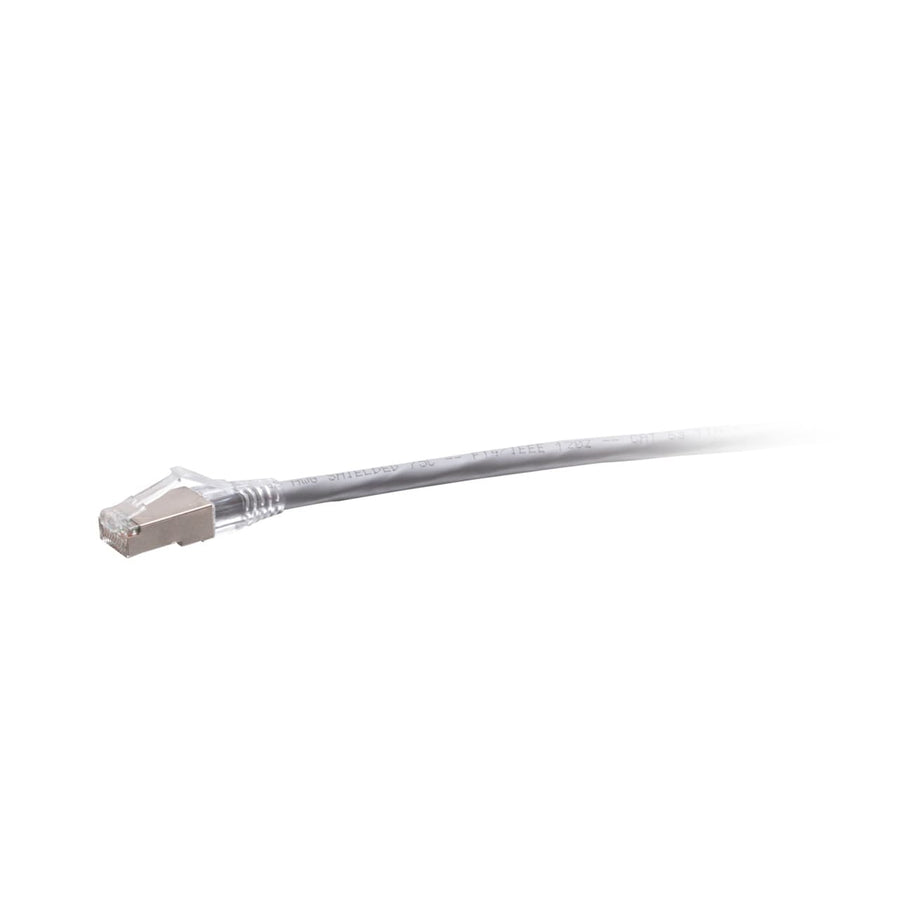

100ft (30.5m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Gray
100ft TAA-compliant Cat6a STP patch cable, shielded for 10GbE networks, snagless design, gray
The C2G43811 is a 100 ft (30.5 m) TAA-compliant Cat6a snagless shielded (STP) network cable designed for high-performance data environments. This passive cable is engineered to support 10GBASE-T (10 Gigabit Ethernet) applications, making it suitable for use with network adapters, hubs, switches, routers, and patch panels. To protect high-speed connections from electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk, this cable utilizes an aluminum foil shield and high-quality, made in the USA stranded copper conductors. The 26 AWG wires are terminated with RJ-45 male connectors featuring 50-micron gold-plated contacts to maintain signal integrity. For installation in residential or commercial spaces, the PVC jacket is CMR (Riser) rated, facilitating safe routing through vertical shafts. This gray cable is ideal for bandwidth-intensive voice, data, and video distribution where reducing impedance and structural return loss is critical.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 100 ft (30.5 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 2.5 lbs (1.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120438113 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
17 Inch Dual-Purpose In-Wall Enclosure
ENP1700NA$59.99
Questions about this part
Will this C2G43811 cable support 10 Gigabit Ethernet?
Yes, this Cat6a cable meets ANSI/TIA-568.2-D standards and is designed to support 10GBASE-T high-speed networking applications.
Is the C2G43811 suitable for government contracts?
Yes, this is a TAA-compliant F-Series network cable, which meets the requirements for use in United States government projects.
What is the jacket rating for this Cat6a cable?
The cable features a PVC jacket that is CMR (Riser) rated, making it suitable for vertical applications within building risers.
How does the snagless design help with installation?
The snagless RJ45 connectors protect the release clips from being snapped off, which is particularly beneficial in environments with frequent insertion and removal cycles.
What shielding is used to prevent interference?
This cable uses Shielded STP (Screened Twisted Pair) construction with aluminum foil shielding to mitigate EMI, RFI, and alien crosstalk.
