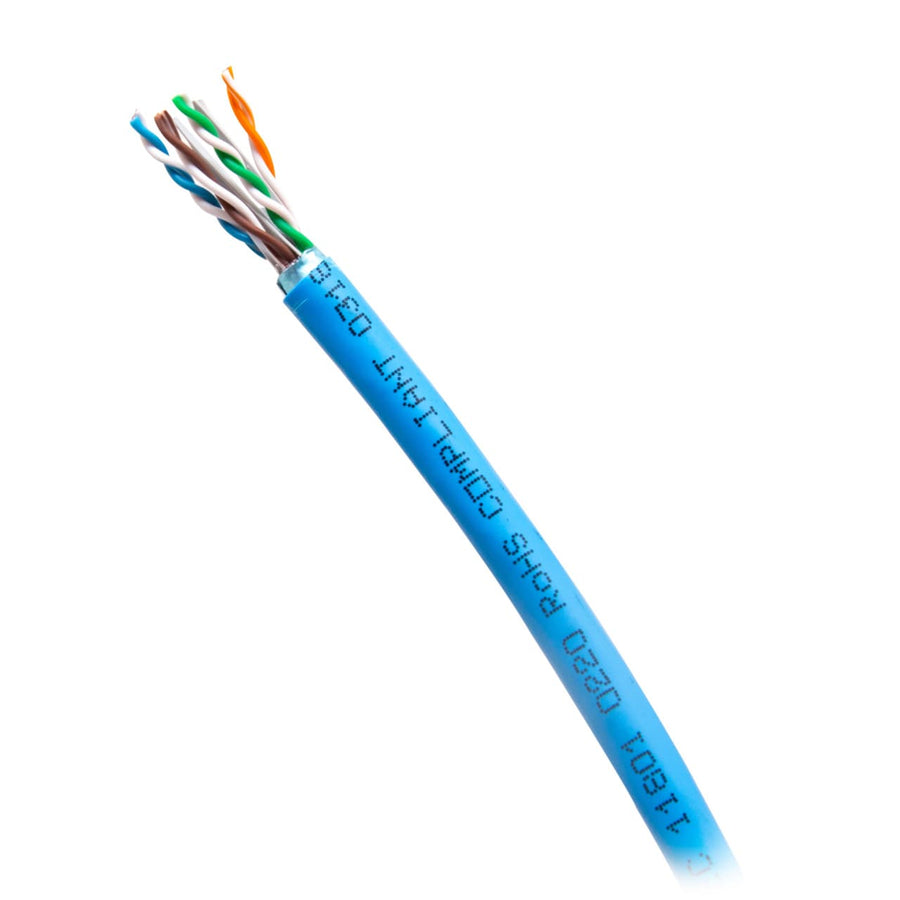

1000ft (304.8m) TAA-Compliant Cat6 Bulk Foil Shield (F/UTP) Ethernet Network Cable with Solid Conductors-Riser CMR -Rated - Blue
1000ft spool of Cat6 F/UTP shielded bulk cable, Blue, CMR riser rated, with solid copper conductors
The C2G56040 is a 1000 ft (304.8 m) bulk spool of Cat6 F/UTP (Foiled Unshielded Twisted Pair) Ethernet network cable, finished in blue. This cable is designed for vertical riser applications, carrying a CMR rating for safe in-wall installation. It features 23 AWG solid copper conductors, which provide stable signal transmission for high-performance networking. The F/UTP shielding is specifically engineered for environments with high EMI potential, protecting the signal from high-frequency noise and minimizing data errors. This bulk cable has a diameter of 0.28 in (7.2 mm) and a minimum bend radius of 1.13 in (28.8 mm). For installations requiring TAA compliance, this product meets necessary regulatory standards and is UL Listed. This is a bulk cable intended for termination at the end of the run; it is provided with bare wire ends rather than pre-terminated connectors.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.13 in (28.8 mm) |
| Cable Diameter | 0.28 in (7.2 mm) |
| Cable Length | 1000 ft (304.8 m) |
| Operating Temperature | -4° - 140°F (-20° - 60°C) |
| Operating Temperature Max | 140 Fahrenheit (60 Celsius) |
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Product Weight | 37.6 lbs (17.1 kg) |
| Shipping Weight | 37.64 lbs (17.1 kg) |
All other specifications 23
| Storage Temperature Max | 167 Fahrenheit (75 Celsius) |
| Storage Temperature Min | 68 Fahrenheit (20 Celsius) |
| Voltage | 300 V |
| Wire Gauge | 23 |
| Cable Shielding | F/UTP |
| Cable Type | BulkCat6 |
| Category Performance Application | Cat6 |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Solid |
| Connector 1 | Bare Wire |
| Connector 2 | Bare Wire |
| Connector Type | Bare Wire |
| Insulation Material | PO (Polyolefin) |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DIEC 61156-5ISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120560401 |
| Certifications | CEProp 65REACHRoHSTAAUL Listed |
| Jacket Material | FRPVC (Flame Retardant Polyvinyl Chloride) |
| Warranty | Lifetime |
Resources
You'll need these with it
8-Port Switch: 4-Port Network, 4-Port PoE+
DA8400WH$149.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Surface Mount Box
WP3506WH$6.99
Surface Mount Box 1-Port in White
WP3501WH$1.99
USB-C® to Ethernet Network Adapter Converter
CG29826$43.99
16-Port Blank Keystone/Multimedia Patch Panel
CG03858$29.99
1-Gang 2-Port Wall Plate in White
WP3402WH$1.79
32-Port Blank Keystone/Multimedia Patch Panel
CG03860$42.99
Cable Management Strap - 12 Piece
TW12$25.20
Questions about this part
Will this C2G56040 cable work in a plenum space?
No, this SKU is CMR rated for riser applications. For plenum spaces, you require a CMP-rated cable.
What do I need to buy to terminate this bulk cable?
Since this is bare wire, you will need RJ45 connectors or patch panels, such as the CG37199 24-Port Cat6 110-Type Patch Panel.
Is this cable suitable for environments with high electrical noise?
Yes, the F/UTP shielding is designed to protect against high-frequency noise and EMI to minimize data errors.
Is the C2G56040 TAA compliant for government contracts?
Yes, this product is TAA compliant and UL Listed.
What is the diameter and bend radius for installation planning?
The cable has a 0.28 in (7.2 mm) diameter and a minimum bend radius of 1.13 in (28.8 mm).
