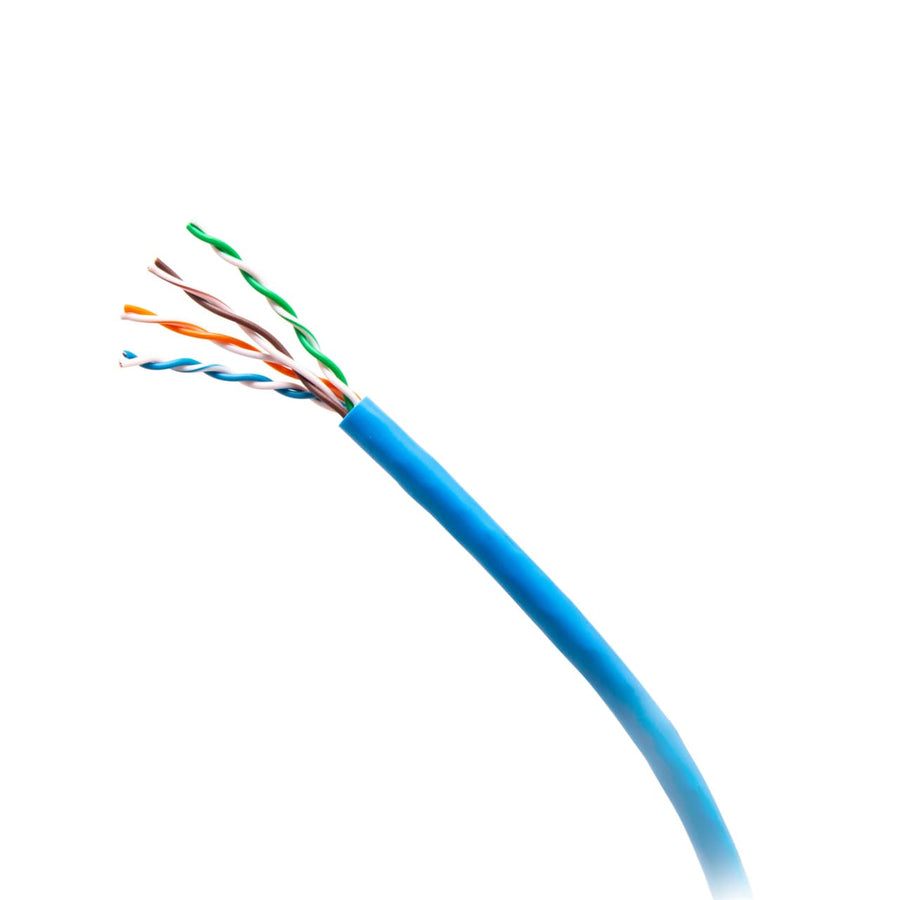

1000ft (304.8m) TAA-Compliant Cat5e Bulk Unshielded (UTP) Ethernet Network Cable with Stranded Conductors In-Wall CM-Rated - Blue
1000ft spool of Cat5e UTP bulk cable with blue stranded copper conductors and CM-rated jacket for in-wall use
The C2G56030 is a 1000 ft (304.8 m) spool of Cat5e Unshielded Twisted Pair (UTP) bulk Ethernet network cable designed for professional LAN installations. This blue cable features copper stranded conductors and a 0.2 in (5.1 mm) diameter, providing a 0.8 in (20.4 mm) bend radius for manageable routing during installation. It is specifically CM-rated for in-wall applications and features a flame-retardant PVC (FRPVC) jacket. This cable is TAA compliant and UL listed, meeting ANSI/TIA-568.2-D, IEC 61156-5, and ISO/IEC 11801-1 standards. The stranded construction makes it suitable for termination with bare wire connectors. Operating within a temperature range of -4° to 140°F (-20° to 60°C), this cable is a reliable choice for standard unshielded network environments where high-frequency EMI protection is not required.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 0.8 in (20.4 mm) |
| Cable Diameter | 0.2 in (5.1 mm) |
| Cable Length | 1000 ft (304.8 m) |
| Operating Temperature | -4° - 140°F (-20° - 60°C) |
| Operating Temperature Max | 140 Fahrenheit (60 Celsius) |
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Product Weight | 22.2 lbs (10.1 kg) |
| Shipping Weight | 22.23 lbs (10.1 kg) |
All other specifications 23
| Storage Temperature Max | 167 Fahrenheit (75 Celsius) |
| Storage Temperature Min | 68 Fahrenheit (20 Celsius) |
| Voltage | 300 V |
| Wire Gauge | 24 |
| Cable Shielding | UTP |
| Cable Type | BulkCat5e |
| Category Performance Application | Cat5e |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | Bare Wire |
| Connector 2 | Bare Wire |
| Connector Type | Bare Wire |
| Insulation Material | PO (Polyolefin) |
| Jacket Application | In-Wall Rated |
| Jacket Rating | CM Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DIEC 61156-5ISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120560302 |
| Certifications | CEProp 65REACHRoHSTAAUL Listed |
| Jacket Material | FRPVC (Flame Retardant Polyvinyl Chloride) |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat5e Keyed RJ45 Keystone Connector in Black
WP3458BK$6.49
6-Port Network Interface Module
AC1000$54.99
Cat5e RJ45 Keystone Connector in Orange
WP3450OR$4.49
Trio Combo Module with Cat5e Data
CO1156$109.99
8 Port Cat5e Network Interface Module
AC1058$54.99
Cat5e Quick Connect RJ45 Keystone Insert in Green
WP3475GN$3.99
Cat5e Quick Connect RJ45 Keystone Insert in Brown
WP3475BR$3.99
Cat5e RJ45 Keystone Connector in Gray
WP3450GY$4.49
6-Port Cat5e Network Interface Module
AC1012$59.99
Cat5e Quick Connect RJ45 Keystone Insert in Black
WP3475BK$3.99
Cat5e QuickConnect RJ45 Keystone Insert in White - 100 Pack
WP3475WH100$299.99
Cat5e Quick Connect RJ45 Keystone Insert in Ivory
WP3475IV$3.99
Questions about this part
Is the C2G56030 suitable for in-wall installations?
Yes, this Cat5e cable features a CM-rated FRPVC jacket specifically designed for in-wall applications.
What terminations are required for this bulk cable?
This cable uses stranded copper conductors designed for bare wire termination.
What is the difference between this and shielded Cat5e?
This is an unshielded (UTP) cable; for environments with high EMI potential, C2G offers shielded F/UTP alternatives.
Does this cable meet TAA compliance requirements?
Yes, the C2G56030 is TAA compliant and carries UL, CE, REACH, and RoHS certifications.
What accessories are compatible with this Cat5e cable?
This cable can be terminated with various components, including WP3450 series Keystone connectors and AC1012 6-Port Network Interface Modules.
