1000ft (304.8m) TAA-Compliant Cat5e Bulk Unshielded (UTP) Ethernet Network Cable with Solid Conductors-Riser CMR-Rated - Blue

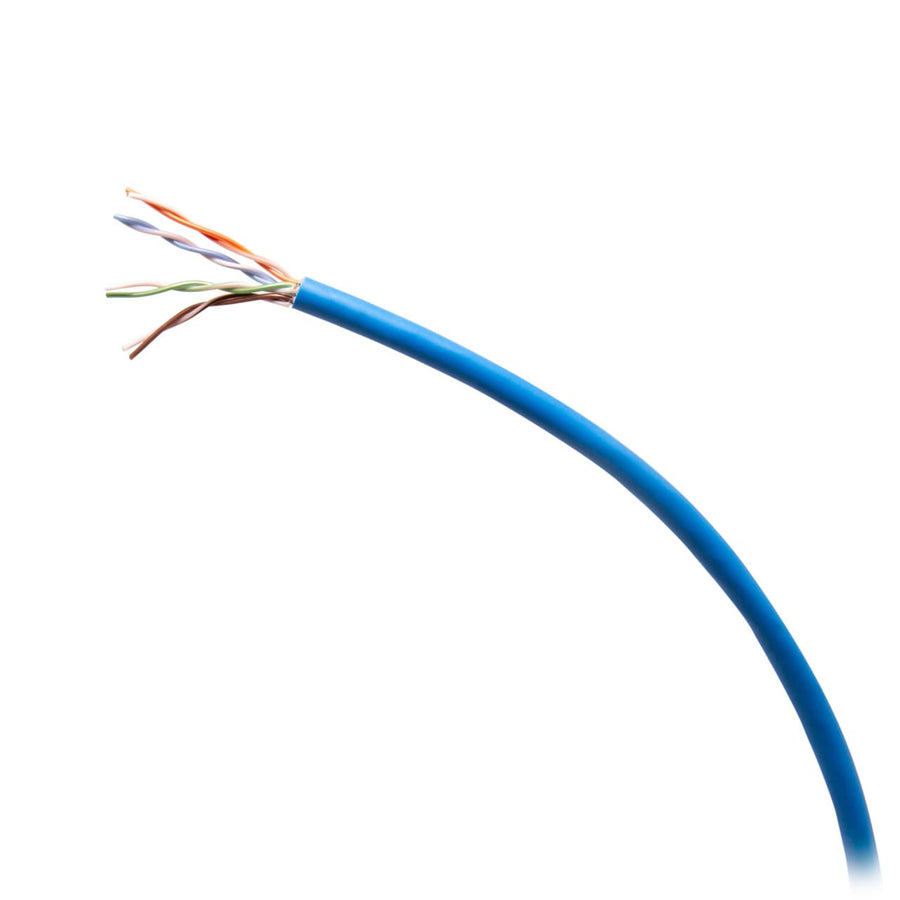

1000ft spool of blue Cat5e bulk UTP cable with solid copper conductors and CMR riser rating
The C2G C2G56028 is a 1000 ft (304.8 m) bulk Cat5e Ethernet network cable designed for vertical riser applications. This unshielded (UTP) cable features solid copper conductors with a 24 AWG wire gauge, providing reliable signal transmission for standard LAN installations. The jacket is constructed from Flame Retardant Polyvinyl Chloride (FRPVC) and carries a CMR (Riser) rating, making it suitable for use in building riser shafts. This specific SKU is Blue and has a cable diameter of 0.19 in (4.8 mm) with a minimum bend radius of 0.76 in (19.2 mm). It is TAA compliant and UL listed, ensuring it meets necessary regulatory standards for professional infrastructure. This bulk cable is intended for use by installers terminating connections with bare wire into modular jacks or connectors. For high-EMI environments, consider C2G's shielded F/UTP options, but for most standard LAN needs, this UTP solution is sufficient.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 0.76 in (19.2 mm) |
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 1000 ft (304.8 m) |
| Operating Temperature | -4° - 140°F (-20° - 60°C) |
| Operating Temperature Max | 140 Fahrenheit (60 Celsius) |
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Product Weight | 20.2 lbs (9.2 kg) |
| Shipping Weight | 20.19 lbs (9.2 kg) |
All other specifications 23
| Storage Temperature Max | 167 Fahrenheit (75 Celsius) |
| Storage Temperature Min | 68 Fahrenheit (20 Celsius) |
| Voltage | 300 V |
| Wire Gauge | 24 |
| Cable Shielding | UTP |
| Cable Type | BulkCat5e |
| Category Performance Application | Cat5e |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Solid |
| Connector 1 | Bare Wire |
| Connector 2 | Bare Wire |
| Connector Type | Bare Wire |
| Insulation Material | PO (Polyolefin) |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DIEC 61156-5ISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120560289 |
| Certifications | CEProp 65REACHRoHSTAAUL Listed |
| Jacket Material | FRPVC (Flame Retardant Polyvinyl Chloride) |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat5e Keyed RJ45 Keystone Connector in Black
WP3458BK$6.49
6-Port Network Interface Module
AC1000$54.99
Cat5e RJ45 Keystone Connector in Orange
WP3450OR$4.49
Trio Combo Module with Cat5e Data
CO1156$109.99
8 Port Cat5e Network Interface Module
AC1058$54.99
Cat5e Quick Connect RJ45 Keystone Insert in Green
WP3475GN$3.99
Cat5e Quick Connect RJ45 Keystone Insert in Brown
WP3475BR$3.99
Cat5e RJ45 Keystone Connector in Gray
WP3450GY$4.49
6-Port Cat5e Network Interface Module
AC1012$59.99
Cat5e Quick Connect RJ45 Keystone Insert in Black
WP3475BK$3.99
Cat5e QuickConnect RJ45 Keystone Insert in White - 100 Pack
WP3475WH100$299.99
Cat5e Quick Connect RJ45 Keystone Insert in Ivory
WP3475IV$3.99
Questions about this part
Is C2G C2G56028 suitable for riser installations?
Yes, this cable features a CMR rating, which is specifically designed for vertical riser applications in building construction.
What type of terminations can I use with this Cat5e cable?
This is bare wire bulk cable designed for termination into RJ45 keystones or network interface modules, such as the AC1012 or AC1058 series.
Does this cable meet TAA compliance requirements?
Yes, the C2G56028 is TAA compliant, making it suitable for projects with specific procurement requirements.
What is the conductor material and gauge for this bulk cable?
This cable uses 24 AWG solid copper conductors to ensure consistent signal transmission for network applications.
What is the maximum operating temperature for this cable?
The cable is rated for operation in temperatures ranging from -4° to 140°F (-20° to 60°C).
