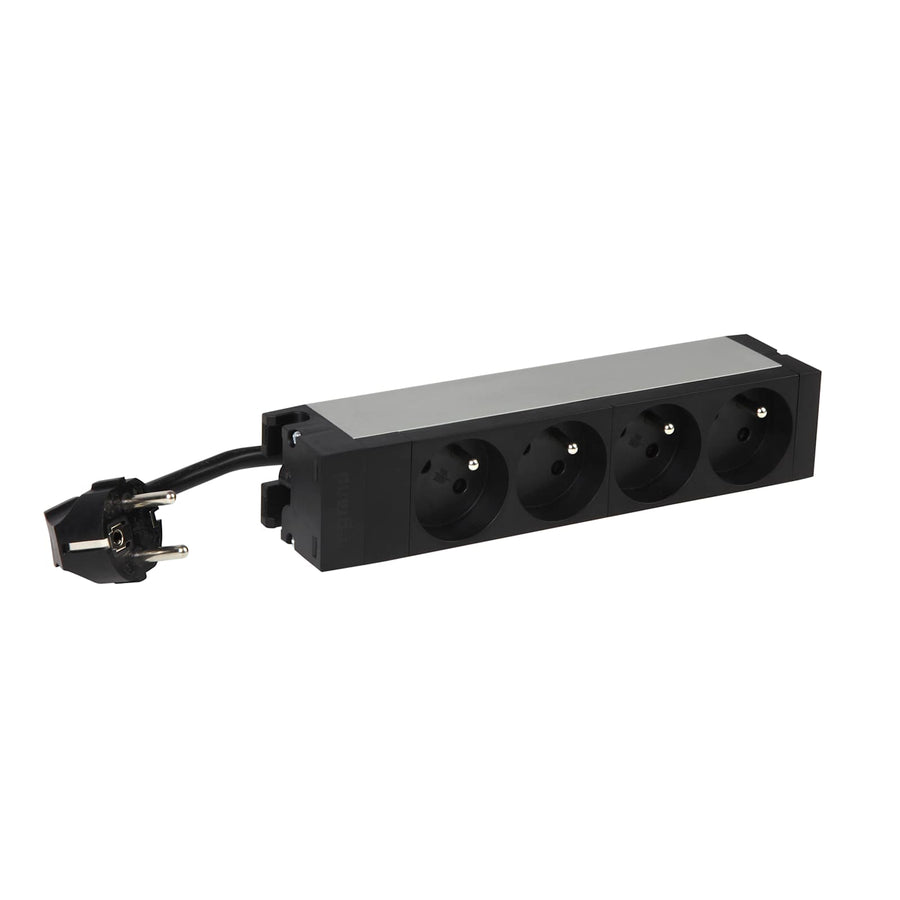

10 Inch PDU LCS³ - 4 Outlets - French Standard
10-inch 1RU power distribution unit with 4 French standard outlets and 16A capacity, designed for international server cabinets
The Middle Atlantic 646800 is a 10-inch LCS³ Power Distribution Unit (PDU) specifically engineered for international power infrastructure. Built with a rigid, lightweight anodized aluminum 1RU chassis, this PDU is designed for integration into server cabinets, patch panels, and edge server rooms. It features 4 French standard outlets that are inclined at 55° to facilitate easier cable management and maintenance in tight spaces. This unit is supplied with a 1m power cord that includes a 16 A 2P+E French/German plug. For versatile installation, the 646800 supports multi-mount configurations, allowing it to be installed vertically by reversing the brackets. Additionally, this 10" PDU is compatible with the AS3LD Tempo™ Flat Panel Wall Mount System. Operating within a temperature range of 23° to 104°F (5° to 40°C), it provides 3700 W of power at 230 VAC. This PDU is CE certified for international use.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 200-240 V |
| Amps | 16 Amp |
| Depth | 2.1 in (5.3 cm) |
| Height | 1.7 in (4.3 cm) |
| Operating Temperature | 23° - 104°F (-5° - 40°C) |
| Product Weight | 2.2 lbs (1 kg) |
| Rack Units | 1 RU |
| Storage Temperature | 23° to 158°F (-5 to 70°C) |
All other specifications 11
| Volts AC | 230 VAC |
| Watts | 3700 W |
| Width | 9.3 in (23.6 cm) |
| Available Internationally | Yes |
| Circuit Breaker | No |
| Color | Black and Silver |
| Multi-Mount | Yes |
| Number of Circuits | 1 |
| Outlet Count | 4 |
| Receptacle Type | French Standard |
| Certifications | CE |
Resources
Questions about this part
Will this PDU fit in my existing rack or wall mount?
The 646800 is a 1RU 10-inch PDU that installs perfectly into the AS3LD Tempo™ Flat Panel Wall Mount System and supports multi-mount vertical installation.
What type of plugs are compatible with the 646800?
This PDU features 4 French standard outlets inclined at 55°, which are ideal for managing cables in compact international server cabinets.
What are the electrical specifications for this PDU?
The unit operates at 230 VAC with a 16 Amp capacity and provides a total of 3700 W across its 4 outlets.
What is the power cord configuration?
Each 646800 unit includes a 1m power cord equipped with a 16 A 2P+E French/German plug.
Which certifications does this PDU hold?
This Legrand LCS³ PDU is CE certified for use in international power environments.
