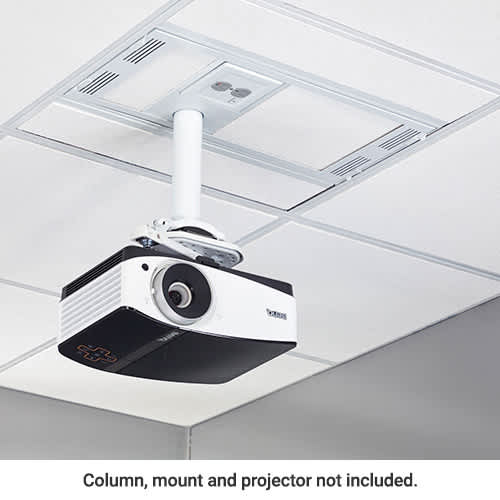

1' x 2' Above Suspended Ceiling Storage Box and Column Drop with 2-Gang Filter & Surge
1' x 2' ceiling storage box with integrated surge/filter power and column drop support
The Chief CMS491CP2 provides a professional way to conceal AV equipment above 1' x 2' (30.48 x 60.33 cm) ceiling tiles. This storage solution is specifically designed to accommodate a column drop, allowing for a clean mounting solution for projectors within the same tile grid. The unit features a drop carriage door that improves accessibility and serviceability by providing full access to the stored equipment. For power management, this model includes a high-performance, dual-gang housing with a two-gang receptacle outlet featuring non-sacrificial multi-stage filtration and surge protection. This setup protects sensitive AV components from high-frequency noise and power disturbances. The detachable power housing allows electricians to pre-install the electrical components on-site before the box is assembled in the ceiling. The interior includes built-in ventilation and an AV tray that supports a variety of components, with a total weight capacity of 100 lbs (45.4 kg). This TAA compliant and UL Listed assembly is ideal for classrooms and conference rooms.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Ceiling Tile Size | 1' x 2' (30.48 x 60.33 cm) |
| Depth | 23.67 in (60.1 cm) |
| Height | 8 in (20.3 cm) |
| Max Equipment Size | 7.61" x 19.25" x 12" (193 x 489 x 305 mm) |
| Overall Dimensions | 8" x 12.97" x 23.67" (203 x 329 x 601 mm) |
| Shipping Weight | 32.87 lbs (14.9 kg) |
| Weight Capacity | 100 lbs (45.4 kg) |
| Width | 12.97 in (32.9 cm) |
All other specifications 10
| Accessory Type | Component StoragePowerSuspended Ceiling |
| Accommodate Column Drop | Yes |
| Application | Ceiling |
| Color | White |
| Includes Power Outlet | Yes |
| Receptacle Type | Two Surge and Filter |
| Special Features | Surge and Filtering |
| TAA Compliant | Yes |
| UPC | 841872166780 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Questions about this part
Will the CMS491CP2 fit my ceiling tiles?
Yes, this storage box is designed to fit within 1' x 2' (30.48 x 60.33 cm) ceiling tiles.
What do I need to buy to complete a projector installation?
The column is not included with this SKU and must be purchased separately to facilitate the projector mounting.
What is the maximum size of equipment I can store inside?
The internal space accommodates equipment up to 7.61" x 19.25" x 12" (193 x 489 x 305 mm).
Does this unit include extra shelving?
It ships with 1 shelf; if you require a 2nd shelf, you must purchase the CMSUNV1 separately.
How do I manage the electrical installation?
The detachable power housing can be pre-installed by an electrician on-site and then assembled to the storage box at a later time.
