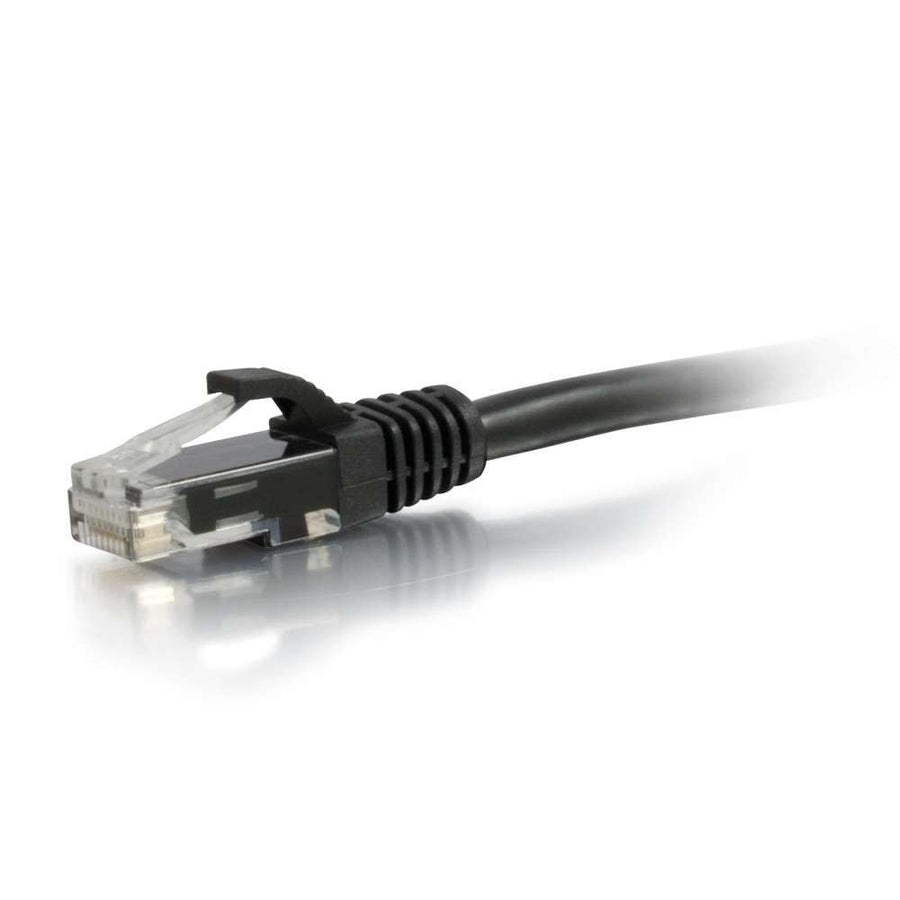

0.5ft (0.15m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Black
0.5ft (0.2m) Cat6a Snagless UTP Ethernet Patch Cable, Black finish, for 10GBase-T high-density applications
The CG00976 is a 0.5ft (0.2m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable designed for high-density environments. This cable supports 10 Gigabit data transmission over a 4 pair copper cable, facilitating connections for distances up to 100 meters. It is constructed with 26AWG stranded bare copper conductors and HDPE insulation, ensuring reliable performance for 10GBase-T ports. This specific SKU is finished in black and features a snagless, booted connector design to protect the RJ-45 connections during installation. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, providing improved alien crosstalk performance for switches, routers, and hubs. This short-length patch cable is ideal for rapid cross-connection within server racks or network cabinets where space is limited.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 0.5 ft (0.2 m) |
| Shield Type | UTP |
| Shipping Weight | 0.04 lbs (0 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120009764 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
0.5ft (0.15m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
CG00974$10.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
Questions about this part
Will this Cat6a cable work for 10 Gigabit networking?
Yes, the CG00976 supports 10GBase-T data transmission and is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements.
What is the difference between this and the CG00974?
The CG00976 is the black version of this 0.5ft snagless cable, whereas the CG00974 is the blue variant.
Is this cable suitable for high-density patch panels?
Yes, the snagless booted design is specifically intended for high-density switch and patch panel applications to prevent accidental disconnection.
What materials are used in the construction of this cable?
This cable features 26AWG stranded bare copper conductors, HDPE insulation, and a PVC jacket and connector hood.
Is this cable TAA compliant?
No, this specific SKU does not hold TAA compliance.
