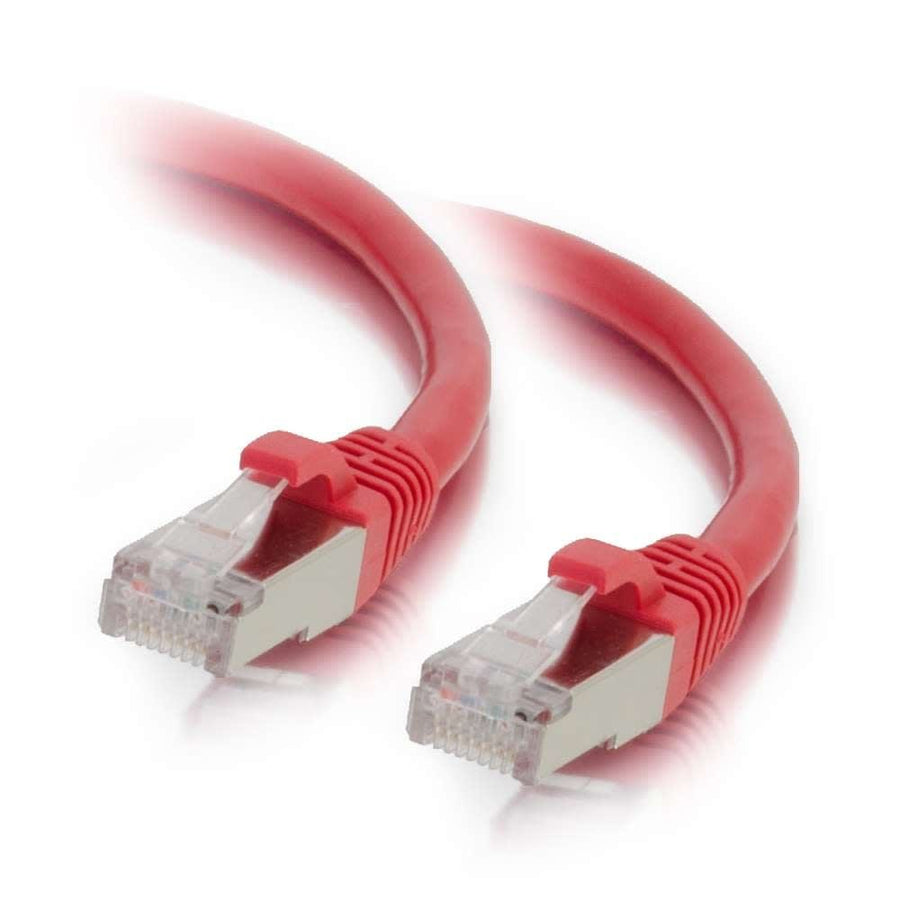

0.5ft (0.15m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Red
0.5ft Red Cat6 Shielded STP patch cable with snagless boots and T568B wiring for high-speed, low-interference networking
The CG00983 is a 0.5 ft (0.2 m) red Cat6 shielded STP patch cable designed to protect high-speed networks from electromagnetic interference and noise. This snagless patch cable utilizes stranded copper conductors with a 26 AWG wire gauge to maintain high bandwidth performance. For professional installations, the cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements. The construction features individual pairs bonded together to maintain consistent twist-spacing right up to the RJ-45 male termination points. This design is engineered to minimize Near-End Crosstalk (NEXT) levels and reduce both impedance and structural return loss (SRL). Each cable features a PVC jacket and PVC connector hoods with a snagless, booted design for physical protection. This specific red cable is part of a wider series of Cat6 Shielded Patch Cables available in various lengths and colors to facilitate easy color-coding within a structured cabling system.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 0.5 ft (0.2 m) |
| Shield Type | STP |
| Shipping Weight | 0.05 lbs (0 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120009832 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
8-Port Switch: 4-Port Network, 4-Port PoE+
DA8400WH$149.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Surface Mount Box
WP3506WH$6.99
USB-C® to Ethernet Network Adapter Converter
CG29826$43.99
16-Port Blank Keystone/Multimedia Patch Panel
CG03858$29.99
Surface Mount Box 1-Port in White
WP3501WH$1.99
32-Port Blank Keystone/Multimedia Patch Panel
CG03860$42.99
1-Gang 2-Port Wall Plate in White
WP3402WH$1.79
Cable Management Strap - 12 Piece
TW12$25.20
Questions about this part
Will this CG00983 cable fit my 24-Port Cat6 110-Type Patch Panel?
Yes, this cable is compatible with the CG37199 24-Port Cat6 110-Type Patch Panel and other structured cabling components.
What is the wiring scheme for the CG00983 patch cable?
This Cat6 cable uses the T568B wiring scheme and features 26 AWG stranded copper conductors.
What is the maximum operating temperature for this red Cat6 cable?
The cable is rated for operation in temperatures up to 75°C.
Is the CG00983 suitable for high-interference environments?
Yes, the STP (Shielded Twisted Pair) design helps protect networks from electromagnetic interference and reduces structural return loss.
Does this cable include a snagless boot?
Yes, the RJ-45 male connectors are equipped with snagless, booted PVC hoods to prevent accidental disconnection and protect the strain relief.
