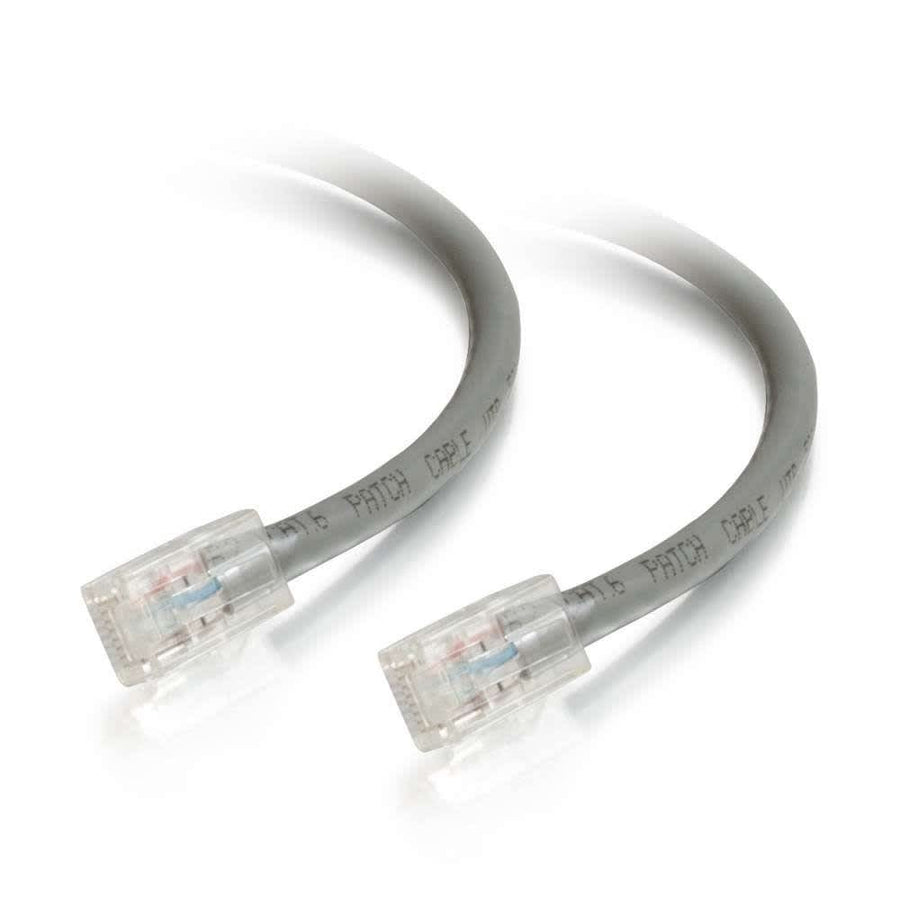

0.5ft (0.15m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Gray
0.5 ft Gray Cat6 UTP patch cable with non-booted RJ-45 connectors for high-bandwidth network distribution
The C2G CG00961 is a 0.5 ft (0.2 m) Cat6 Unshielded Twisted Pair (UTP) Ethernet patch cable designed for bandwidth-intensive voice, data, or video distribution in fast Ethernet and Gigabit computer networks. This gray cable features stranded copper conductors and a PVC jacket with a 0.24 in (6 mm) diameter. It utilizes a T568B wiring scheme and is built to meet all Cat6 TIA/EIA standards, which helps to drastically reduce impedance and structural return loss (SRL). Each individual pair is bonded together to maintain twist-spacing through the termination point, a design that minimizes Near-End Crosstalk (NEXT) levels. This non-booted cable is suitable for high-density environments where space is limited. Technical performance includes a maximum propagation delay of 545ns/100m, a delay skew of 45ns/100m, a capacitance of 5600pf/100m, and an impedance of 100 ohms. This product is rated for temperatures up to 75°C.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 0.5 ft (0.2 m) |
| Shield Type | UTP |
| Shipping Weight | 0.02 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120009610 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
0.5ft (0.15m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Blue
CG00962$4.99
8-Port Switch: 4-Port Network, 4-Port PoE+
DA8400WH$149.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Surface Mount Box
WP3506WH$6.99
USB-C® to Ethernet Network Adapter Converter
CG29826$43.99
16-Port Blank Keystone/Multimedia Patch Panel
CG03858$29.99
Surface Mount Box 1-Port in White
WP3501WH$1.99
32-Port Blank Keystone/Multimedia Patch Panel
CG03860$42.99
1-Gang 2-Port Wall Plate in White
WP3402WH$1.79
Cable Management Strap - 12 Piece
TW12$25.20
Questions about this part
Will this Cat6 cable work with my 24-port patch panel?
Yes, this cable is compatible with 110-type patch panels, such as the CG37199 24-Port Cat6 110-Type Patch Panel.
What is the maximum temperature rating for this patch cable?
This C2G patch cable is rated for operation in temperatures up to 75°C.
Is this cable suitable for high-density switch connections?
With its non-booted design and 0.24 in (6 mm) diameter, this cable is designed for efficient use in high-density environments like 8-Port Network/PoE+ switches.
Does this cable support Gigabit Ethernet speeds?
Yes, this Cat6 cable is designed for Gigabit computer networks and meets all TIA/EIA Cat6 standards for high-speed data distribution.
What is the difference between this and the CG00962?
The CG00962 is a color-variant sibling of this cable, specifically available in Blue rather than Gray.
