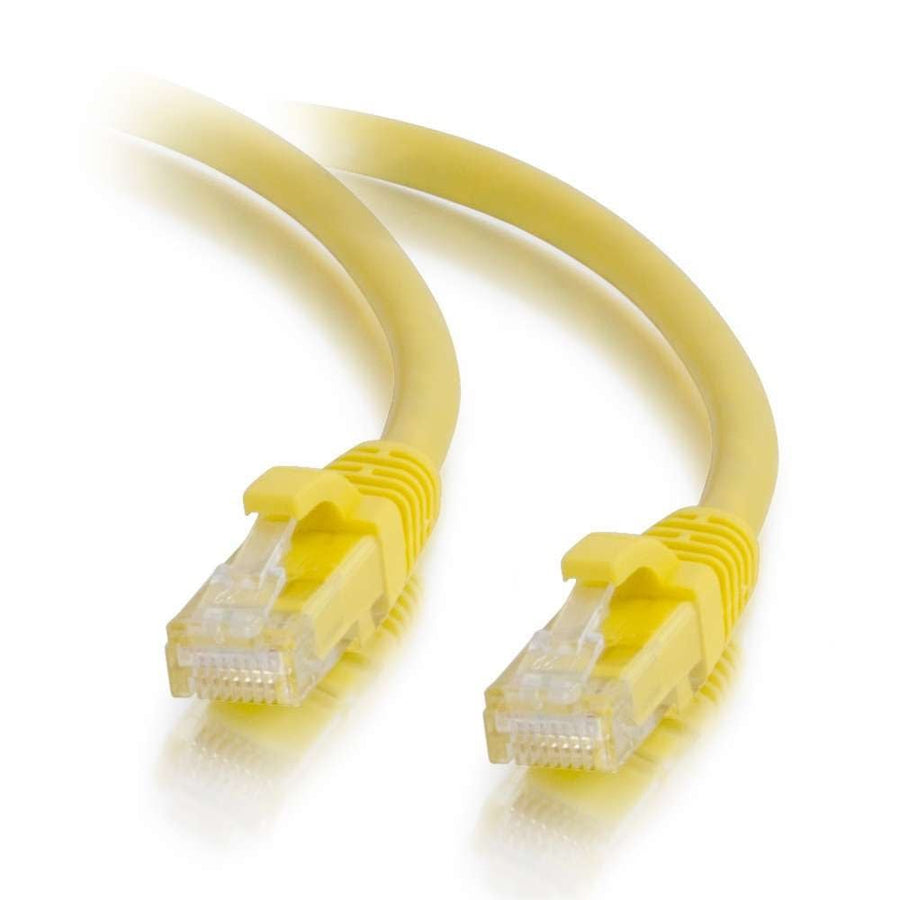

0.5ft (0.15m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Yellow
Yellow Cat5e snagless UTP patch cable, 0.5ft (0.2m) length, unshielded stranded copper construction
The C2G CG00936 is a 0.5ft (0.2m) Cat5e snagless unshielded UTP Ethernet network patch cable designed for bandwidth-intensive voice, data, or video distribution applications. This cable features a T568B wiring scheme and utilizes stranded copper conductors to minimize Near-End Crosstalk (NEXT) levels. The construction includes individual pairs bonded together to maintain twist-spacing through to the termination point, which helps reduce impedance and structural return loss (SRL). This specific SKU is yellow, allowing installers to use color-coding for organized network management. Each cable is fitted with booted, snagless RJ-45 male connectors made with PVC hood material to protect the clips during installation and provide added strain relief. This unshielded twisted pair (UTP) cable has a 0.21 in (5.3 mm) diameter and supports a bandwidth of 350 mHz. This series is available in various colors and lengths up to 150ft to suit diverse infrastructure requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 350 mHz |
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 0.5 ft (0.2 m) |
| Shield Type | UTP |
| Shipping Weight | 0.03 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
All other specifications 15
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120009368 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6-Port Surface Mount Box
WP3506WH$6.99
USB-C® to Ethernet Network Adapter Converter
CG29826$43.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
Cable Management Strap - 12 Piece
TW12$25.20
8-Port Switch: 4-Port Network, 4-Port PoE+
DA8400WH$149.99
Surface Mount Box 1-Port in White
WP3501WH$1.99
16-Port Blank Keystone/Multimedia Patch Panel
CG03858$29.99
32-Port Blank Keystone/Multimedia Patch Panel
CG03860$42.99
1-Gang 2-Port Wall Plate in White
WP3402WH$1.79
0.5ft (0.15m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Black
CG00933$4.99
Questions about this part
Will this CG00936 cable work for high-bandwidth video distribution?
Yes, the CG00936 is designed for bandwidth-intensive applications, including video distribution, supporting a bandwidth of 350 mHz.
What is the difference between the snagless boot and a standard RJ45?
The snagless boot on the CG00936 protects the connector clips from snapping during plugging or unplugging and provides additional strain relief.
Is the CG00936 compatible with T568B wiring standards?
Yes, this patch cable is built specifically to the T568B wiring scheme for standard network connectivity.
Can I use this cable to color-code my network rack?
Yes, this SKU is yellow, and the Cat5e Snagless series is available in 10 different colors to assist with network organization.
What accessories are compatible with this patch cable?
The CG00936 can be used with various items including the WP3506WH 6-Port Surface Mount Box or the CG37199 24-Port Cat6 Patch Panel.
