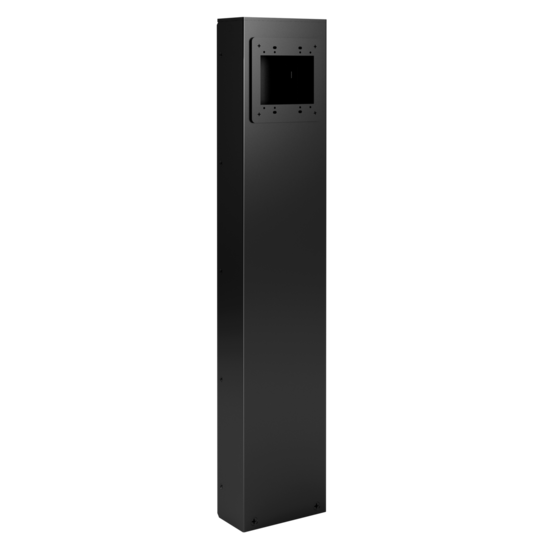

XPP2G30D-BK Outdoor Power Pedestal with Two Gang Device Plate with Internal Divider in Black
Black outdoor power pedestal with a 2-gang device plate and an internal divider for separating power and low voltage
The Wiremold XPP2G30D-BK is a durable outdoor power pedestal designed for high amperage applications ranging from 15A to 60A. This 30" unit features a 2-gang device plate with an integrated internal divider, which allows installers to run low voltage lines alongside power within the same pedestal. Constructed from sheet metal with outdoor-rated paint, the assembly is built to withstand harsh environments and weather conditions. This specific model is provided without a cover. When installing, note that 15-20A devices require weather-resistant ratings and must be used with an in-use cover, while 30-60A devices require a watertight rating. This black finish pedestal is cULus listed for professional installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 34" x 11.5" x 7.5" (863.6 x 292.1 x 190.5 mm) |
| Color | Black |
| Cover Style | No Cover |
| Divided | Yes |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Questions about this part
Can I run low voltage and power in this pedestal?
Yes. The internal divider allows you to safely run low voltage alongside power within this 2-gang device plate.
Do I need specific covers for this pedestal?
If using 15-20A devices, they must be weather-resistant and paired with an in-use cover. For 30-60A devices, you must use watertight components.
What else do I need to purchase for installation?
This pedestal does not include devices. You will need to purchase the appropriate 15-60A rated devices separately.
Can this be used for food trucks?
Yes, this pedestal is designed for high amperage applications (15-60A) and is suitable for food trucks and outdoor events.
Are there other color options?
The XPP2G30D-BK is the black finish version; the series also offers a silver option to match your site requirements.
