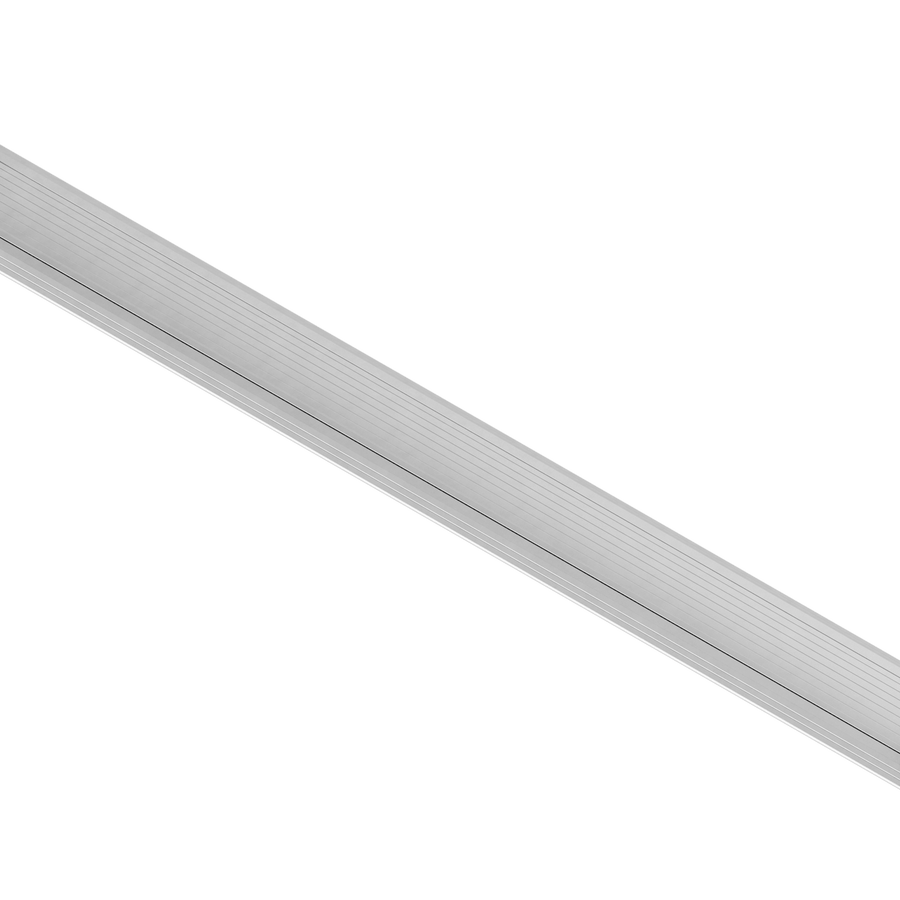

XPO3E-SV 3-Foot Express On-Floor Extender
3-foot floor raceway extender for power and connectivity, 0.88 in (2.2 cm) height, silver finish
The XPO3E-SV is a 3-foot (0.9 m) Express On-Floor Extender designed to bridge gaps in power and connectivity across open floor areas. This silver-finished raceway provides a low-profile solution for offices and conference rooms where core drilling or the installation of raised flooring is not feasible. This unit functions as an extension to the Express On-Floor Kit, allowing installers to route cabling safely over floor surfaces. The profile stands 0.88 in (2.2 cm) high and is 7.125 in wide. For complete cornering or full-length coverage, this extender is compatible with the XPO6K-SV Express On-Floor Kit and the XPO90-SV Silver 90-Degree Express On-Floor Corner.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Height | 0.88 in (2.2 cm) |
| Length | 3 ft (0.9 m) |
| Width | 7.125 in |
| Color | Silver |
| TAA Compliant | Yes |
| Track Type | Raceway |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
What do I need to purchase to use the XPO3E-SV?
This is an extender that works with the XPO6K-SV Express On-Floor Kit. You can also use the XPO90-SV Silver 90-Degree Express On-Floor Corner for turns.
Will this work as a standalone raceway?
No, this is an extender designed to work in conjunction with the Express On-Floor Kit to extend existing power and data distribution.
How high will the raceway sit off the floor?
The XPO3E-SV has a height of 0.88 in (2.2 cm) to provide a low-profile path for cables across the floor.
Is the XPO3E-SV TAA compliant?
Yes, this product is TAA Compliant and listed with TAA certification.
Where should I find installation instructions for this product?
Detailed installation guidance can be found in the Connectrac Express Kit Raceway Installation Instructions PDF.
