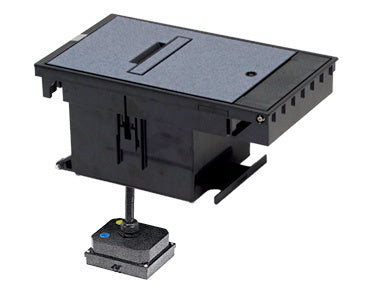

XB814CL630BK Exterior Box Cover Assembly with a Single NEMA L6-30R Locking Receptacle in Gray
Gray outdoor box cover assembly with a prewired 30A L6-30R 240V NEMA 6P locking receptacle
The Wiremold XB814CL630GY is a gray exterior box cover assembly designed for outdoor power applications. It comes prewired with one 30A L6-30R 240V corrosion-resistant receptacle. This assembly is constructed for outdoor use, providing a solution that keeps receptacles and connections dry even when the unit is submerged. It is UL listed to UL50E Type 6P (NEMA 6P) and IP68 requirements while in use, and is ADA compliant. When using this assembly, the cover must remain closed to maintain its protection, and installers must use only molded plug and cord assemblies rated for outdoor use. Additionally, the maximum allowable plug length at the end of the cord is 3'' (76mm). Note that all ground box electrical circuits must be protected by an upstream Ground Fault Circuit Interrupter (GFCI).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Overall Dimensions | 14.4" x 8.4" x 8.2" (365.8 x 213.4 x 208.3 mm) |
| Color | Gray |
| Receptacle Type | L6-30R |
| TAA Compliant | No |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
What type of receptacle is installed in the XB814CL630GY?
This assembly includes a single 30A L6-30R 240V NEMA 6P locking receptacle that is prewired for installation.
What is the maximum cord length allowed for this outdoor box?
The maximum plug length allowed at the end of the cord is 3'' (76mm) for this specific assembly.
Is the XB814CL630GY rated for submersion?
Yes, the construction is IP68 rated, which keeps the receptacles and connections dry even when the unit is submerged.
What electrical protection is required for this ground box?
All ground box electrical circuits must be protected by a Ground Fault Circuit Interrupter (GFCI) installed upstream from the box.
What documentation is available for submittals?
Installers can access the Outdoor Ground Box Installation Instructions (PDF) or the Outdoor Ground Box Cutsheet (PDF) for technical details.
