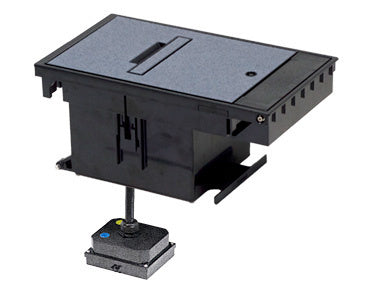

XB814CL530BK Exterior Box Cover Assembly with a Single NEMA L5-30R Locking Receptacle in Gray
Outdoor ground box cover assembly with a single 30A L5-30R locking receptacle in gray, rated for submerged conditions
The XB814CL530GY is a Wiremold Outdoor Ground Box cover assembly featuring a single 30A L5-30R 120V corrosion-resistant duplex receptacle. This gray unit is engineered for outdoor use, providing protection that meets IP68 requirements and UL50E Type 6P (NEMA 6P) standards while in use. The construction is designed to keep internal connections and receptacles dry even when the unit is submerged. This assembly is ADA compliant and includes cUL and RoHS certifications. Please note that all electrical circuits for this ground box must be protected by an upstream Ground Fault Circuit Interrupter. To maintain the integrity of the seal, the cover must remain closed during use, and only molded plug and cord assemblies rated for outdoor use should be utilized, with a maximum plug length of 3" (76mm) at the end of the cord.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Overall Dimensions | 14.4" x 8.4" x 8.2" (365.8 x 213.4 x 208.3 mm) |
| Color | Gray |
| Receptacle Type | L5-30R |
| TAA Compliant | No |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
Is the XB814CL530GY rated for wet locations?
Yes, this assembly is designed to keep connections dry even when submerged and meets IP68 requirements while in use.
What electrical protection is required for this ground box?
All electrical circuits for this ground box must be protected by a Ground Fault Circuit Interrupter (GFCI) located upstream from the box.
What are the requirements for the cord and plug used with this unit?
You must use molded plug and cord assemblies rated for outdoor use, with the maximum plug length at the end of the cord being 3" (76mm).
Does the XB814CL530GY come with a warranty?
This product carries a 1-year warranty from the date of installation or a 2-year warranty from the date of sale.
What documentation is available for submittals?
The product documentation includes the Outdoor Ground Box Installation Instructions (PDF) and the Outdoor Ground Box Cutsheet (PDF) for technical submittals.
