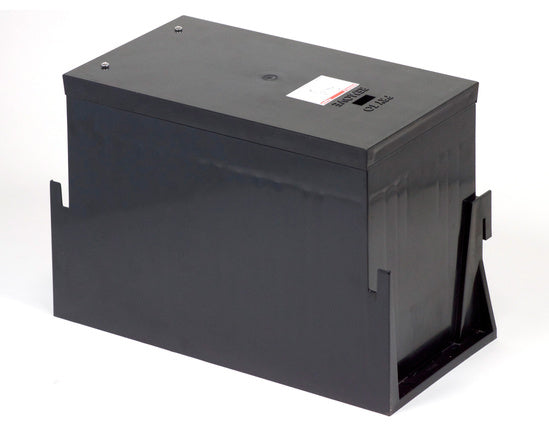

XB814 Outdoor Ground Box
Single service 2-gang outdoor ground box with an air pocket design to protect connections from water, snow, and ice
The Wiremold XB814 Outdoor Ground Box is a single service, 2-gang solution designed for durability in harsh outdoor environments. Constructed from UV and chemical-resistant F1 rated nonmetallic material, this box is engineered to withstand heavy use and various weather conditions. It features an innovative air pocket design that traps air to shield plugs, devices, and connections from moisture, ice, and snow. This box can accommodate up to two 1 1/4'' trade size PVC conduit feeds and is built to sit flush with finished surfaces like grass, dirt, or walkways. Because the design is modular, these boxes can be installed individually or ganged together to increase capacity and flexibility at a single location.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| TAA Compliant | No |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
Will the XB814 sit above the ground surface?
No, it is designed to be installed flush with the finished ground, including walkways, patios, grass, or dirt.
What do I need to purchase to complete this installation?
The XB814 is the ground box only and requires XB814 cover assemblies, which are sold separately.
Is this ground box rated for vehicle traffic?
Yes, it has an ANSI/SCTE 77 Tier 5 rating and can hold up to 5,000 lbs of load, accommodating occasional tractor or vehicular traffic.
Can I expand the capacity of this box?
Yes, the modular design allows you to gang multiple boxes together in the same location for greater service separation or capacity.
What are the conduit requirements for the XB814?
This 2-gang box can accept up to two 1 1/4'' trade size PVC conduit feeds.
