WSA42-4 WallSource™ Four Gang Box with Divider and Mounting Brackets
Four gang WallSource box with slide-in dividers for service separation and adjustable mounting brackets for varying wall thicknesses

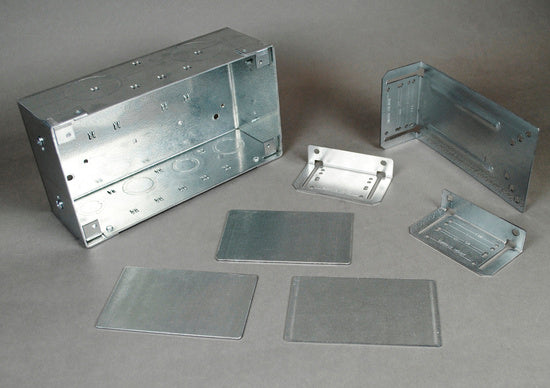

The WSA42-4 is a WallSource™ four gang box designed to manage multiple service types within a single installation. It features integrated slide-in dividers that allow an installer to physically separate power services from communication lines to prevent interference and maintain organization. To accommodate different installation environments, the kit includes adjustable mounting brackets that facilitate flush mounting in walls with thicknesses of 1/2", 5/8", 1", or 1 1/4" (12.7mm, 15.9mm, 25mm, and 32mm). This unit has a footprint of 9 3/16" L x 5" W x 3 1/4" D (233mm L x 127mm W x 83mm D) and includes 1/2", 3/4", 1", and 1 1/2" trade size KOs for flexible conduit entry. This TAA compliant component meets RoHS material restrictions.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 11.06" x 9.62" x 7.93" (281 x 244.4 x 201.5 mm) |
| Canadian Certified | No |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
| Color | Silver |
Questions about this part
How do I separate power and data in the WSA42-4?
The WSA42-4 includes slide-in dividers specifically designed to separate power and communication services within the box.
What wall thicknesses can the mounting brackets accommodate?
The adjustable mounting brackets allow for flush mounting in wall thicknesses of 1/2", 5/8", 1", and 1 1/4" (12.7mm, 15.9mm, 25mm, and 32mm).
What conduit sizes are compatible with this box?
The unit is manufactured with 1/2", 3/4", 1", and 1 1/2" trade size KOs.
Is there a Canadian version of this WallSource box?
Yes, for installations requiring Canadian certification, add a 'C' suffix to the part number, such as WSA42-4C.
What are the dimensions of the WSA42-4 box?
The box measures 9 3/16" L x 5" W x 3 1/4" D (233mm L x 127mm W x 83mm D).
